Circular to Square Section Column Connection Detail

Circular to Square Section Column Connection Detail

€5,00 EUR
€5,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

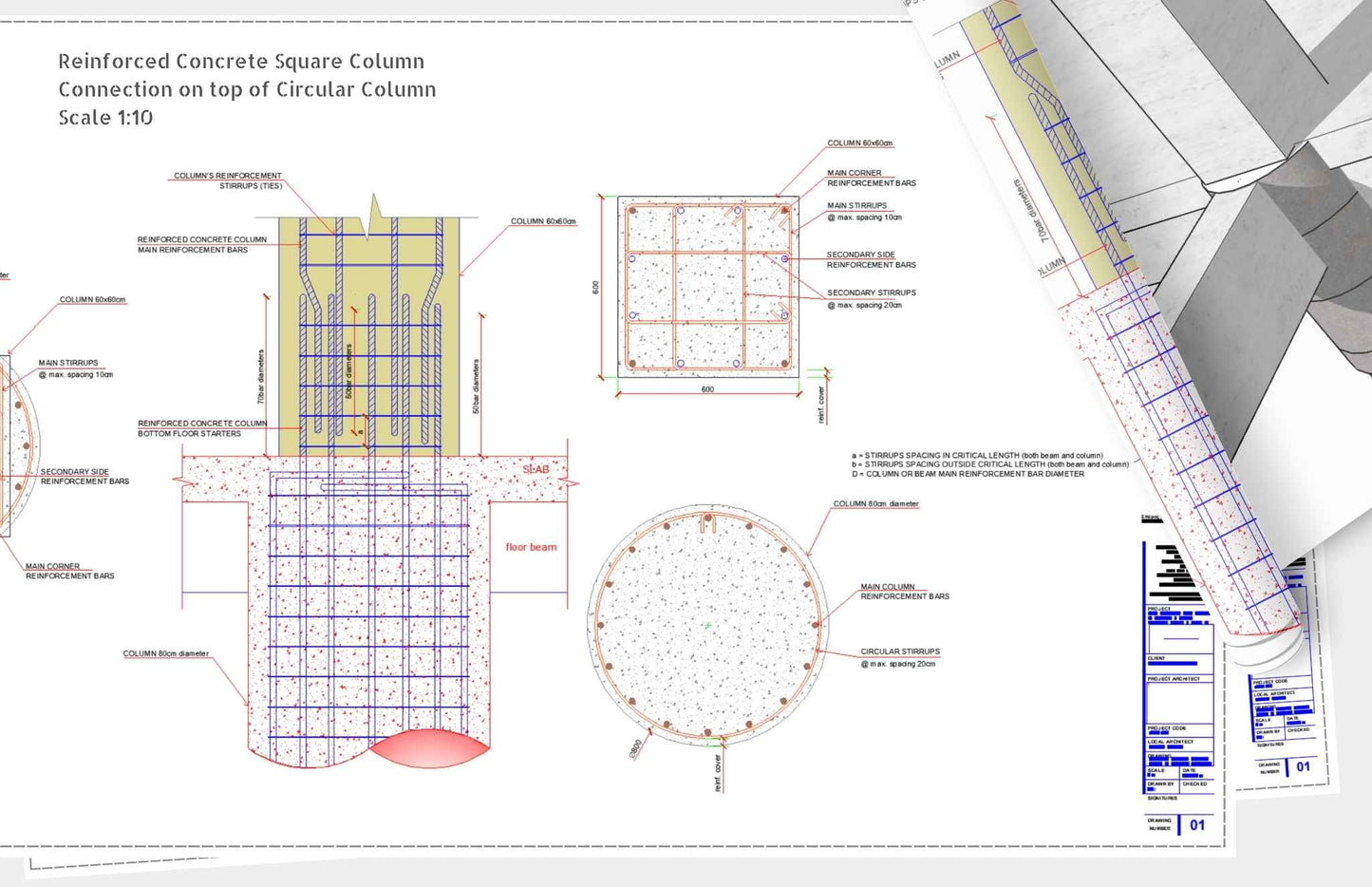

This CAD drawing provides a detailed illustration of the transition from a reinforced concrete circular column to a square section column, showcasing a critical floor-to-floor connection detail. Common in structural engineering, this design accounts for architectural requirements where column profiles change between floors. The drawing ensures load continuity and proper reinforcement alignment, streamlining your project designs and saving valuable drafting time.

Comprehensive Detailing

The top floor column needs to be inscribed in the lower floor column section outline, to achieve continuity for load transferring from top to bottom. The detail includes both circular and square column section profiles with clear reinforcement specifications. The top square column (60×60 cm) is inscribed within the lower circular column (80 cm diameter) for optimal load transfer. The lower column’s reinforcement bars are bent into a bottle-neck shape to connect seamlessly with the upper column’s reinforcements.

Use with any project

Designer can simply change sizing of both column with simple CAD commands, if needed, and include it with any project design. It can also be used as a standard generic structural detail for all projects as is.

Own this structural detail in your library resources and save time by integrating it into your structural projects with ease. Whether used as-is or customized, this template provides an easy solution for projects that require column profile transitions. A must-have for any structural engineer or designer’s CAD library.
