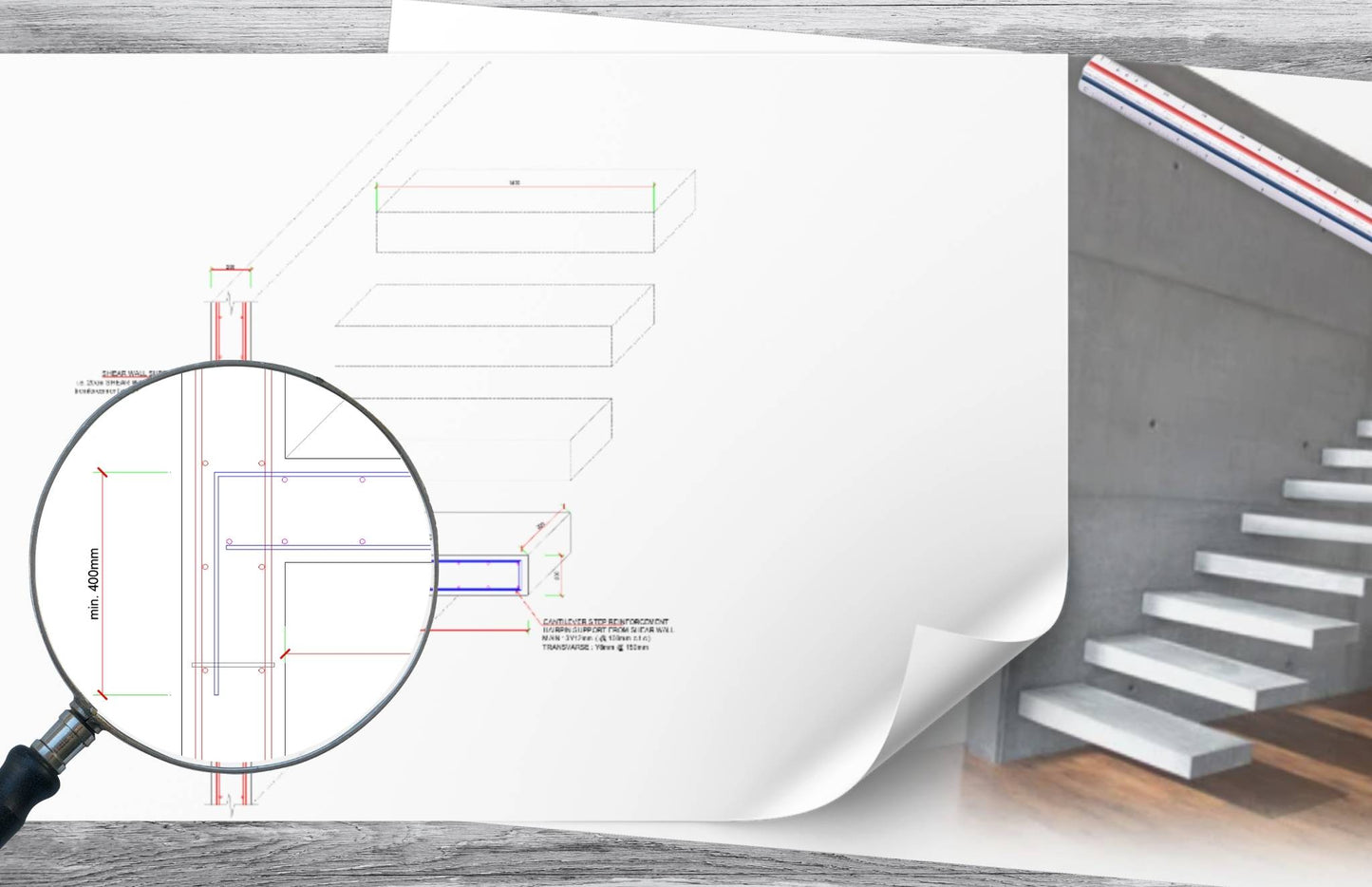

Cantilever Stairs Steps Cross Section Reinforcement Detail

Cantilever Stairs Steps Cross Section Reinforcement Detail

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

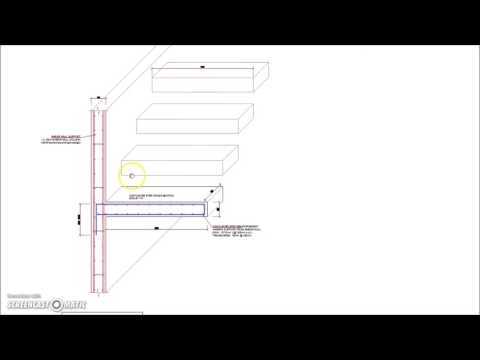

This is a precise detailed structural CAD drawing for a free standing floating cantilevered reinforced concrete staircase step. It can be imported into any RC design project and used as a standard reinforcement detailing for construction.

Each step is individually supported from the reinforced concrete shear wall with hair-pin shaped re-bars. Step reinforcement must be placed and poured in-situ together with the shear wall concreting. Actual steps can then be formed and poured at a later time.

Comprehensive Detailing

Detailed construction drawing for a free standing floating cantilevered staircase step, supported from a reinforced concrete shear wall or column.

It provides a clear and detailed depiction of the support reinforcement for each step, complete with all necessary reinforcement details.

  • main top & bottom reinforcement
  • hairpin main step reinforcement
  • transverse reinforcement
  • shear wall reinforcement
  • step reinforcement anchorage

Use with any project

Great floating staircase design with a clean and modern look. The drawing is designed to be adaptable to any reinforced concrete design project, ensuring that it can be used across a wide range of construction applications.
