Cantilever Concrete Beam Reinforcement Detail with adjucent continuous beam

Cantilever Concrete Beam Reinforcement Detail with adjucent continuous beam

€5,00 EUR
€5,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

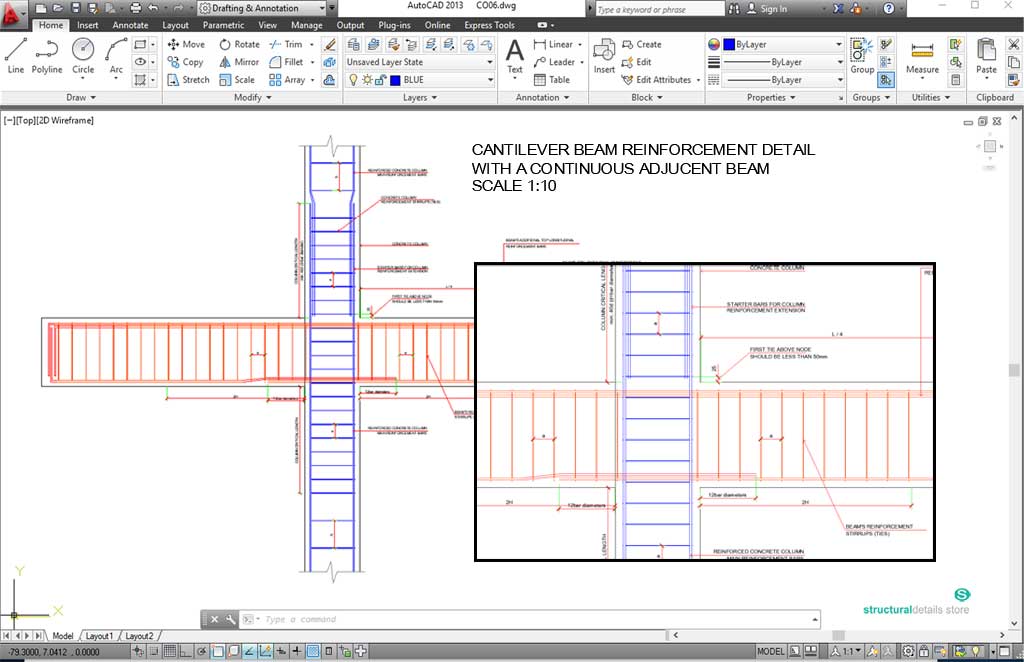

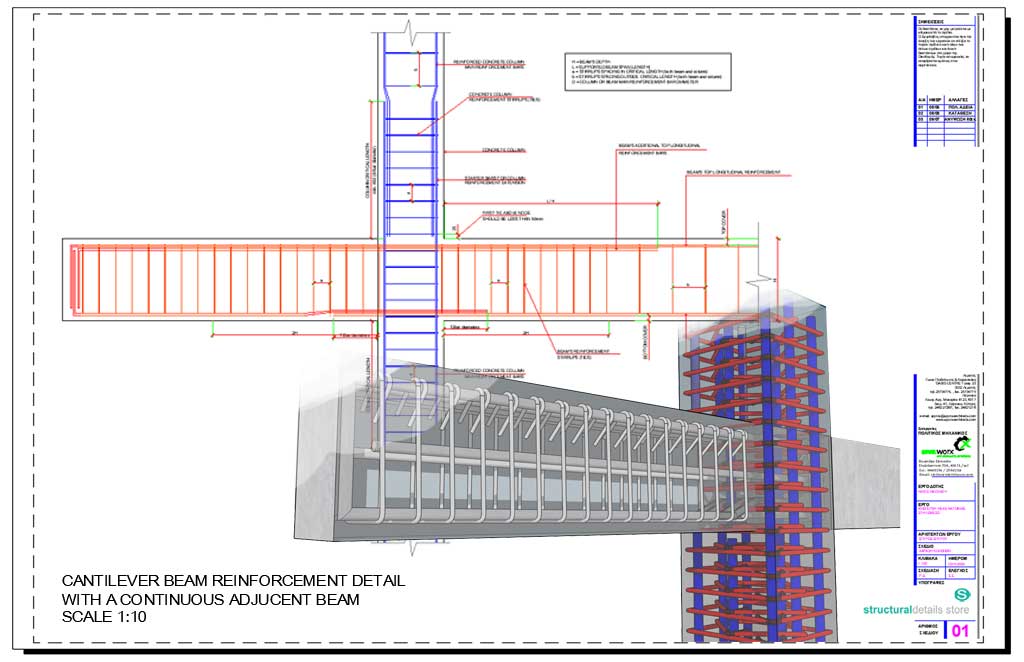

This is a CAD dwg drawing for a Cantilever Concrete Beam Reinforcement Detail with adjucent continuous beam. The cantilevered beam is supported from a concrete column with an adjucent continuous beam. Frame cross-section complete reinforcement detailing.

Full reinforcement detail

  • main top & bottom beam reinforcement
  • stirrups & ties
  • correct reinforcement anchorage length
  • beam-column joint detailing
  • hair pin “Π” shaped cantilever reinforcement

This is a must have typical CAD drawing detail. Drawing can be used as a typical construction reinforcement detail for a cantilever concrete beam support.
