Beam to Wide Flange Column Haunched Connection Detail

Beam to Wide Flange Column Haunched Connection Detail

€5,00 EUR
€5,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

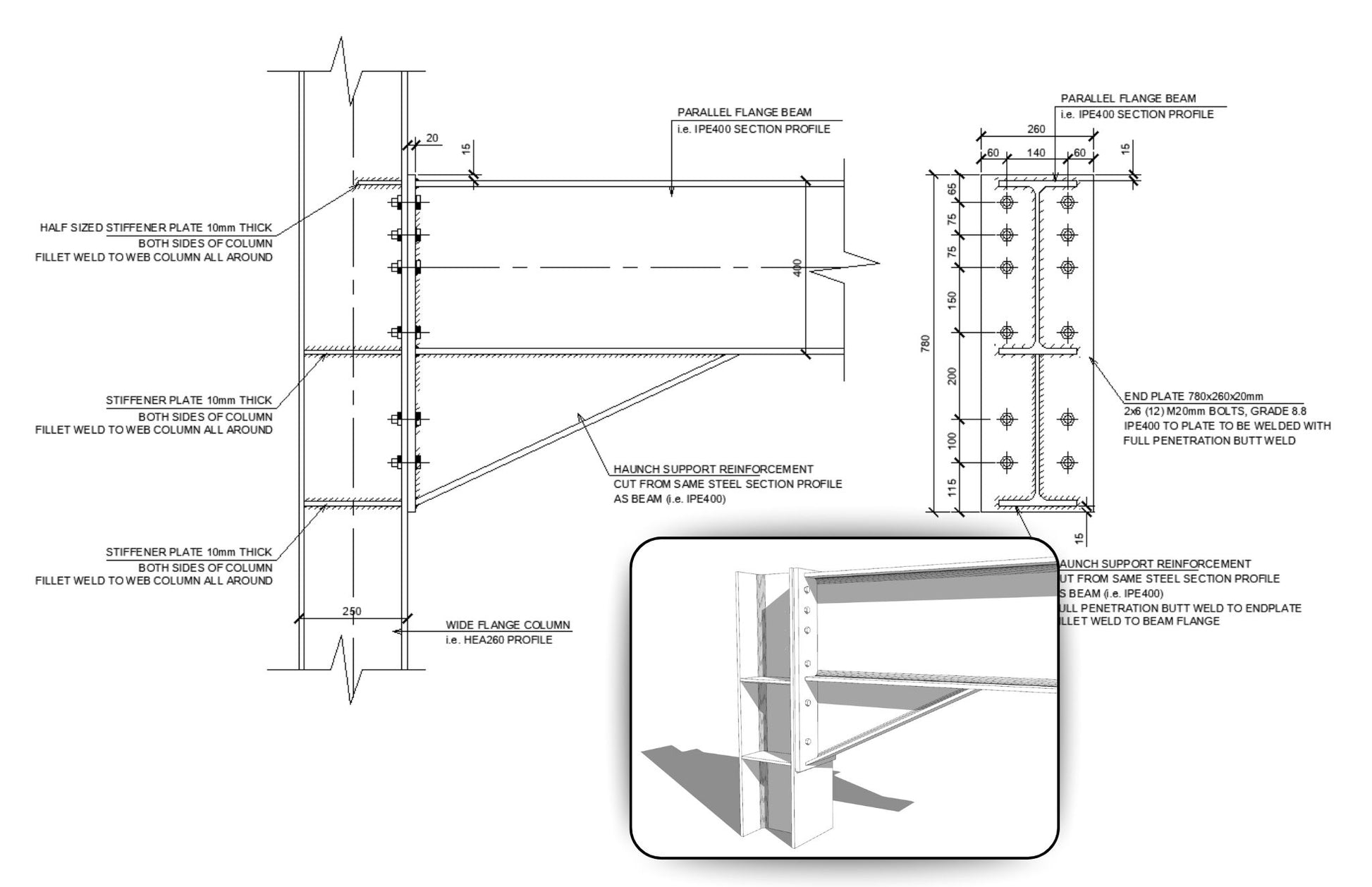

CAD dwg drawing for a Beam to Wide Flange Column Haunched Connection Detail. Steel Parallel flange beam profile section (i.e. IPE 400) connected to wide flange column (i.e. HEA 260) with a moment resisting haunched connection.

Fully Detailed Connection Drawing

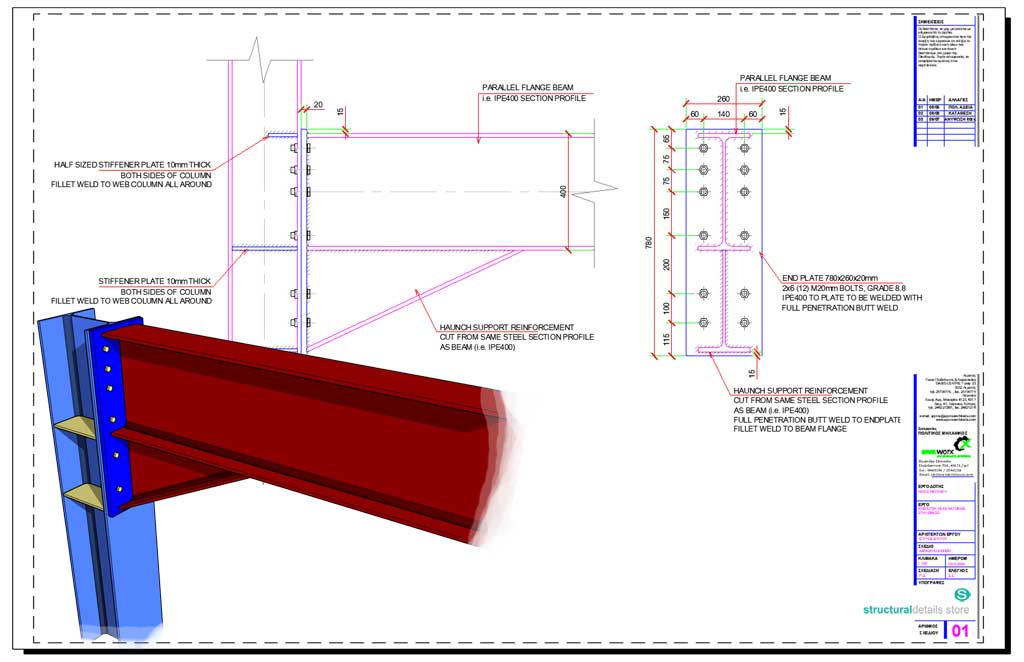

CAD drawings includes endplate details, haunch dimensioning, bolts & welding specifications, column web stiffeners, both in elevation and cross section view with connection detailing.

Generic & Adaptable for any project

Haunch beam-column connections are usually useful for large spans and/or large loading conditions for adequate connection capacity.

Designed with adaptability in mind, this connection detailed drawing can be effortlessly incorporated into a wide range of designs. Whether you’re working on a commercial building, a residential structure, or an industrial facility, this drawing is purposefully designed to cater to your diverse needs.

Essential Detail to Own

Great connection detail to have in any structural engineer’s library to be used with any project with large span beams and their respective connection to adjucent column.
