Beam to Wide Flange Column Endplate Connection Detail

Beam to Wide Flange Column Endplate Connection Detail

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

Looking for a CAD detail drawing of a endplate connection between a parallel flange steel beam and a wide flange steel column? This powerful resource provides a comprehensive and accurate illustration of an endplate connection, between a floor or roof steel beam and steel column, with a bolted endplate connection, onto the column’s flange.

This drawing provides a comprehensive and detailed connection template, allowing you to seamlessly integrate this connection into your structural designs. By utilizing this ready-made solution, you can save significant time and effort typically spent on creating accurate and efficient connections, ultimately enhancing the overall productivity of your projects.

Fully Detailed Connection Drawing

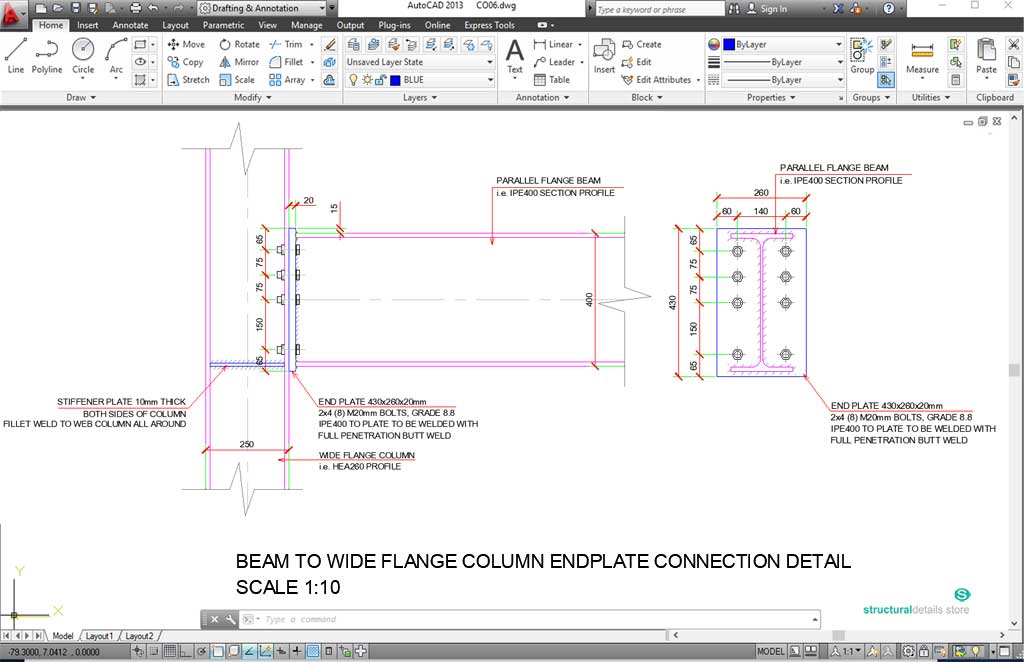

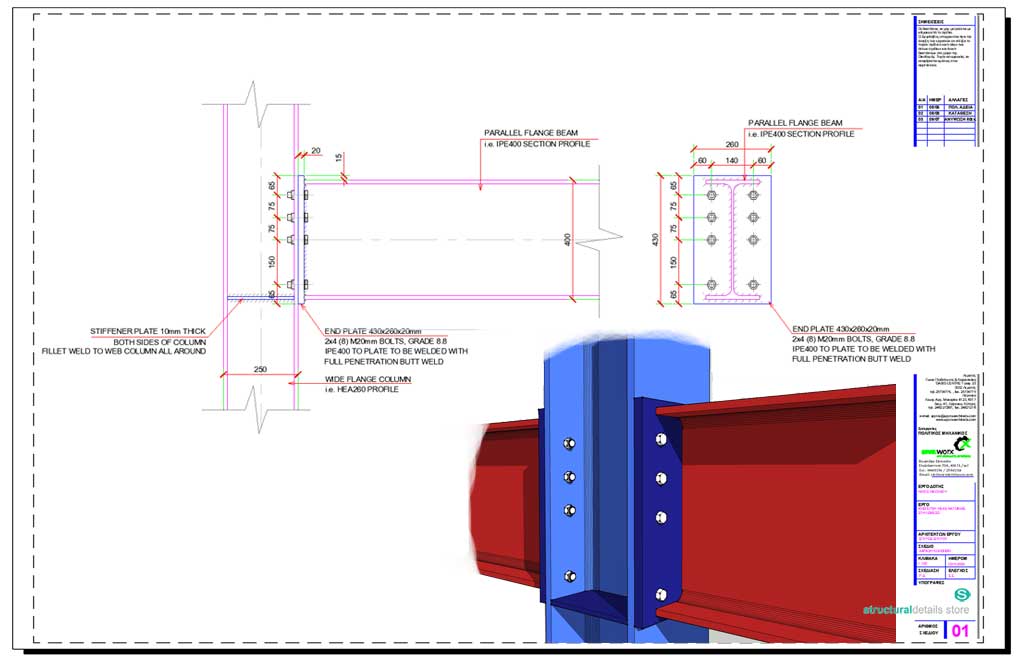

This comprehensive connection drawing includes complete dimension detailing, endplate thickness and sizing, bolts grade, diameter and position, welding specifications, column web stiffener plate, with elevation and cross section views.

This type of connection is usually used for industrial and/or commercial facilities with large spans. Column web stiffener reinforces the column flange capacity at the lower end of the connection for compression and torsional forces from the beam.

Use with any project

Designed with adaptability in mind, this connection detailed drawing can be effortlessly incorporated into a wide range of designs. Whether you’re working on a commercial building, a residential structure, or an industrial facility, this drawing is purposefully designed to cater to your diverse needs.

You can eliminate the need for extensive online research or manual sketching of each detail. This drawing serves as a reliable reference point, allowing you to swiftly implement this connection in your projects with confidence.
