Beam to Circular CHS Simple Connection Detail

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

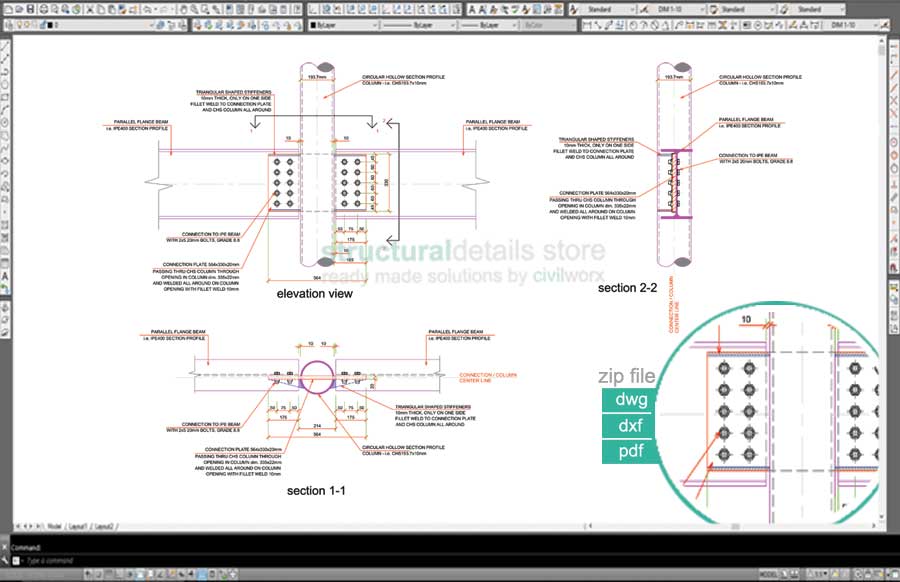

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

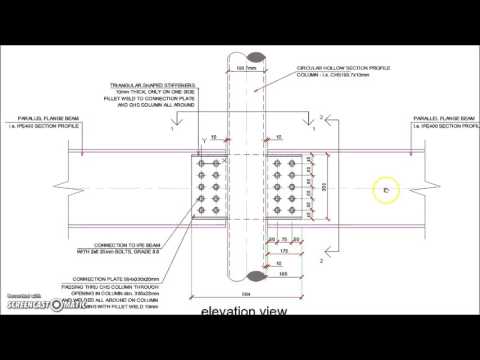

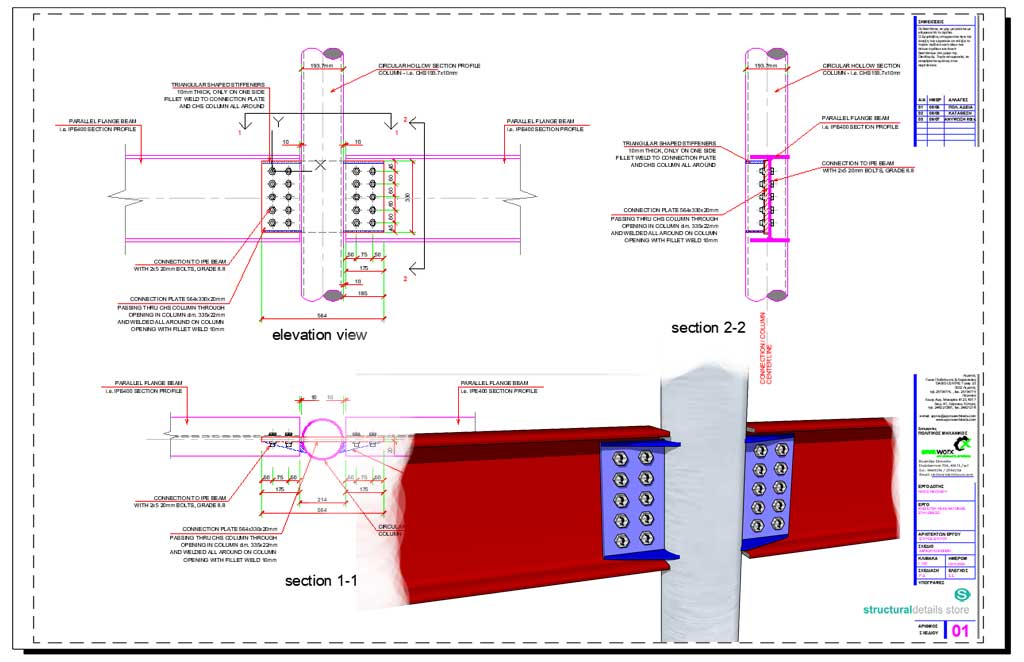

This is a CAD dwg drawing for a Beam to Circular CHS Simple Connection Detail. Parallel Flange IPE profile section Beam Simple Connection to Circular Hollow Section (CHS) column. Moment release connection – simple connection – with web plate passing through pre-fabricated opening on CHS circular column.

Detail includes through connection plate, lateral stiffeners, bolts and dimensions, welding specifications.

This is a great addition for any structural engineer’s library. Detail is somewhat difficult to achieve since a single plate must be shown to pass through the circular hollow section column and still maintain the center of the connected beam aligned with columns center axis in order to avoid any unwanted torsional effects.
