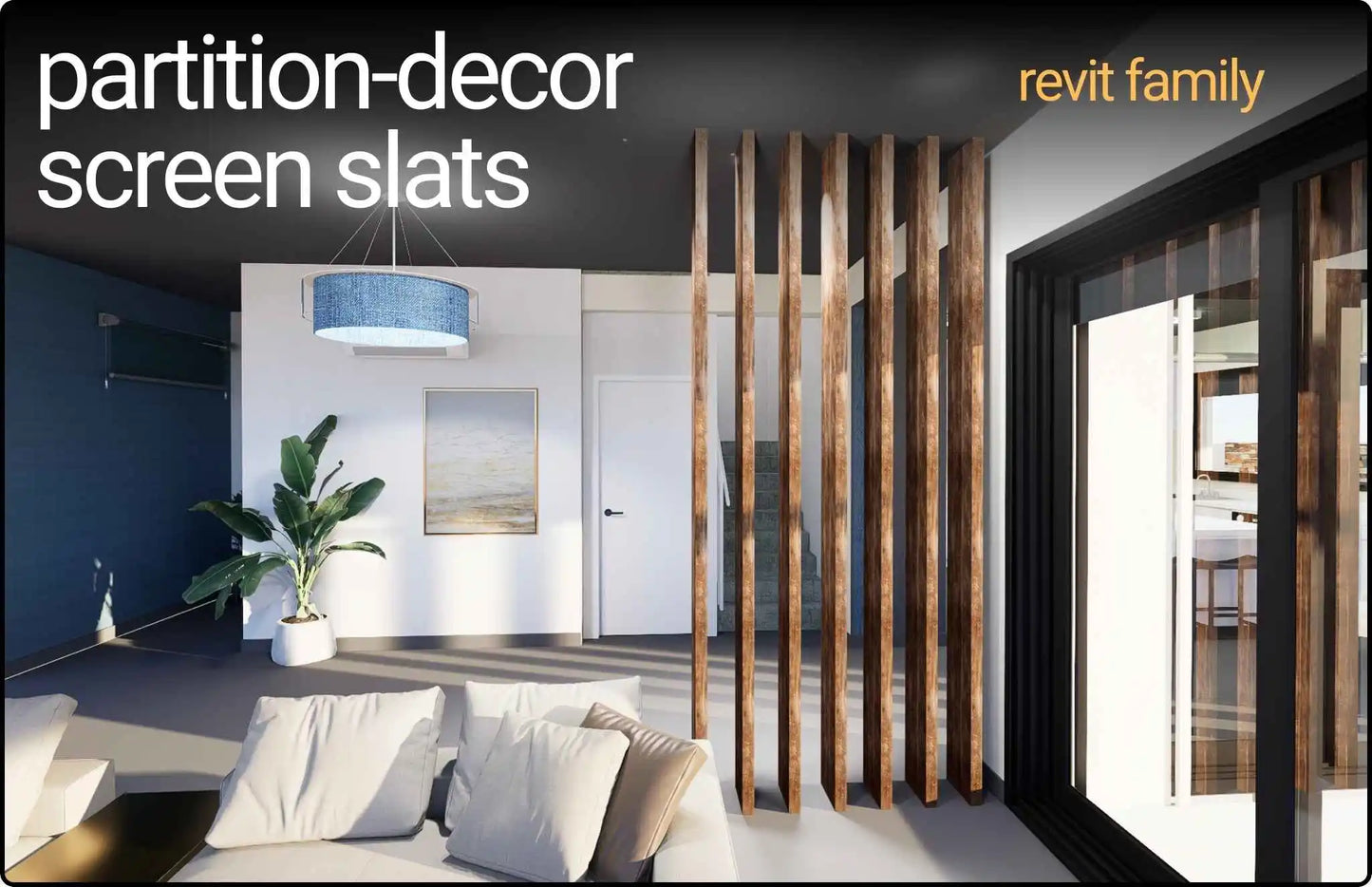

Wooden Column Decor Screens Room Divider

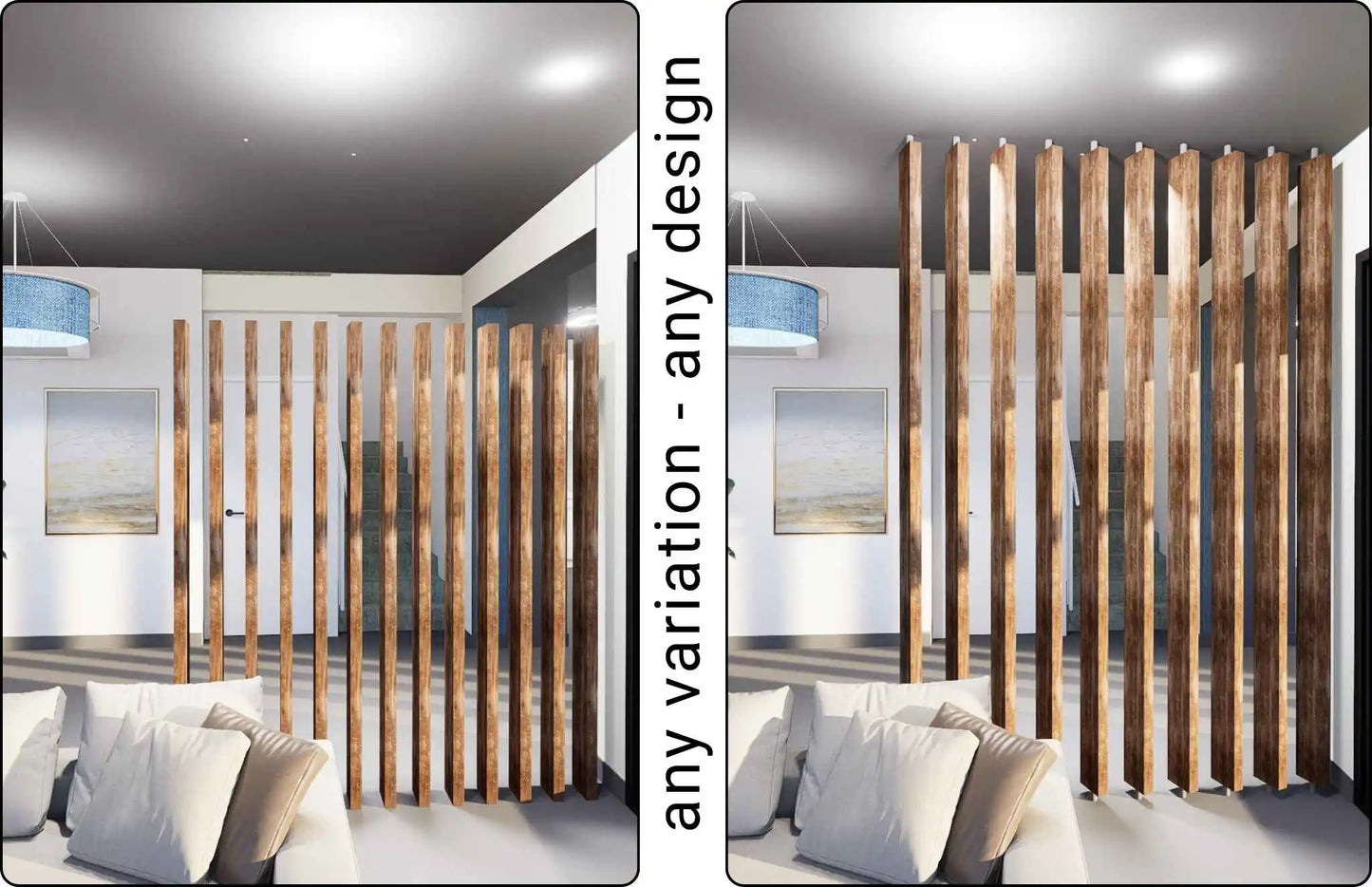

Match any design

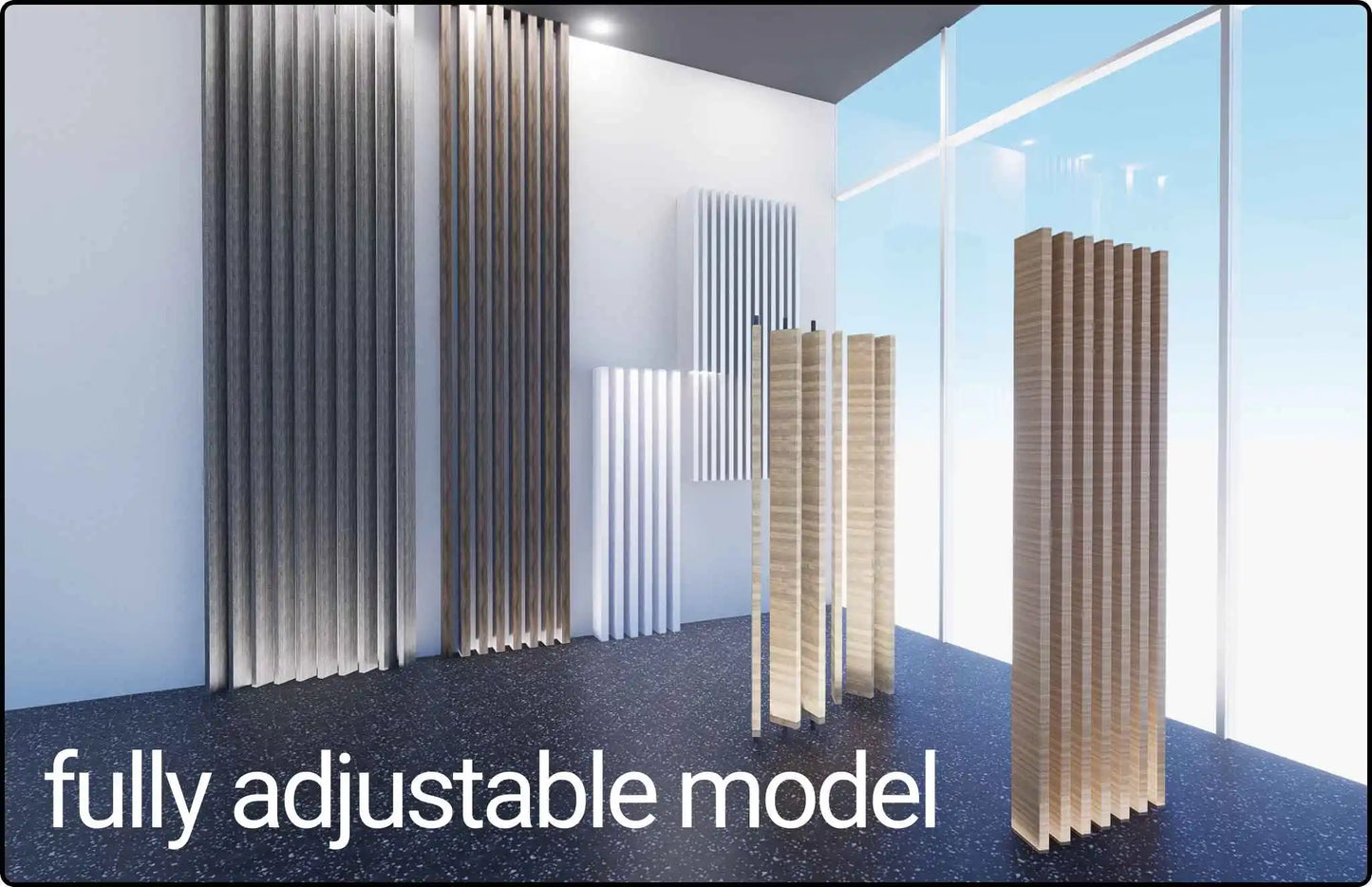

Wooden columns can be rotated at any angle using available parameter and have their size and distance between them adjusted and changed to match any required design. User can also change the number of columns from 1 to any number. Materials are also parametric allowing the user to choose any material needed.

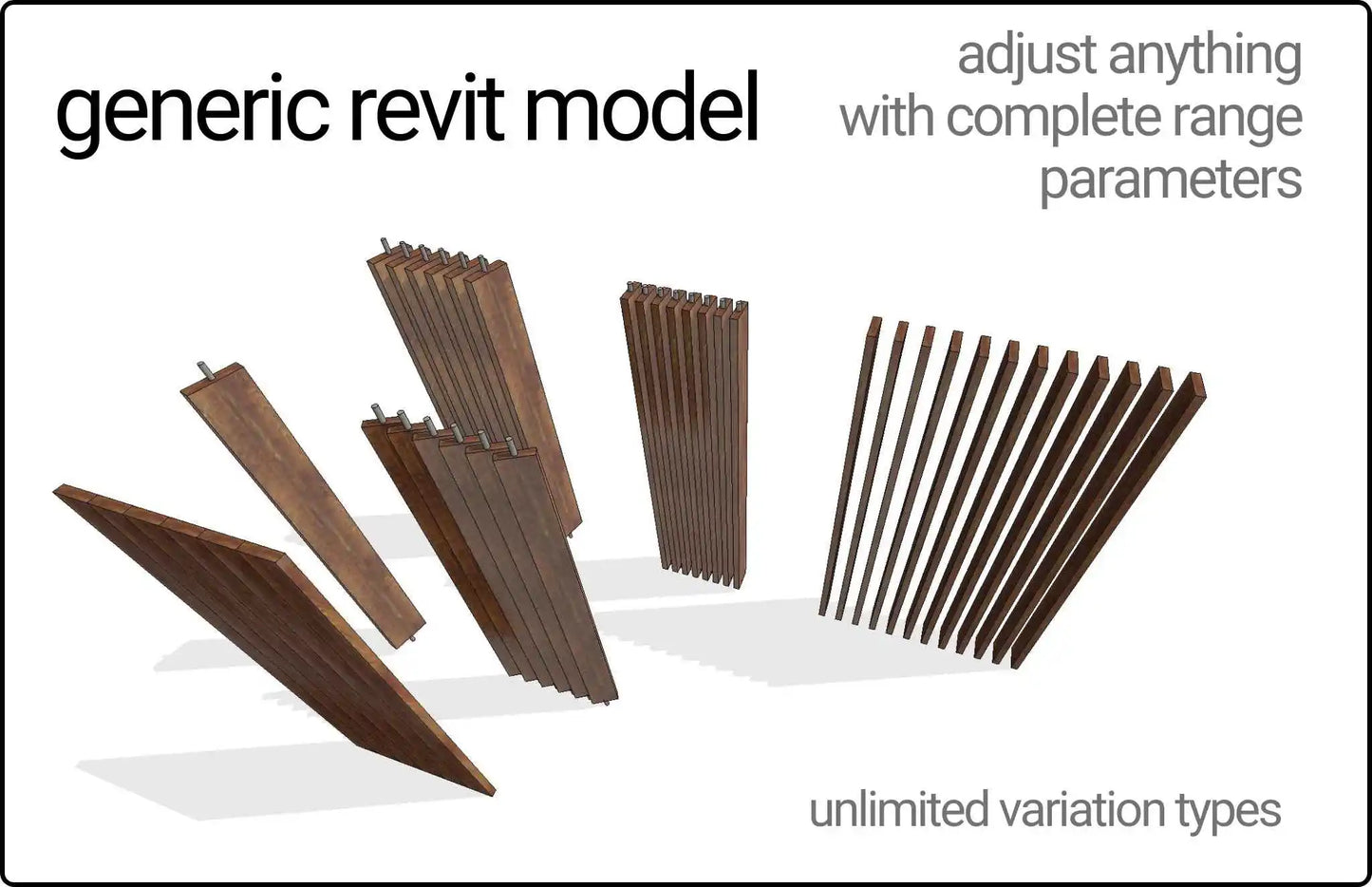

PARAMETERS

• Column Width and Depth
• Columns Spacing center-to-center distance
• Pivot/rotation angle
• Support Legs Option ON/OFF
• Support Legs Height & Diameter
• Total Height
• Number of columns
• Materials ( column, support legs )

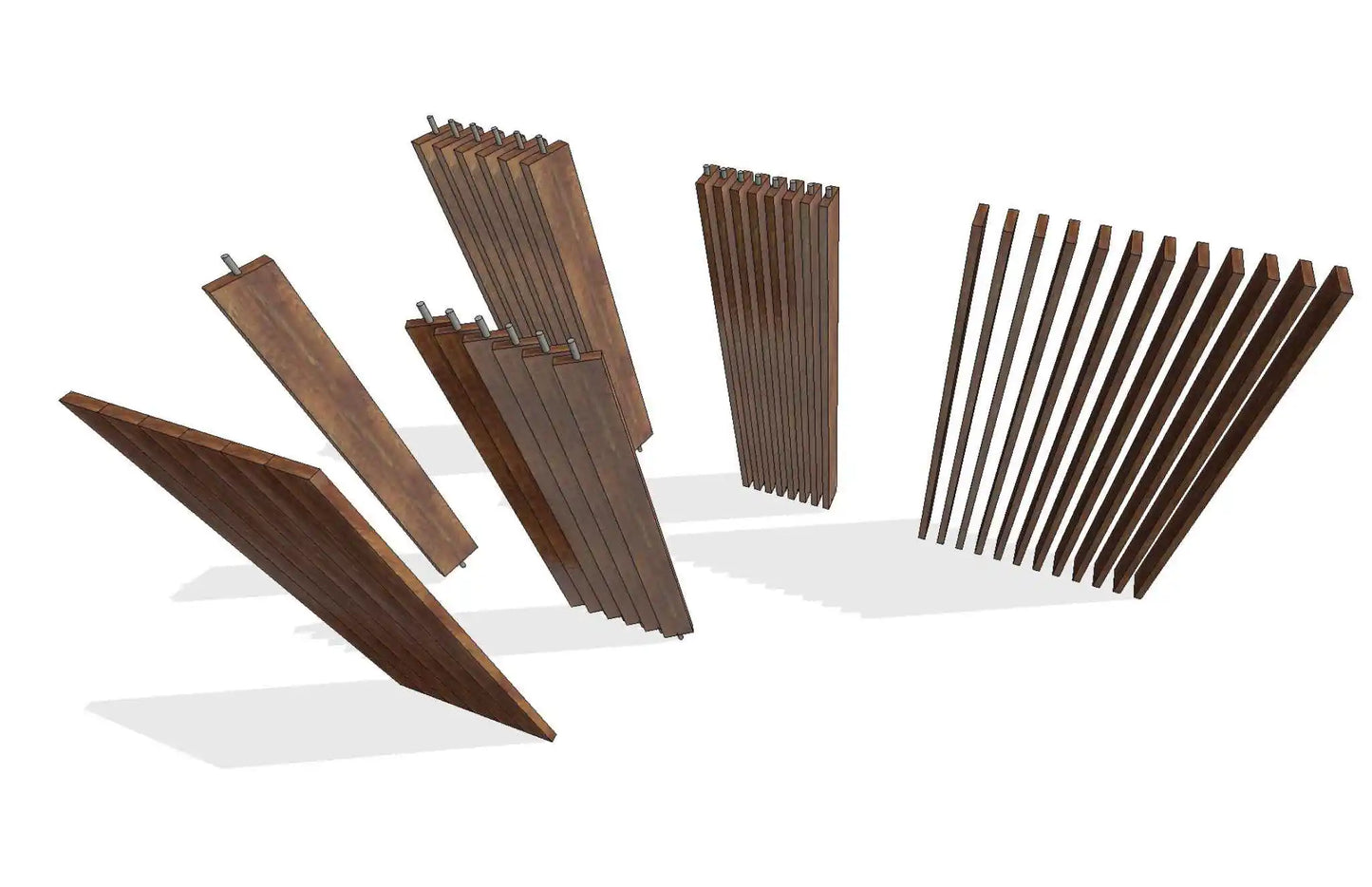

PRESET FAMILY TYPES

Model includes preset family types for instant use, or you can adjust any parameter to create an unlimited number of types and setups. With or with pivot legs, adjust positioning angle and column sizing, number and distance between slats, height, offset from floor level and all materials. Included preset family types :

1 Column – 50x200mm, Support Legs, 0 degrees, H=2700mm
5 Columns – 50x200mm, Spacing 150mm, Support Legs, 15 degrees, H=2900mm
8 Columns – 75x250mm, Spacing 150mm, No Legs, 0 degrees, H=3000mm
6 Columns – 50x150mm, Spacing 150mm, Support Legs, 45 degrees, H=3000mm
10 Columns – 25x100mm, Spacing 75mm, No Legs, 0 Degrees, H=1500mm

ATTRIBUTES: Revit version : 2022, Family Type : Generic Model, File Extension : .rfa

Can be used by any engineer, architect, or construction professional working on any type of revit projects.
