Wine Glass Bar Hanger Rails

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

Fully parametric revit family model for Wine Glass Bar Hanger Overhead Rails. The model can be placed into any project as a generic model and by adjusting the available parameters users can adjust to their exact design needs. Model can be placed anywhere and it is not face or wall based or ceiling based.

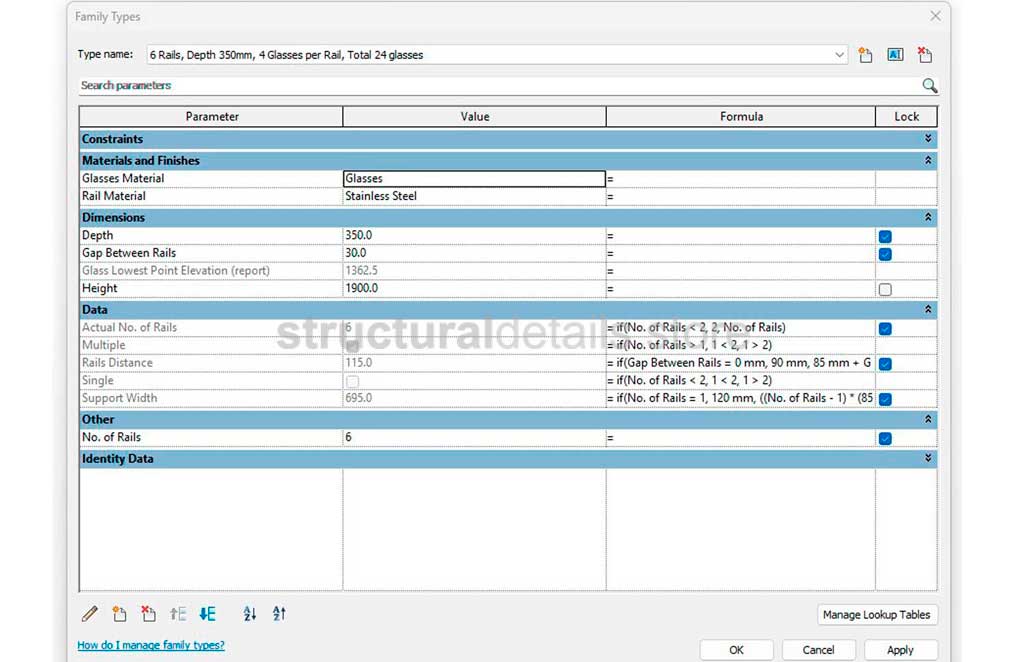

Unlimited number of family type variations can be created by adjusting the elevation from the reference ground level ( the elevation refers to the top of the rail where it is to be fixed ), the number of rails needed ( any integer number ), the depth of the rails ( number of glasses is automatically calculated ), the distance between each rail and the materials to be used for the rail and the glass.

The family also gives back as an instance parameter the lowest elevation of the glass in order for the user to check for clear heights. The actual hanger rail is designed with exact real life dimensions to fit wine glasses.

ATTRIBUTES: Revit Version : 2022, Family Type : Generic Model, File Extension : .rfa

PARAMETERS:

Number of Rails
Depth of the rails ( number of glass auto calculated )
Distance / Gap between rails
Installation / fixing height from the reference floor
All materials ( Hanger rails material, glasses material )
