WC Wall Mirror Cabinet with Shelves

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

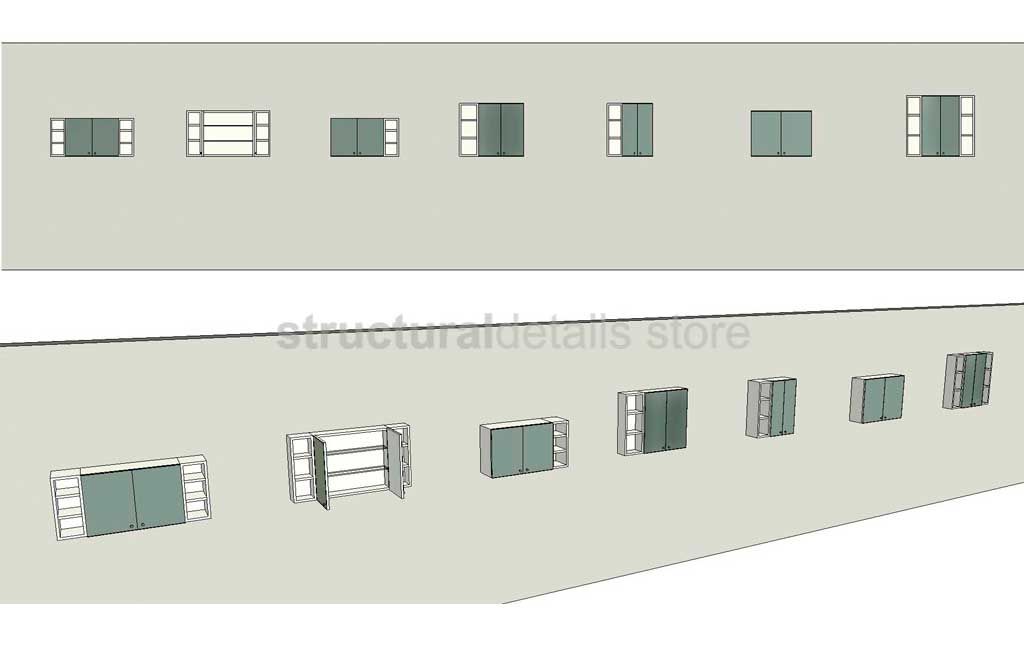

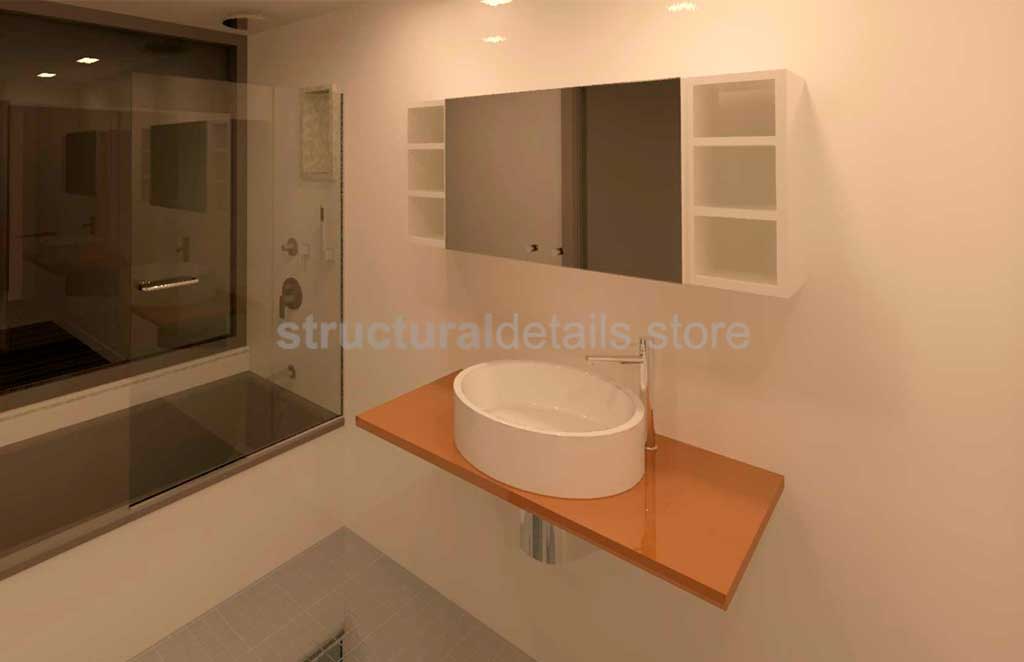

This is a fully parametric wall based revit family for a WC wall cabinet with mirror doors and side shelves. Family model can be placed on any wall controlling the overall elevation from the reference level.

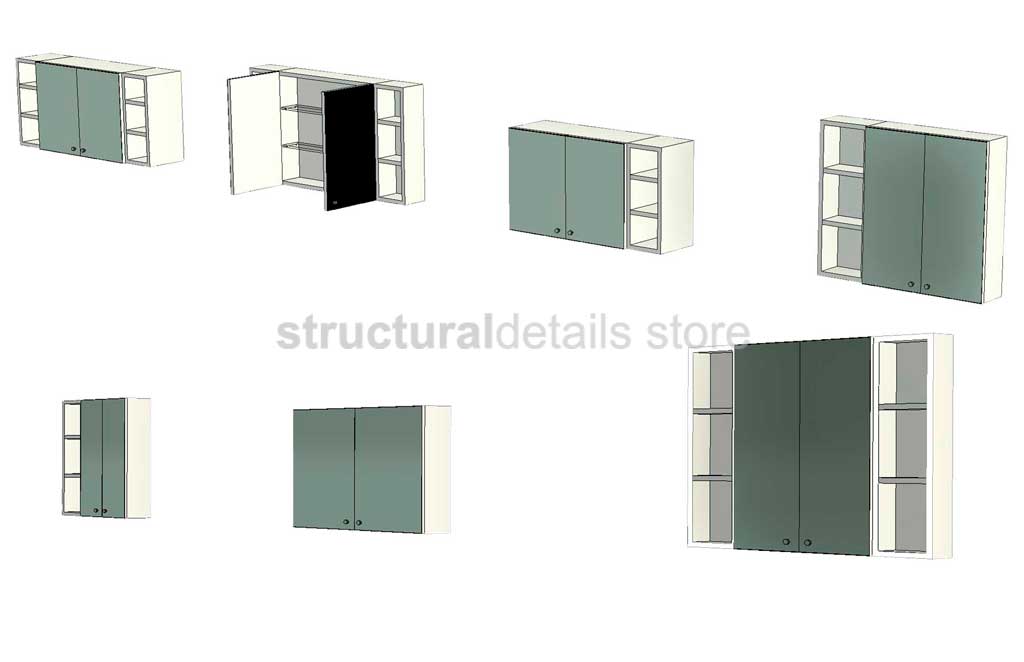

Fully parametric controlling the dimensions of the cabinet, options to turn on and off the side shelves and have graphical representation of open and closed cabinet doors.

ATTRIBUTES:

– Revit Version 2022

– Family Type : Wall Based

– File Extension : .rfa

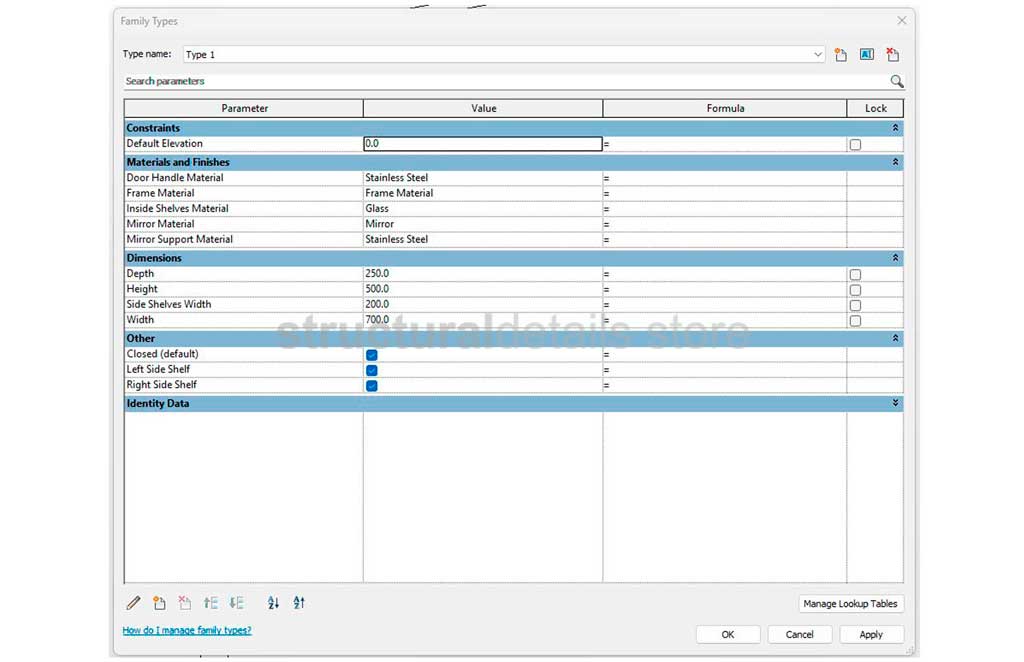

PARAMETERS:

– Elevation for reference level

– Cabinet width, height and depth

– Side Shelves width

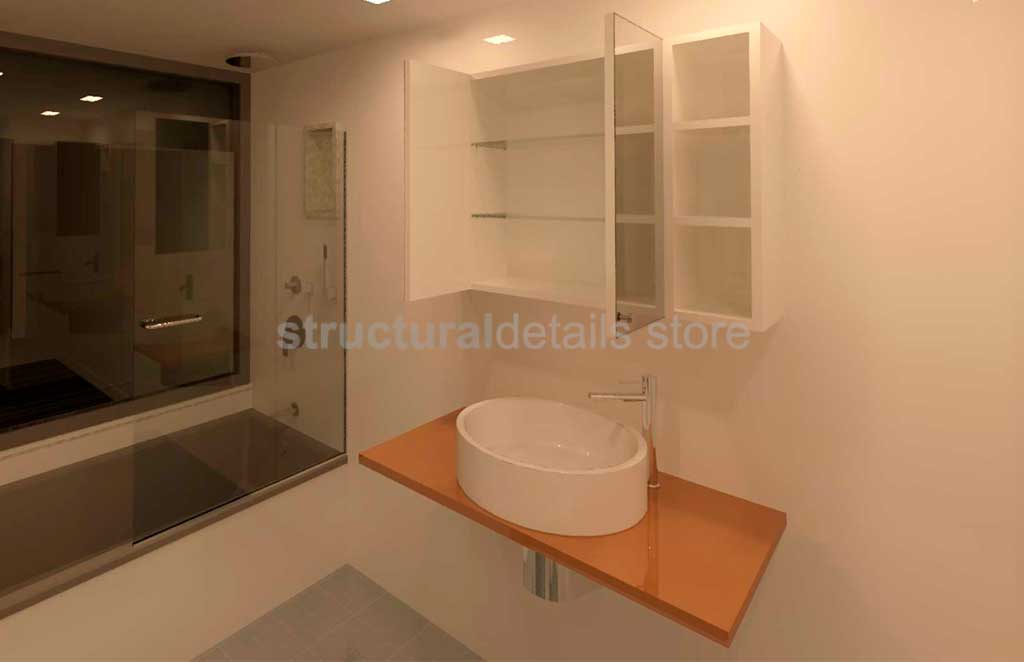

– Cabinet mirror doors opened / closed

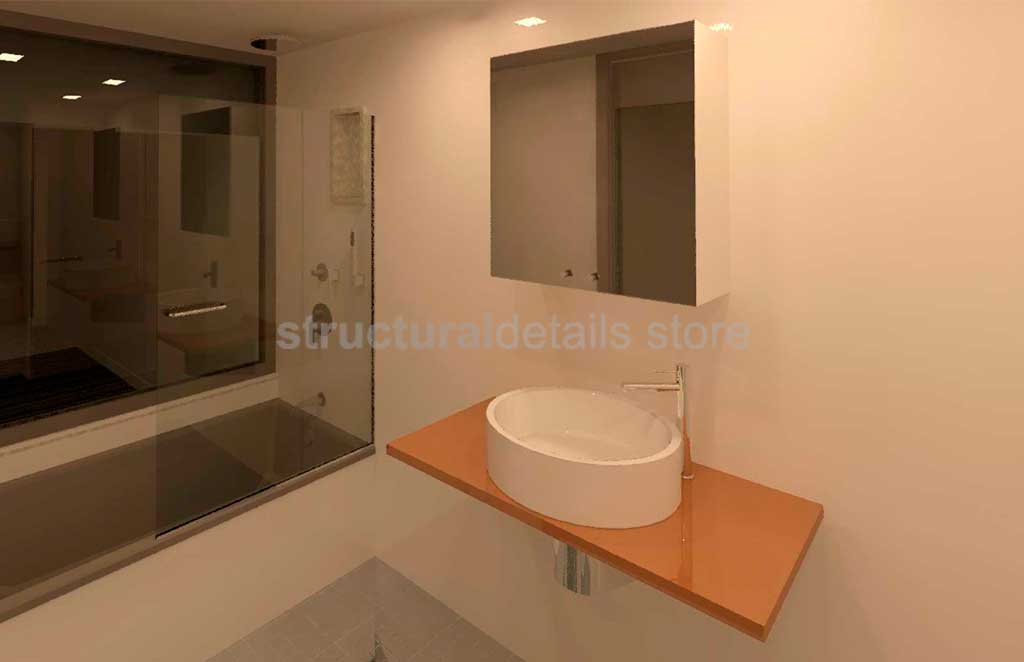

– Left shelf ON/OFF

– Right shelf ON/OFF

– Materials ( frame, mirror, mirror support profile, door handle, cabinet shelves )
