Wall Niche Wall Based Family

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

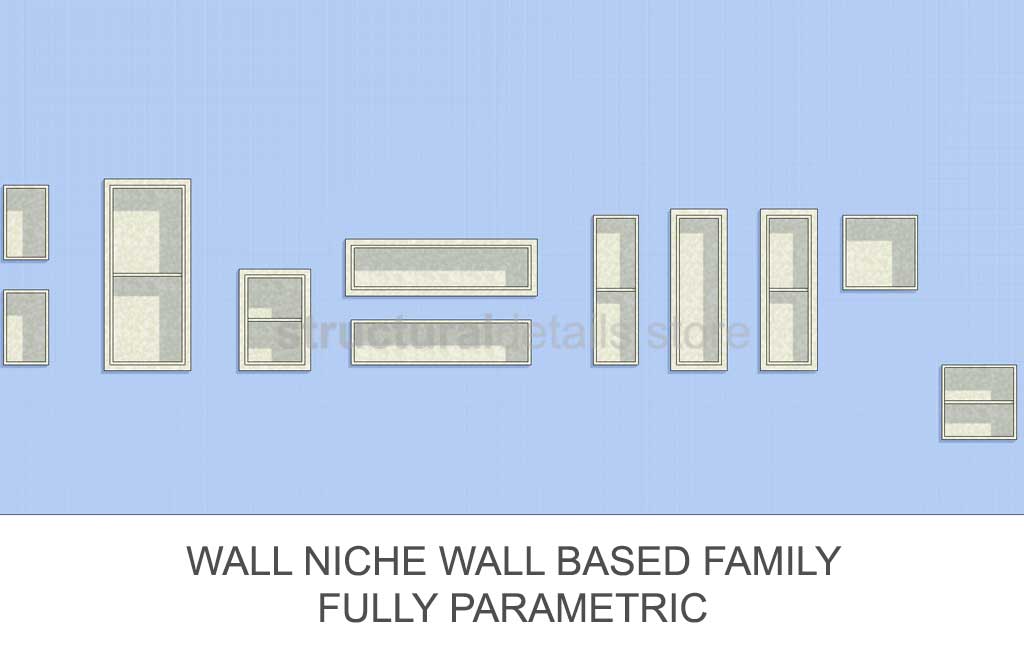

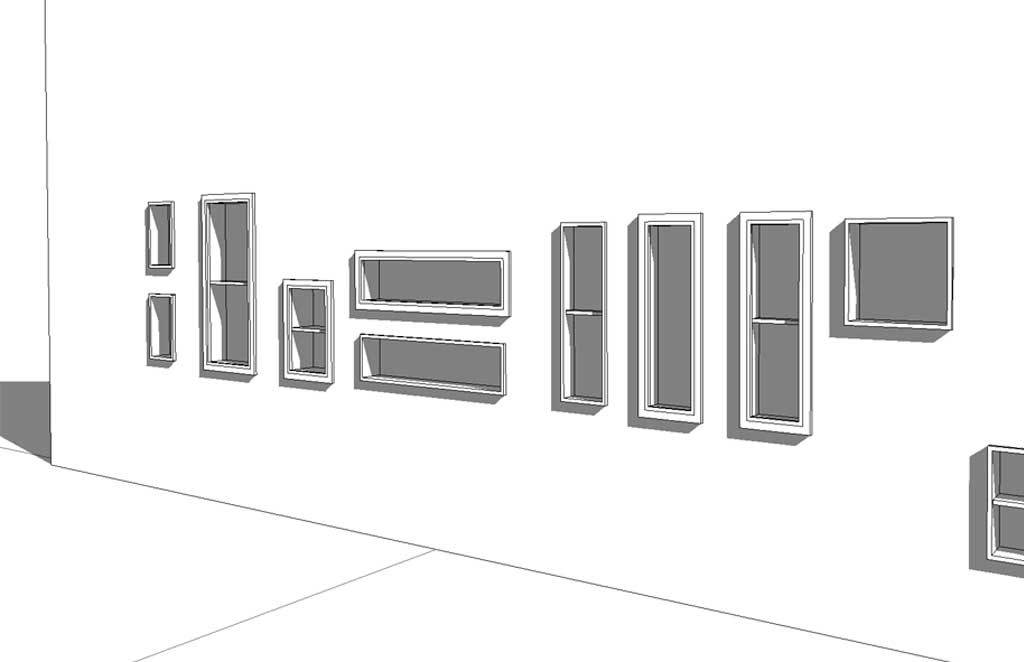

This is a fully parametric wall niche revit family model. It is a wall based family that can be loaded onto any thickness wall on any project to create a fitted wall niche.

The family is fully parametric controlling elevation from floor, width, height and depth. Options are available for turning on and off a middle horizontal shelf and a perimeter frame / architrave. Finish material is parametric allowing users to select any finish material for the inside of the wall niche together with the thickness of material the niche is made of. Basically, all options are parametric. Users can create any number of different family types to suit any project.

Default elevation from the finish floor level on which the family is applied to, refers to the wall cutout lower position.

All materials are also parametric.

ATTRIBUTES: Revit Version 2022, Family Type : Wall Based, File Extension : .rfa

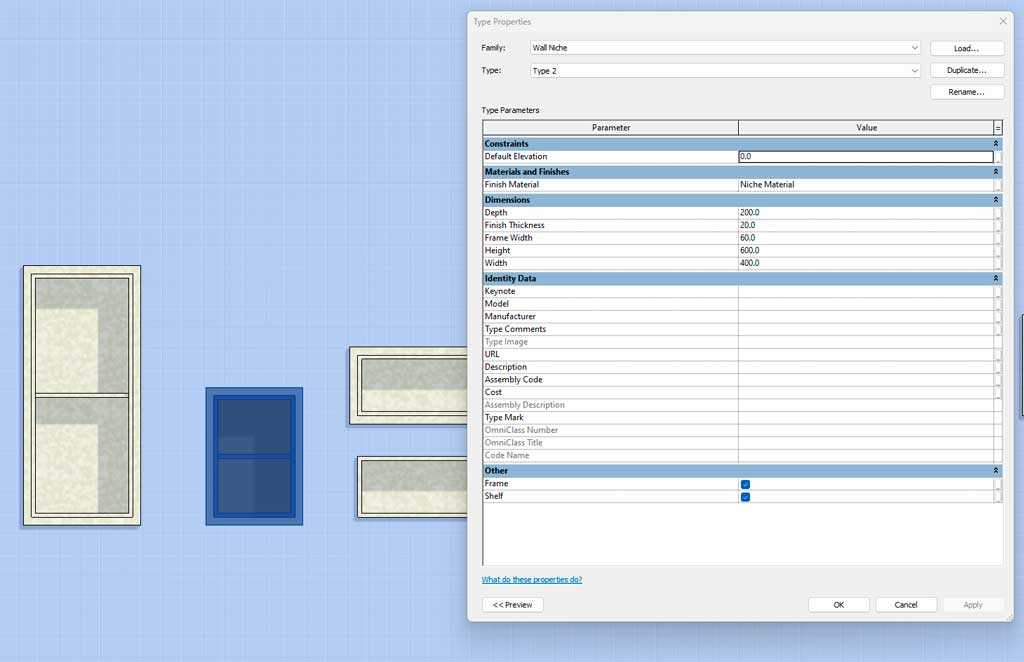

PARAMETERS

Elevation from floor
Niche width and height
Niche Depth into the wall
Finish material thickness
Frame or Architrave option ON/OFF
Middle Shelf option ON/FF
All materials are parametric
User can create unlimited number of family types to match requirements for any project.

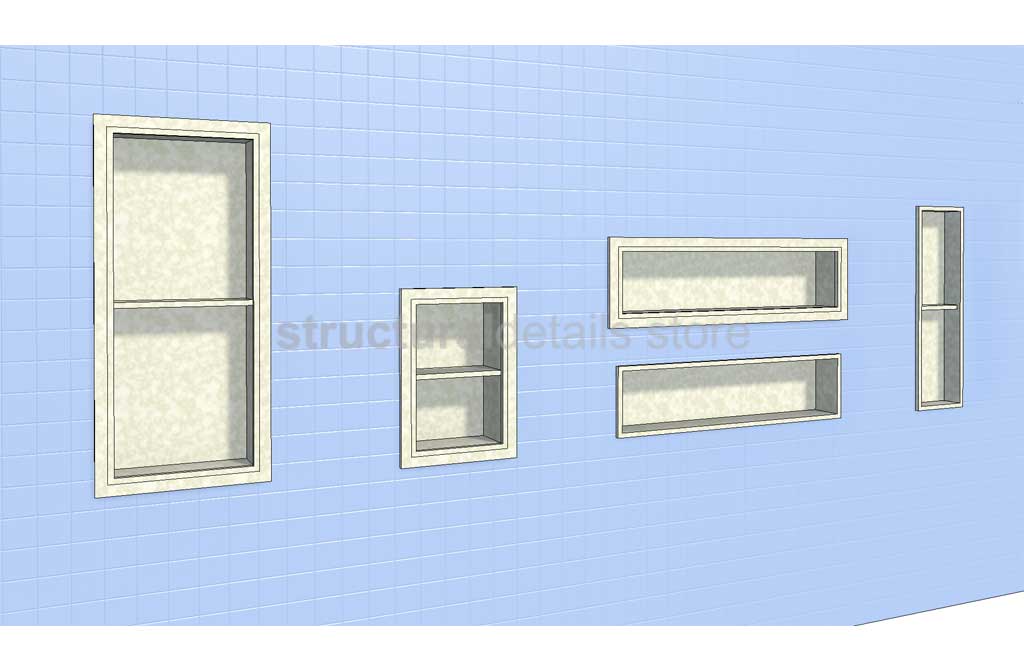

Wall Niche can be used either for showers and bathtubs with granite or marble finish or even in living spaces with wooden or any other finish material. Can be used as a bathroom niche or even a nice bedroom and living room bookcase into the wall.
