T Shaped Column

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

This is a fully parametric revit family for a concrete T-Shaped Column. All dimensions of the concrete column can be changed by the user. It can be rotated and flipped on both axes to match the design of any project.

Both sides, flange and web, can be changed. Column can either have similar widths on both sides or different ones. By rotating and flipping on an axis, and changing the column dimensions, it can be adjusted to match any design.

This revit family file belongs in the structural column revit category and can be inserted into any project.

ATTRIBUTES: Revit Version : 2022, Family Type : Structural Column, File Extension : .rfa

PARAMETERS:

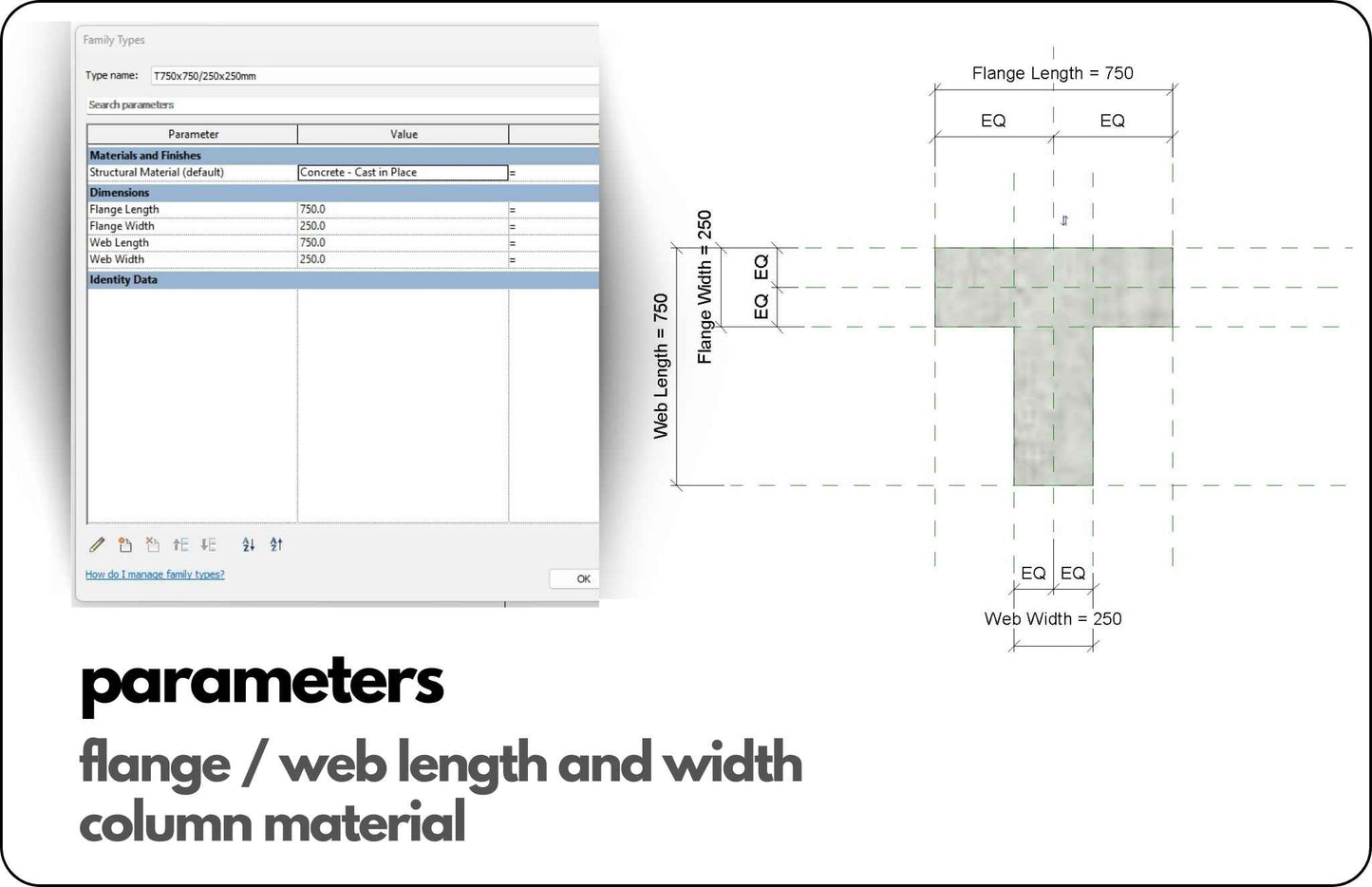

• Flange Length
• Flange Width
• Web Length
• Web Width
• Material Parameter

PRESET FAMILY TYPES:

T750x750/250x250mm
T600x600/300x300mm
T750x750/300x300mm
T600x600/250x250mm
T900x900/300x300mm
T900x900/250x250mm
T600x600/300x250mm
T600x600x/250x300mm
T750x750/300x250mm
T750x750/250x300mm
T900x900/300x250mm
T900x900/250x300mm
T1000x1000/250x250mm
T1000x1000/300x300mm
T1000x1000/300x250mm
T1000x1000/250x300mm
T900x600/300x300mm
T600x900/250x250mm
T900x600/250x250mm
T600x900/300x300mm
T500x500/250x250mm
