Single Opening Window

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

Fully Parametric Revit family model for a Single Opening Window. This is a window wall-based revit family that can be placed onto any thickness wall in any revit project.

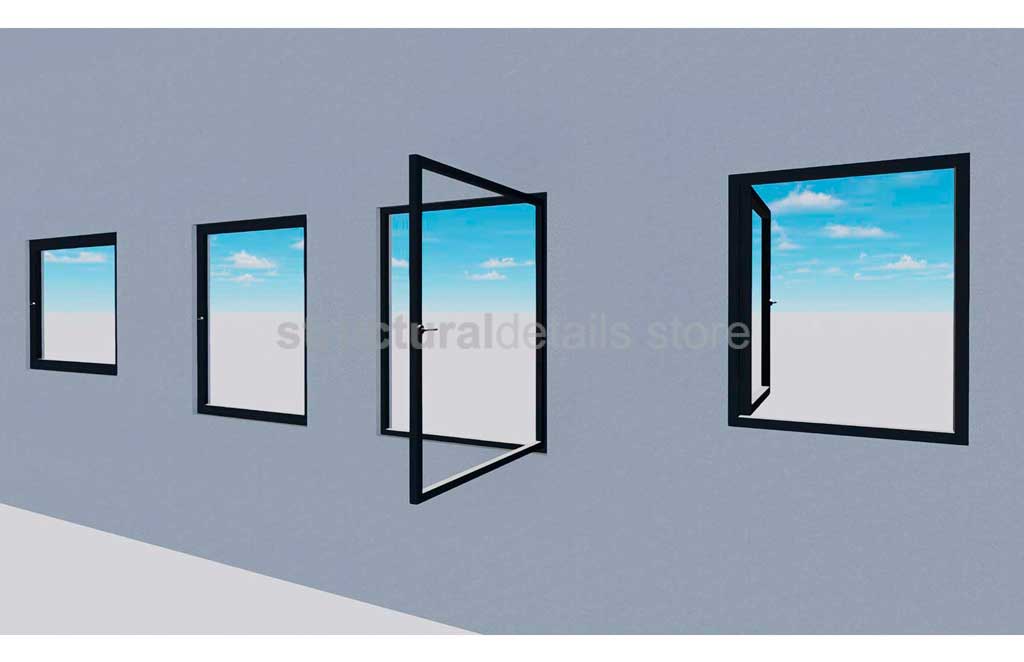

Family has options for customising and matching any design criteria. Window can be flipped both on vertical and horizontal axes. One can flip the window on its axis for changing the opening side of the window either in the interior or the exterior side of a building.

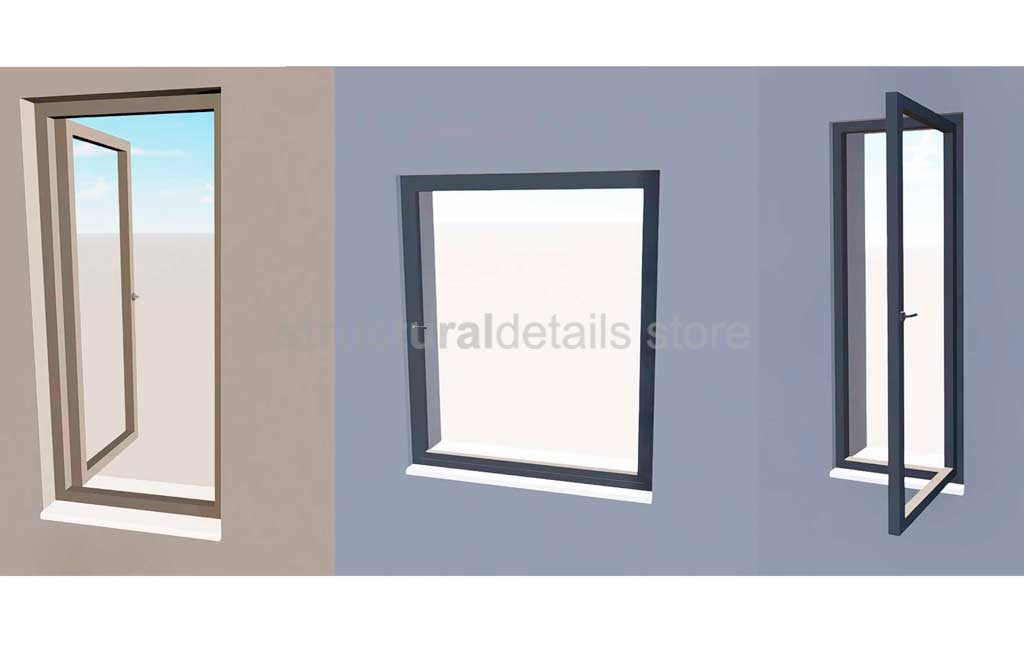

Other parameters control whether or not a handle will be placed on the opening side or the opposite side or both. Sill height in relation tot he reference floor can be controlled as well as the option to turn on and off the window sill of 20mm thickness.

There is also a graphical represantation option to show the window either open or closed.

ATTRIBUTES: Revit Version : 2022, Family Type : Window Wall-Based, File Extension : .rfa

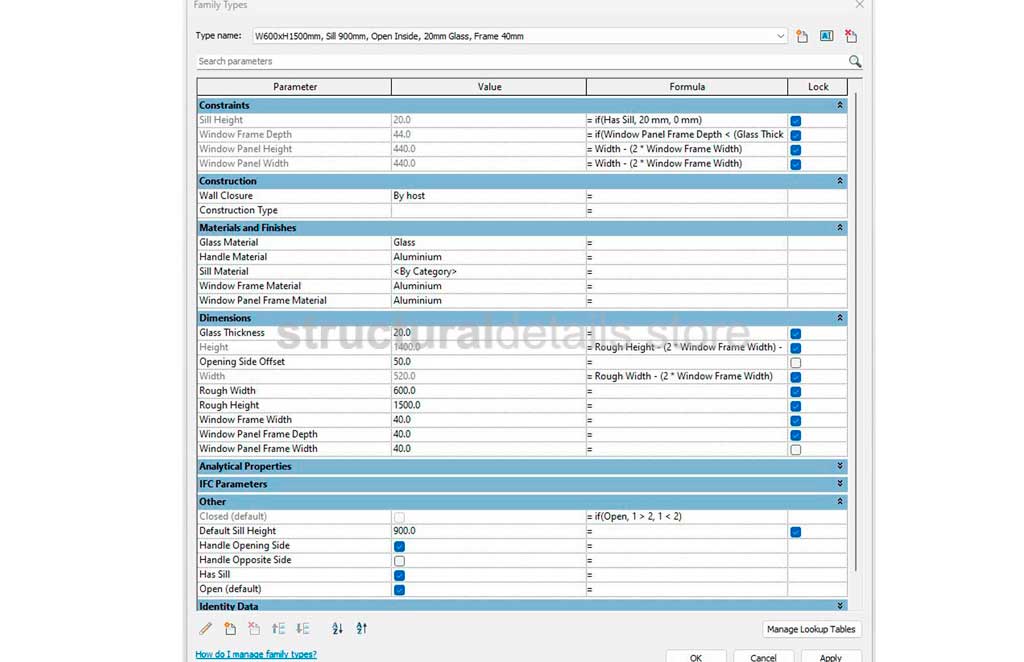

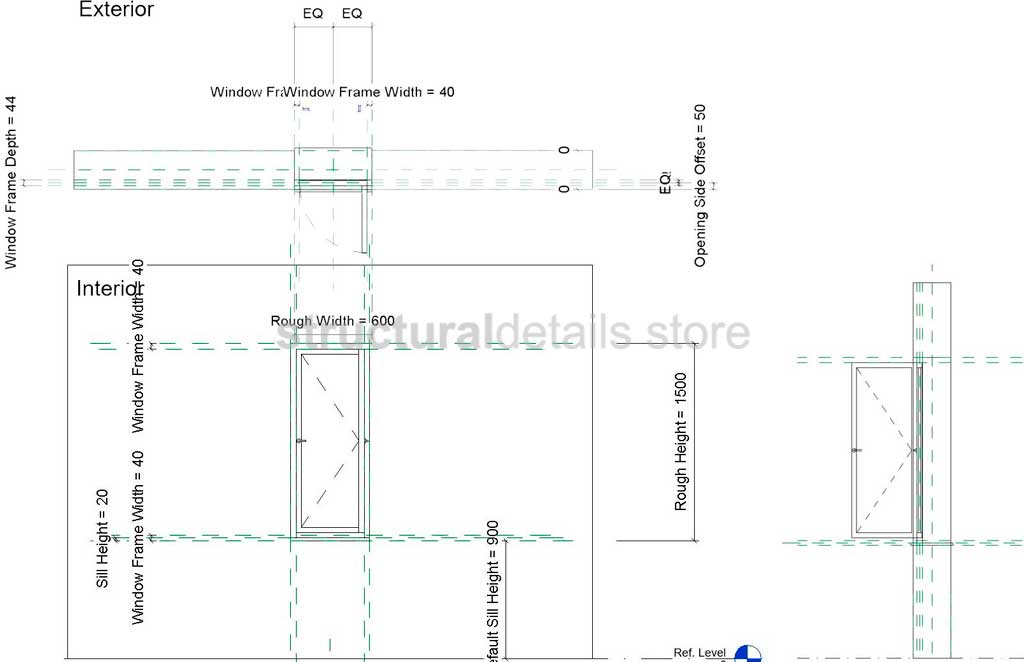

PARAMETERS:

Window Width and Height
Window Panel Frame Width and Depth
Frame Width
Glass Thickness
Opening Side Window Offset in relation to wall face
Handle option ( both sides )
SIll Option ON/OFF
Open / Closed Graphical Representation Option
Sill Height from floor reference
All Materials
