Shower Tray

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

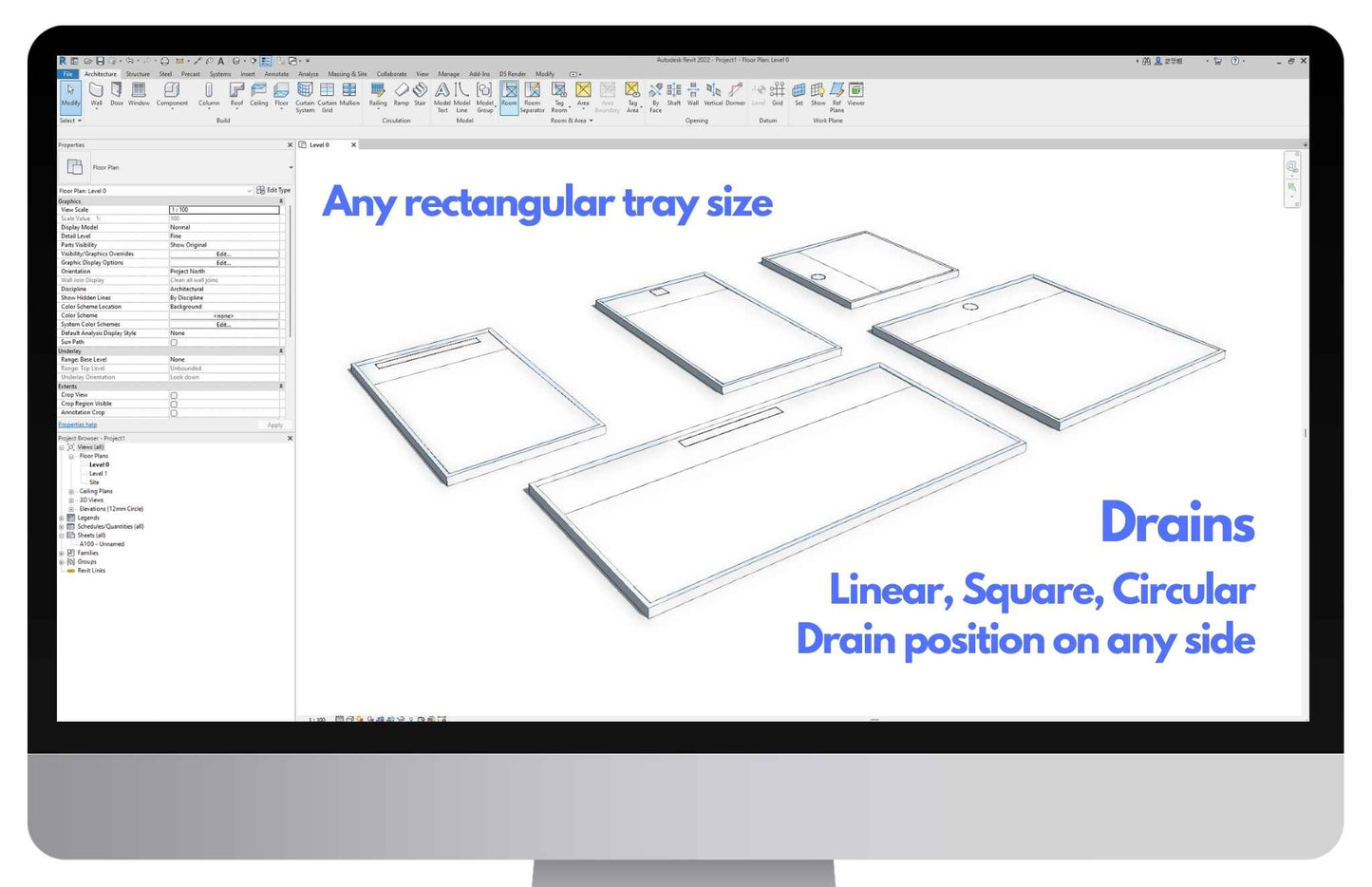

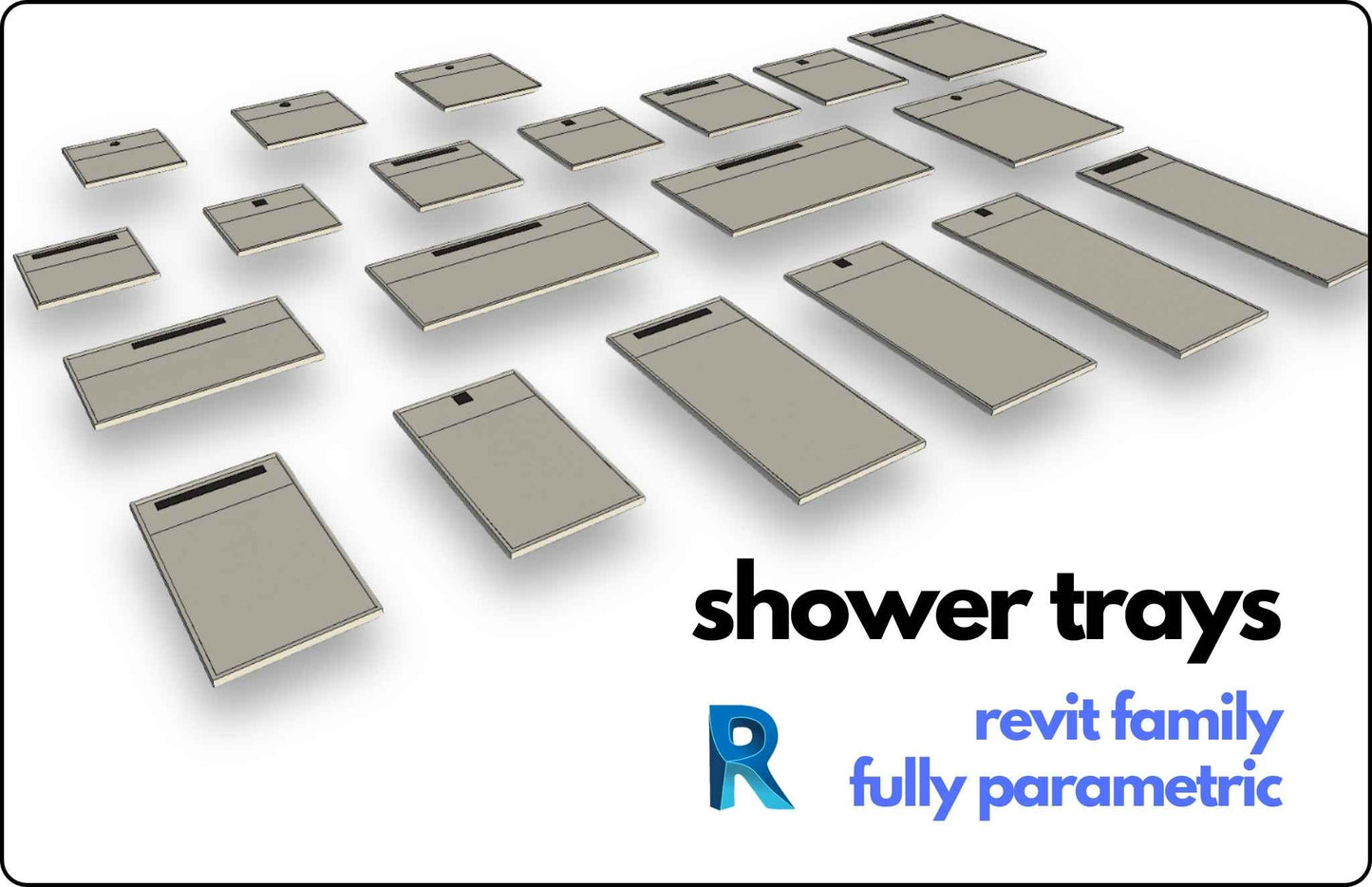

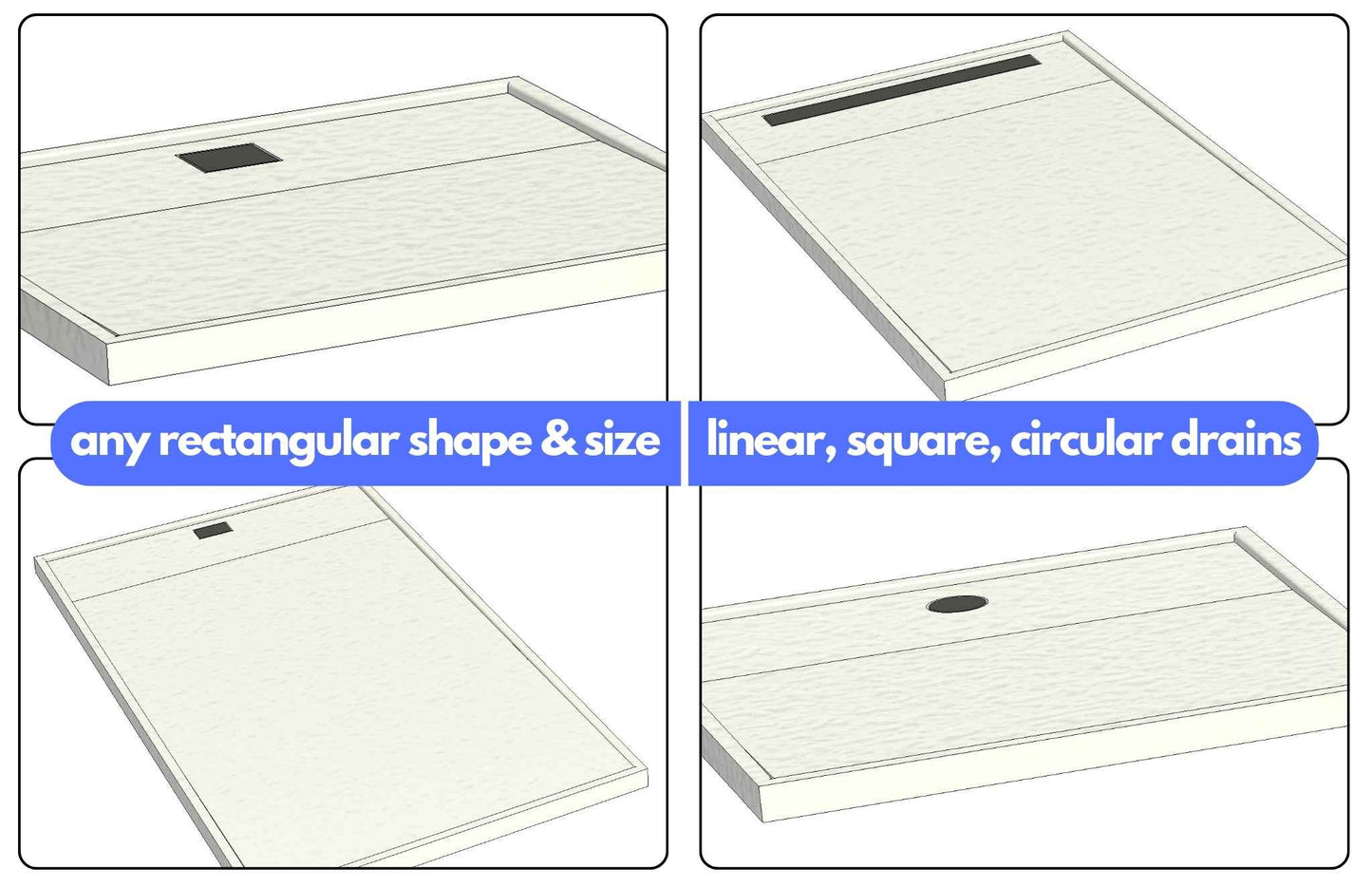

Fully Parametric rectangular shape Shower tray revit family model. Any rectangular shape and size can be selected with options of linear, square and circular drains. Shower tray can be adjusted to match any design requirement with drai either on the long or short side.

Shower tray has a sloped surface for water drainage with a variable drain shape. By adjusting the length and width of the tray the drain can be located either on the long or the short side of the tray. Model can be flipped on both axis for more design options.

User can also change the tray height and the top rim width.

By changing the drain horizontal and vertical position, it can be placed either in the center or any of the corners of the tray.

ATTRIBUTES: Revit Model : 2022, Family Type : Generic Model, File Extension : .rfa

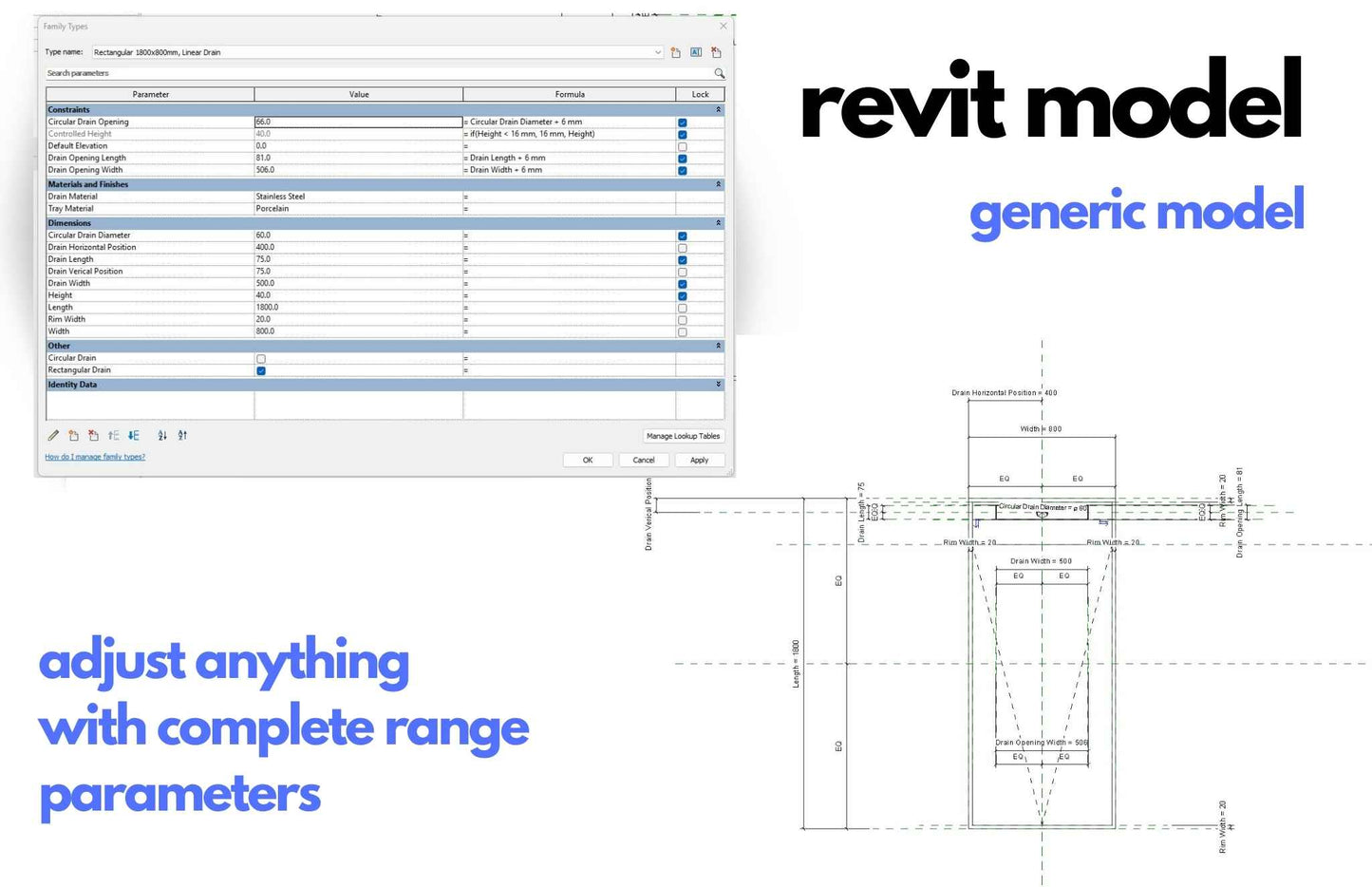

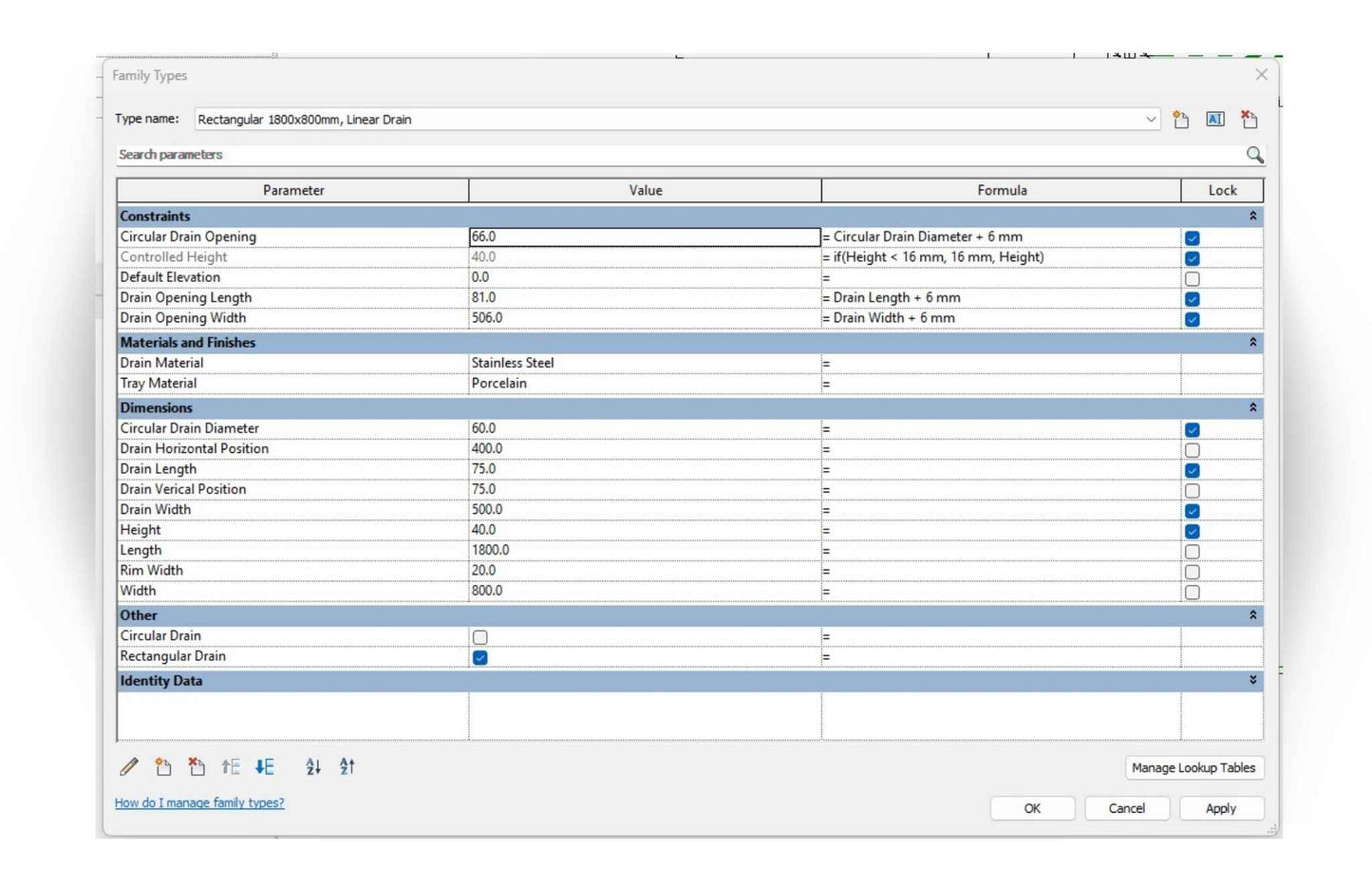

PARAMETERS:

Tray Width & Length
Tray Height
Tray Rim Width
Drain vertical and horizotanl position
Drain Type Selection between Rectangular ( Linear or Square ) or Circular
Drain Length & Width or drain diameter for circular drains
Elevation from reference level
All materials are parametric

User can create as many family type variations needed with no restrictions.
