Shower Sliding Glass Door

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

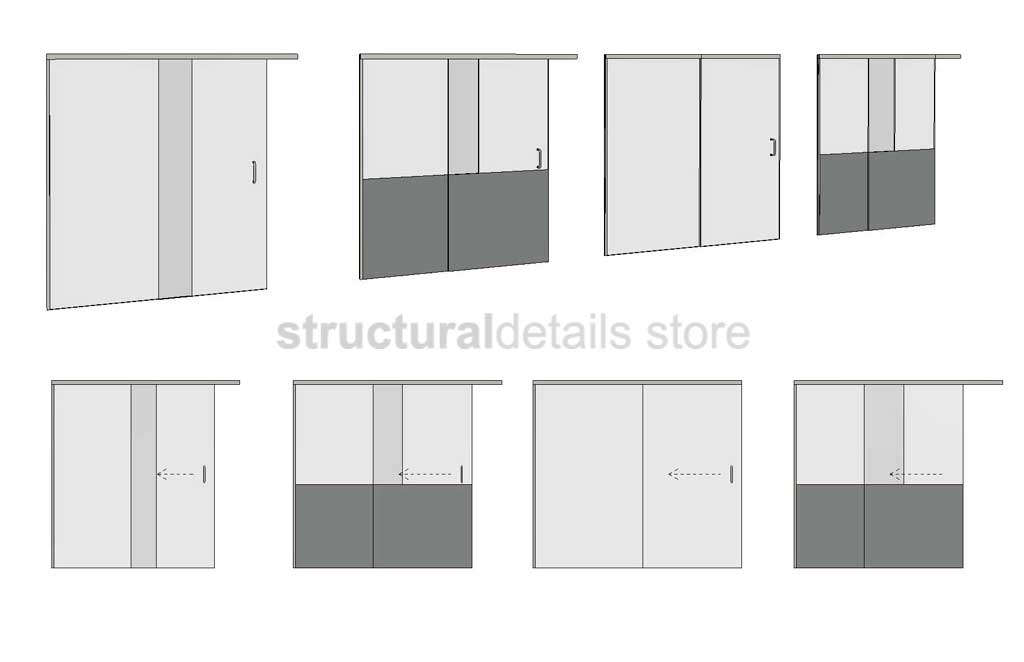

Fully Parametric Shower Glass Sliding Door revit family. This is a fixture generic model, that can be placed almost everywhere with an elevation from level parameter to adjust the installation position onto the shower tray or on the floor. Door can be flipped on both axes to match any design criteria and it is fully parametric. Almost all features of this family model can be adjusted by the user.

ATTRIBUTES: Revit Version : 2022, Family Type : Generic Model, File Extension : .rfa

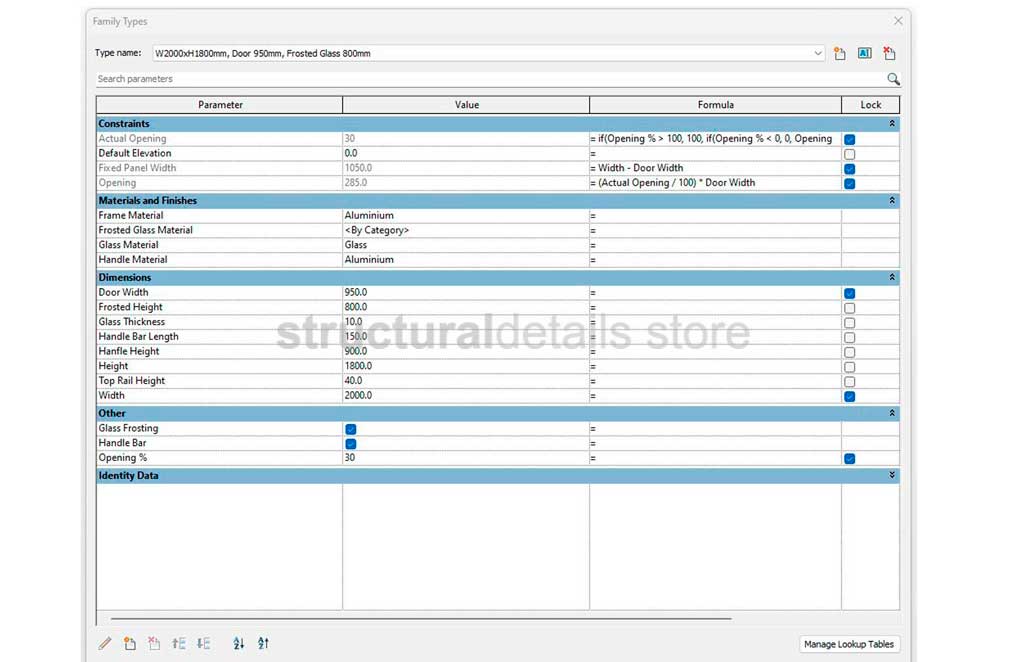

PARAMETERS:

Overall Width
Sliding Door Panel Width
Height
Top Guide Rail Height
Handle Option ON/OFF
Handle bar elevation
Handle bar length
Glass Thickness
Glass Frosting Option ON/OFF
Glass Frosting Height
Door open % graphical representation parameter
Elevation from level
All materials are parametric
