Pivot Window Horizontal Axis

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

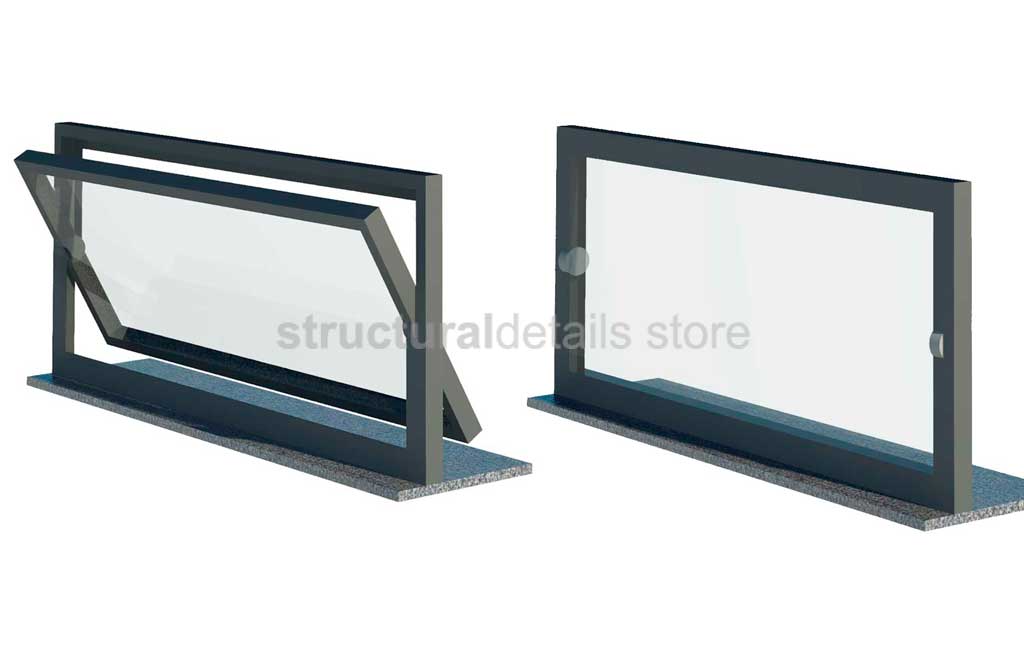

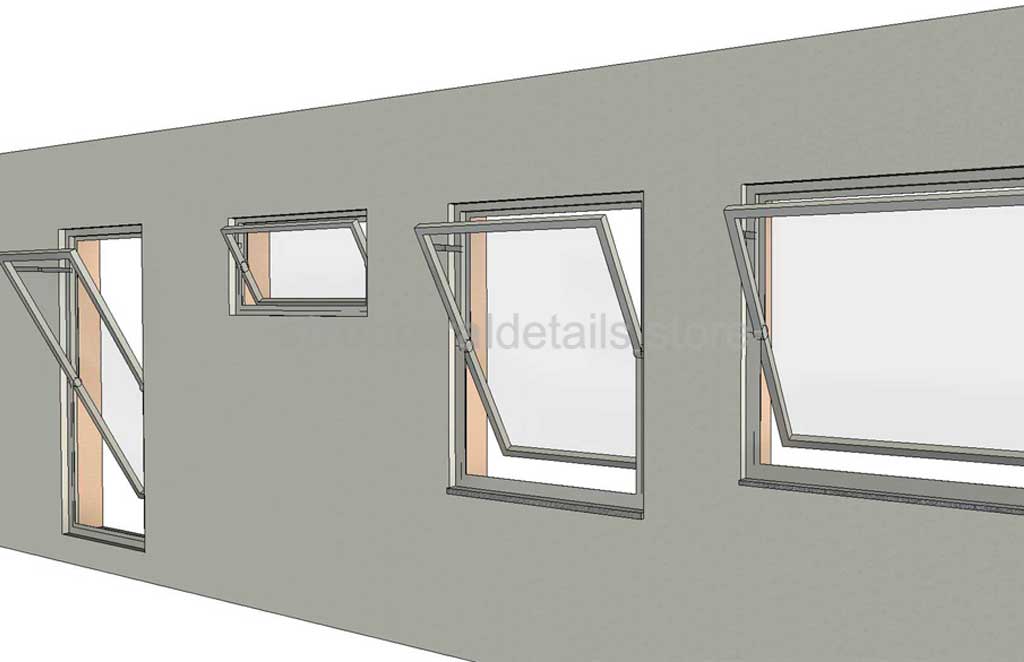

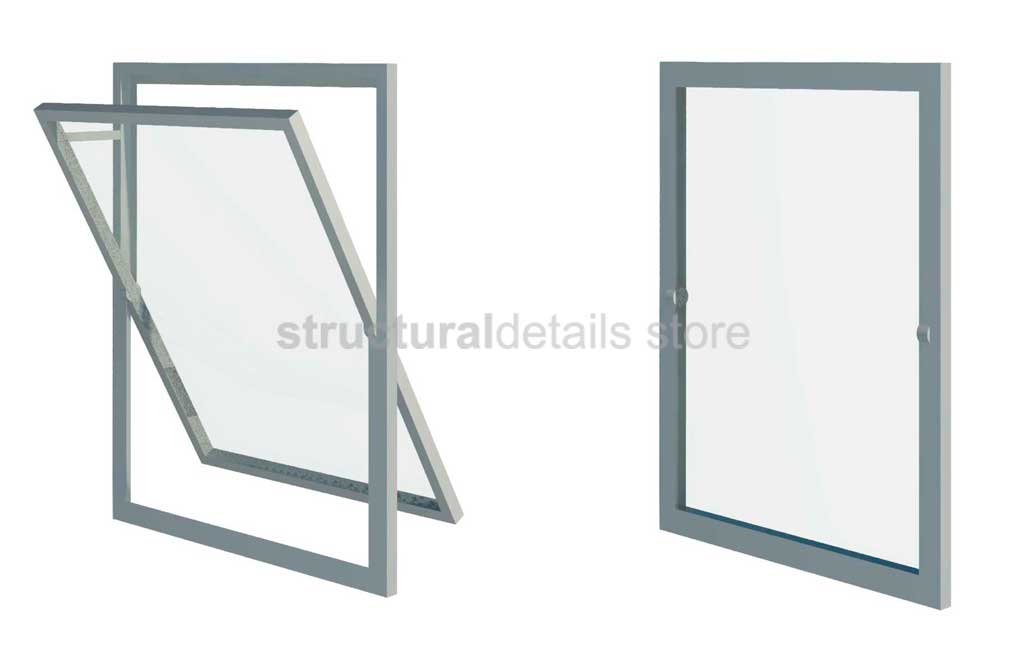

Fully Parametric Revit Family for a horizontal axis Pivot Window. Partially pivot opening window, 30degrees maximum opening with safety hinges.

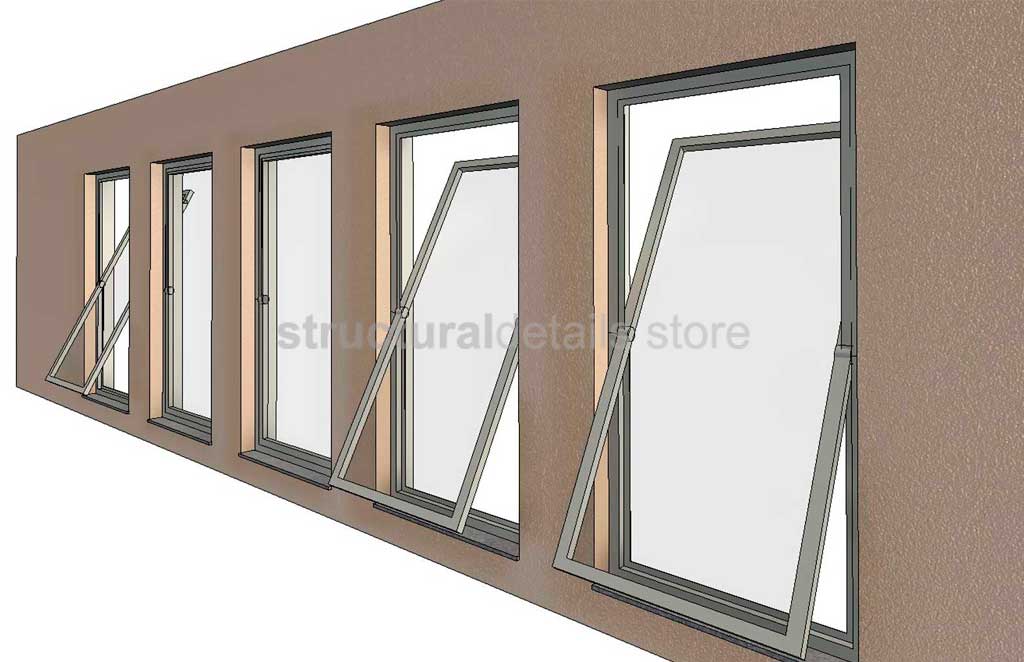

Model is fully parametric, controlling all design aspects of the model to match any design requirement. This is a wall based family and can be place on any project wall. Window sill elevation parameter as well as width and height can produce a large number of window type variations.

Instance parameter for graphical representation of window being closed or open.

ATTRIBUTES: Revit Version : 2022, Family Type : Wall Based Window, File Extension : .rfa

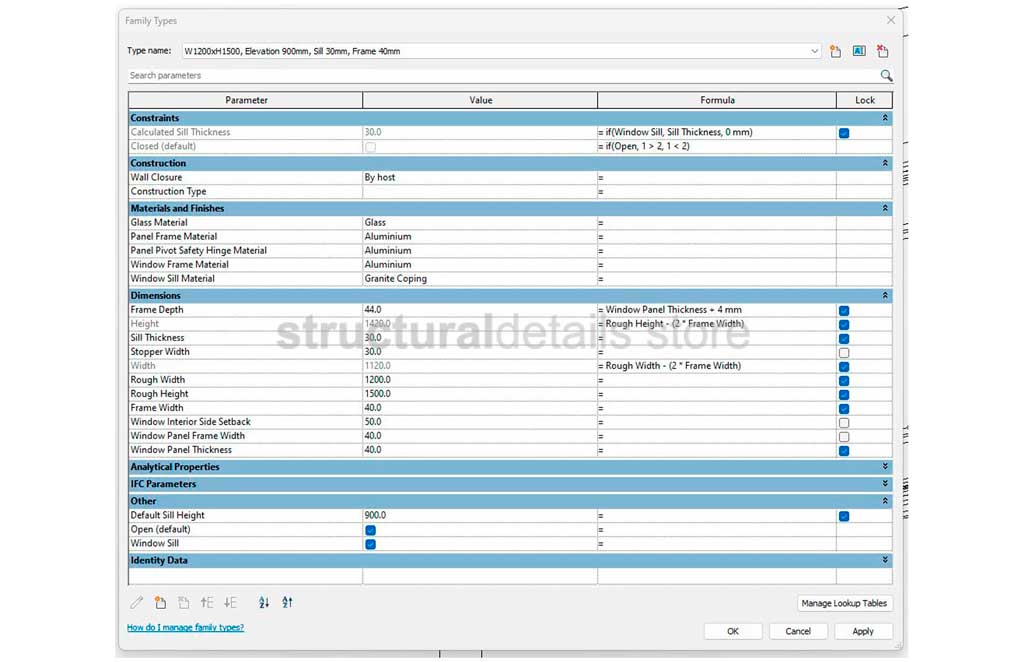

PARAMETERS:

Window Width and height

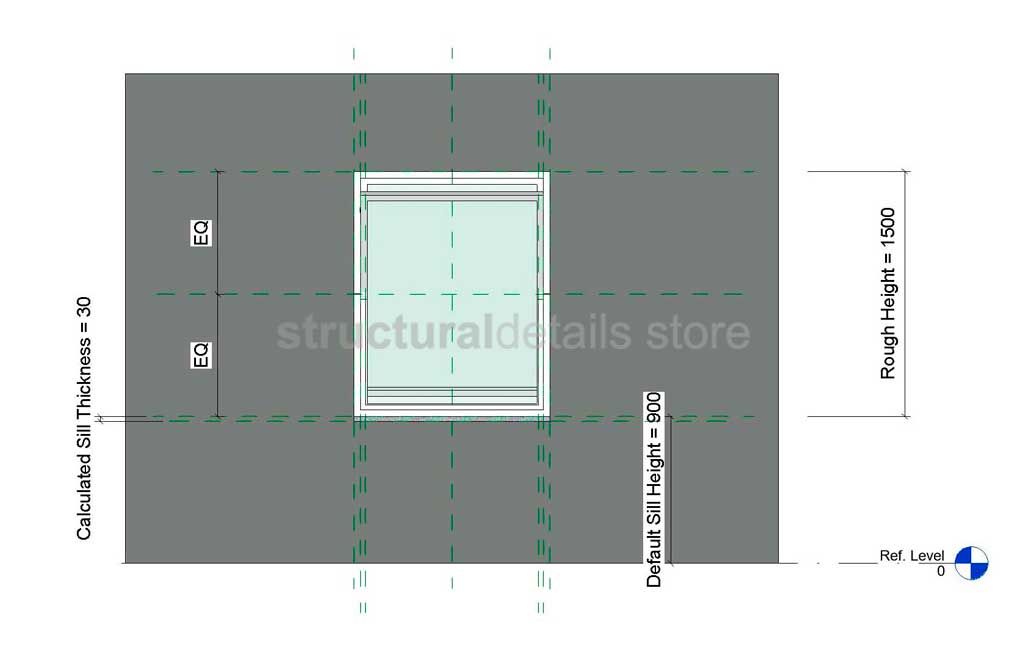

Window Sill Elevation
SIll option ON/OFF
Sill thickness
Window Panel Frame Width and Depth
Window Frame Width
Window Interior Setback
Stopper Width
Open/Close Option ON/OFF
ALl materials are parametric
