Photovoltaic Solar Panels

Photovoltaic Solar Panels

€10,00 EUR
€10,00 EUR
Sale Sold out

PARAMETRIC REVIT FAMILY - DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

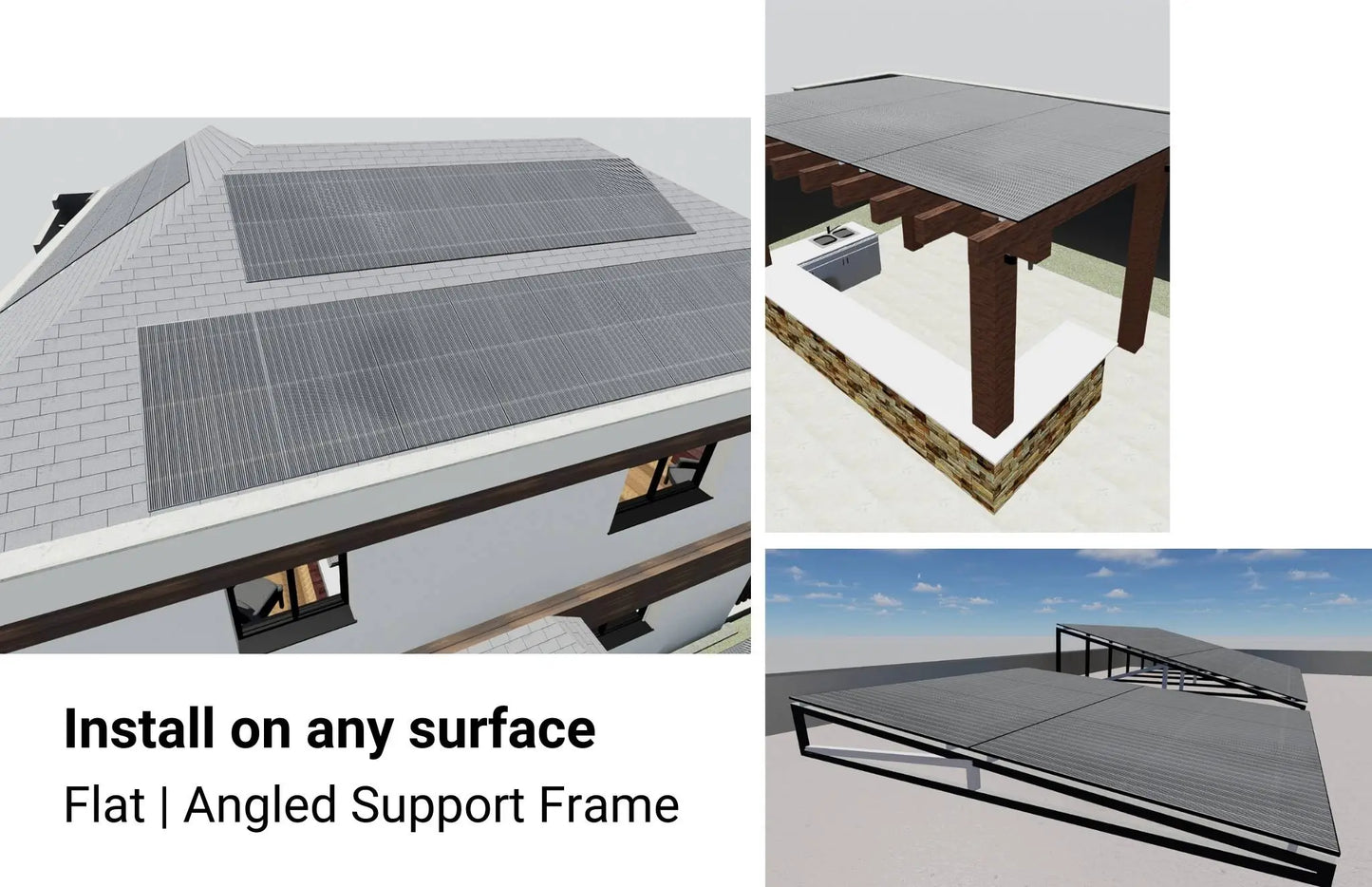

This fully customizable revit model will change the way you design solar panel systems, offering a face-based generic model that seamlessly integrates onto any project surface, be it a slab, roof, floor, or any other surface you desire.

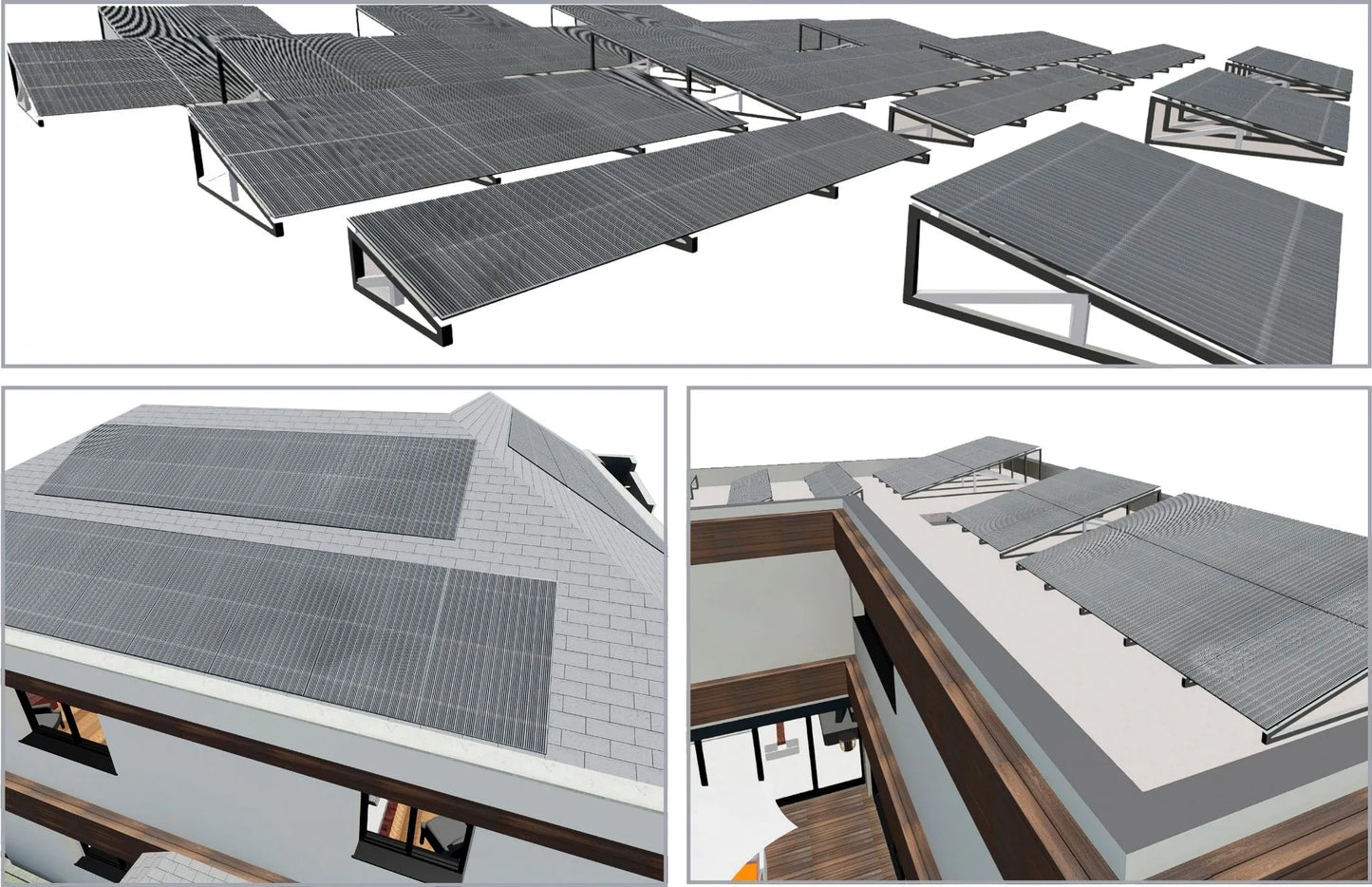

With its incredible versatility, you can create an extensive range of solar panel setups, from flat surface mounted systems to frame mounted configurations.

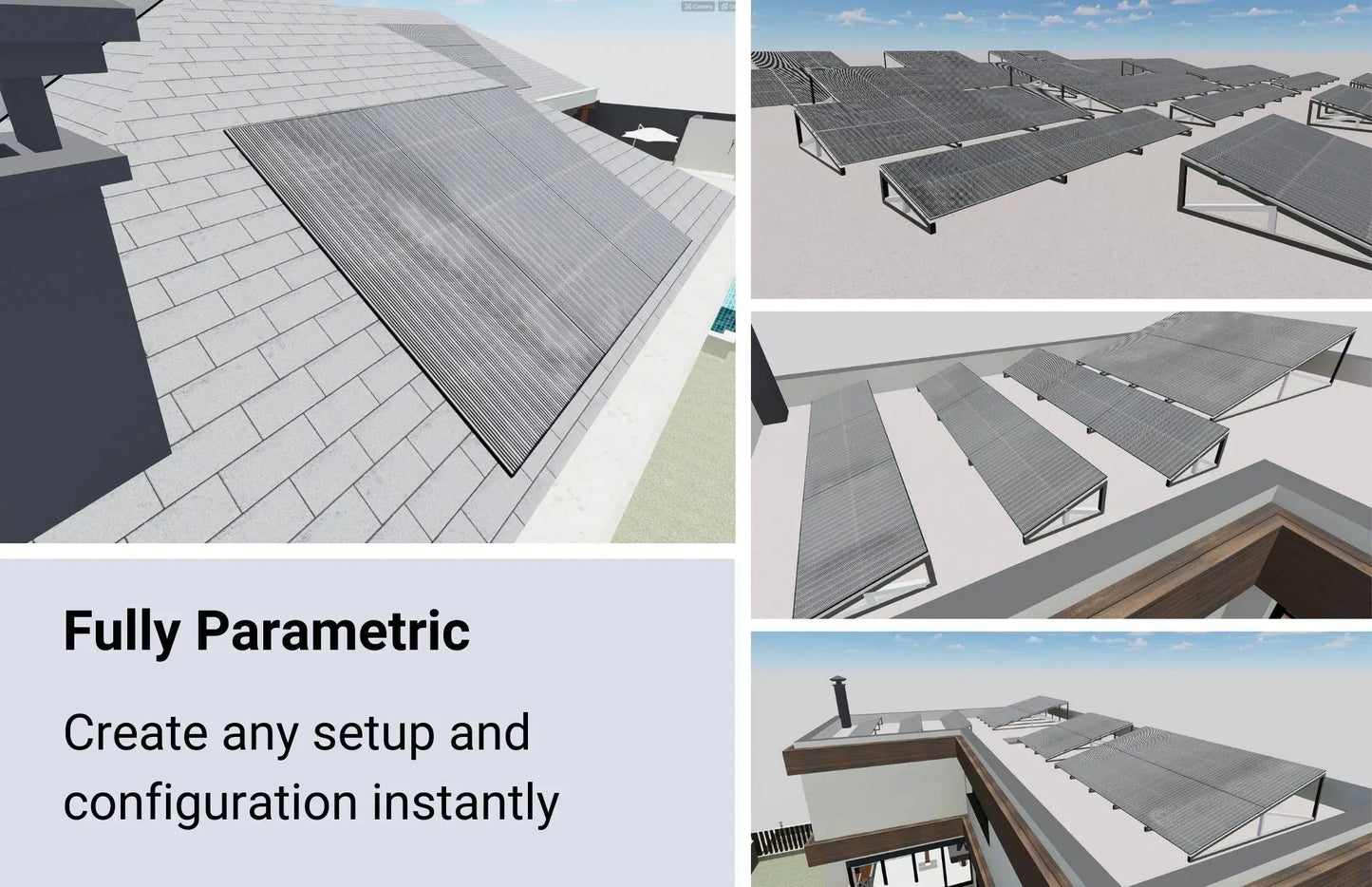

Fully Parametric

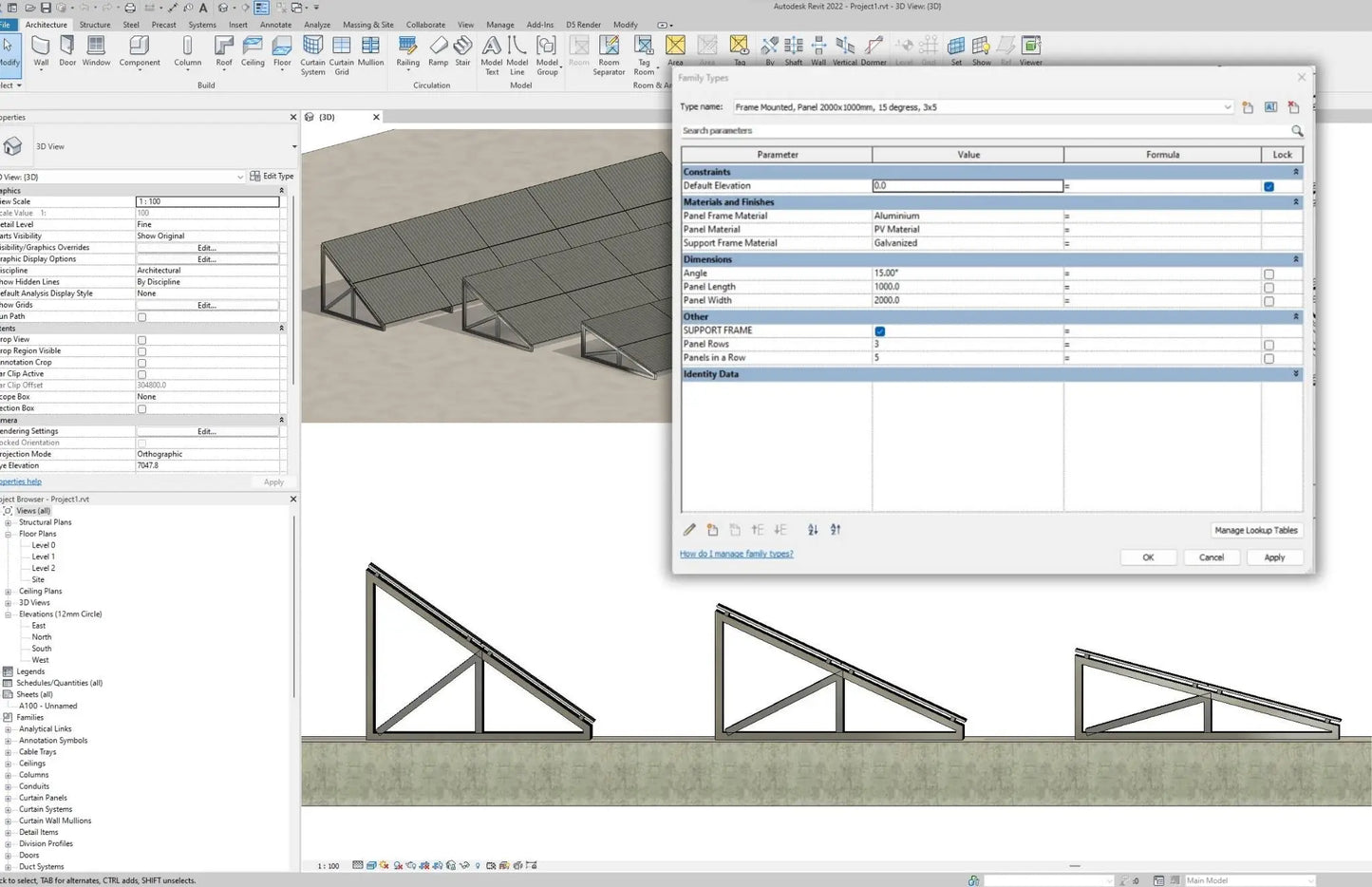

With the power of parametric design at your fingertips, you have complete control over every aspect of your solar panel setup. Our family parameters allow you to effortlessly tailor the panel size, mounting angle, panel rows, number of panels per row, and even the materials used. As you make adjustments, the model automatically calculates and displays all other dimensions, ensuring a precise fit for your specific project requirements.

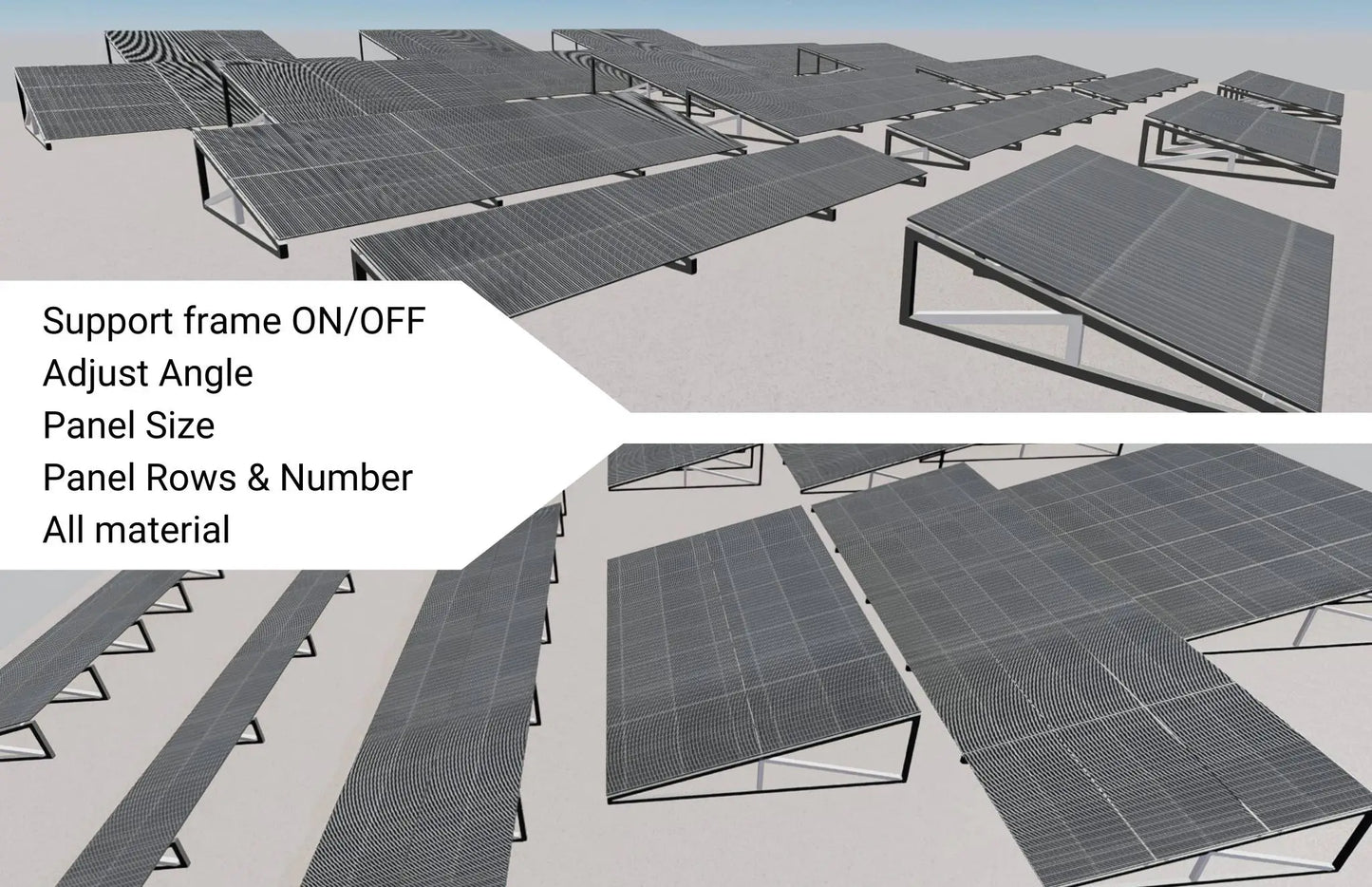

PARAMETERS

Family parameters allow the user to create any variation of solar panel setup necessary.

  • Panel width
  • Panel Length
  • Angle
  • Rows of panels
  • Panels per row
  • Option for surface mounted or frame mounted
  • Spacing between panels horizontally and vertically
  • All Materials

PRESET FAMILY TYPES

Large number of pre-built family types, appr. 80 different system setups, ready to be used, are included with this package as a text file that can be automatically read by REVIT. By importing the model, the system opens the list of available family types to be imported. User can select, one or multiple types or even all of them to be imported.

Many more system setups can be created by the user.

ATTRIBUTES: Revit Version : 2022, Family Type: Face Based Generic Model, File Extension : .rfa
