Oval Shaped Column

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

This is a fully parametric revit structural column family for an Oval Shaped Column. Column dimensions are fully parametric and can be adjusted by the user to match any project design.

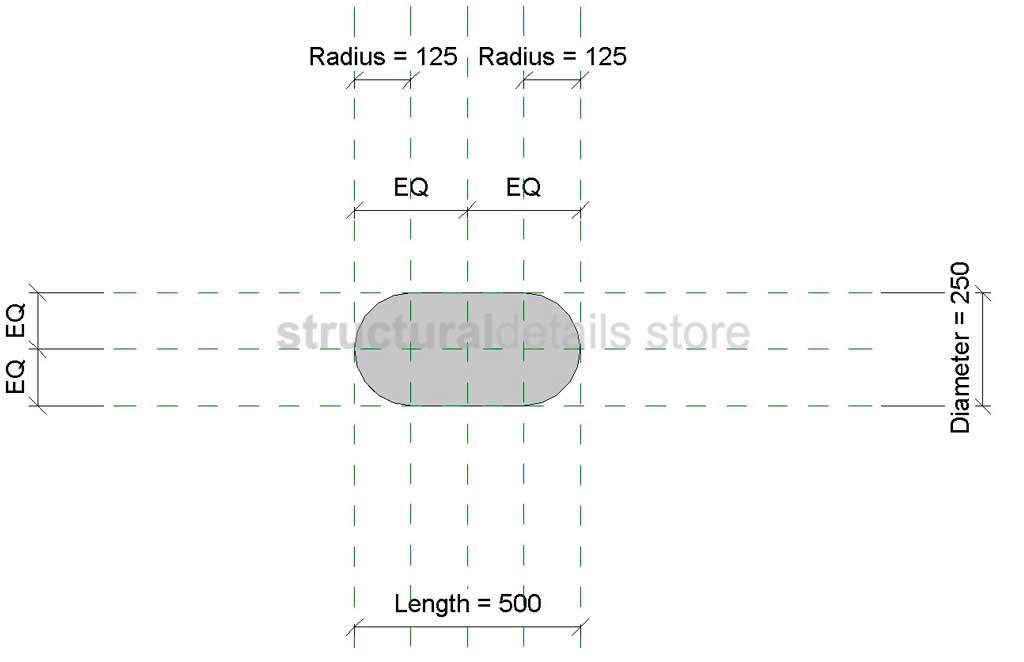

Overall length and width of the column as well as the semi circular shape diameter. Column can be inserted into any project and automatically take the height of the levels selected. Column offset from reference levels can also be adjusted.

ATTRIBUTES: Revit Version 2022, Family Type : Structural Column, File Extension : .rfa

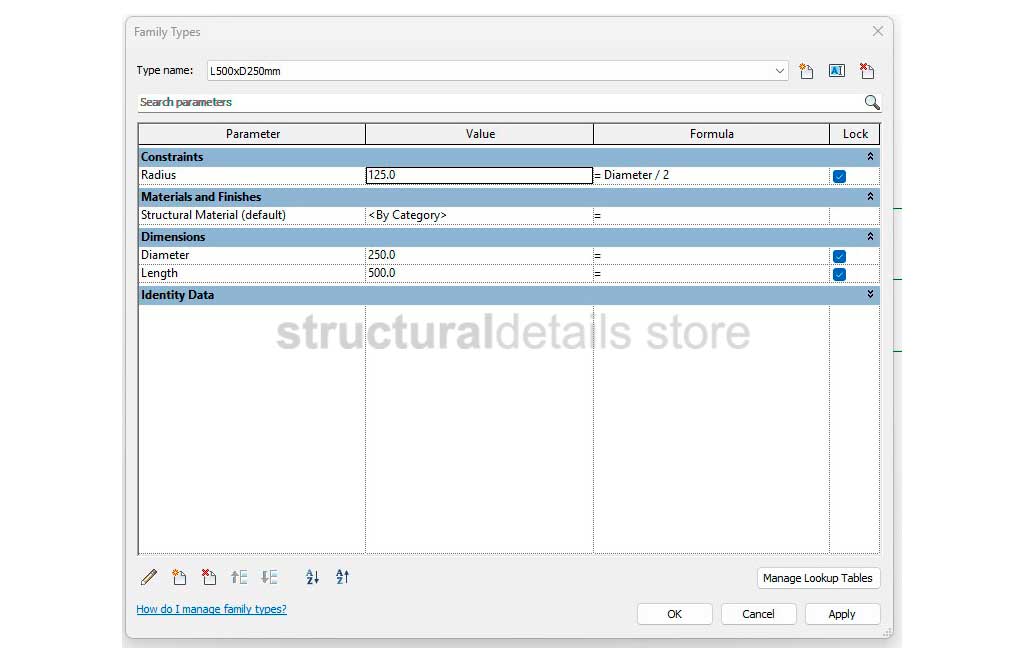

PARAMETERS:

• Column Overall Length
• Diameter ( width of the column )
• Parametric Material

FAMILY TYPES:

L500xD250mm
L600xD250mm
L600xD300mm
L500xD300mm
L750xD250mm
L750xD300mm
L800xD300mm
L750xD400mm
L800xD400mm

User can create unlimited number of column family types and variations for every project.
