Louvre Curtain Wall Panel

Louvre Curtain Wall Panel

€10,00 EUR
€10,00 EUR
Sale Sold out

PARAMETRIC REVIT FAMILY - DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

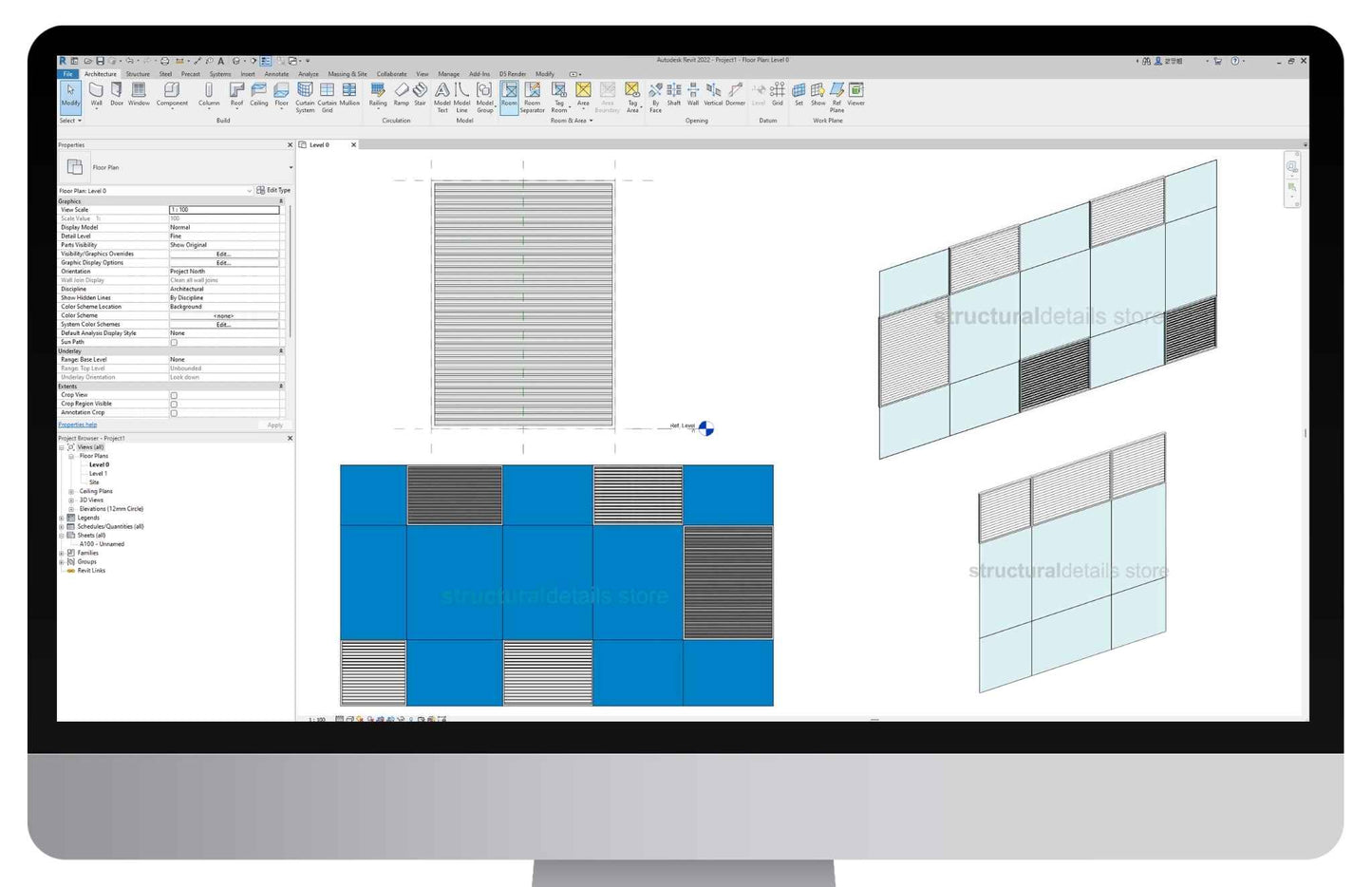

This is a revit family for a curtain wall louvre panel. Family is fully parametric. As a curtain wall panel family it can replace any curtain wall panel with a louvred panel for ventilation, in any project. Visulisation parameters control how the model is illustraded in the project, with selection for the blade profile, blade angle, and size.

Louvre panels are usually installed on staircase glass curtain walls for interior ventilation and fire ventilation.

Fully Parametric

Almost all aspects of the model can be altered via the parameters available including materials. All family parameters are shown below.

The Width and Height of the panel are automatically adjusted to fit into the curtain wall panel selected based on the curtain wall grid. Frame depth is automatically calculated based on the louvre blade height. Number of blades and spacing between them is also automatically calculated based on the panel height and louvre blade height, in order for the blades to fully close when parameter angle is selected at 90degrees.

3 Louvre Blades Selection : Designer can select any of the 3 available louvre blade profiles. Oval Shaped, Rectangular Shaped, S-Shaped

Control Louvre Blade Angle : With one single angle parameter, you can select for the louvre panel blades to mode from fully closed at 90 degrees to fully open to 0 degrees.

ATTRIBUTES : Revit Version : 2022, Family Type : Curtain Wall Panel, File Extension : .rfa

PARAMETERS

  • Blade Angle
  • Frame Width
  • Louvre Blade Height and Thickness
  • Panel offset from curtain wall centerline
  • Materials ( Frame and Louvres )
  • Louvre Shape selection ( oval shaped, rectangular shape and S-Shaped )
