Line Based Horizontal Bars Railing

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

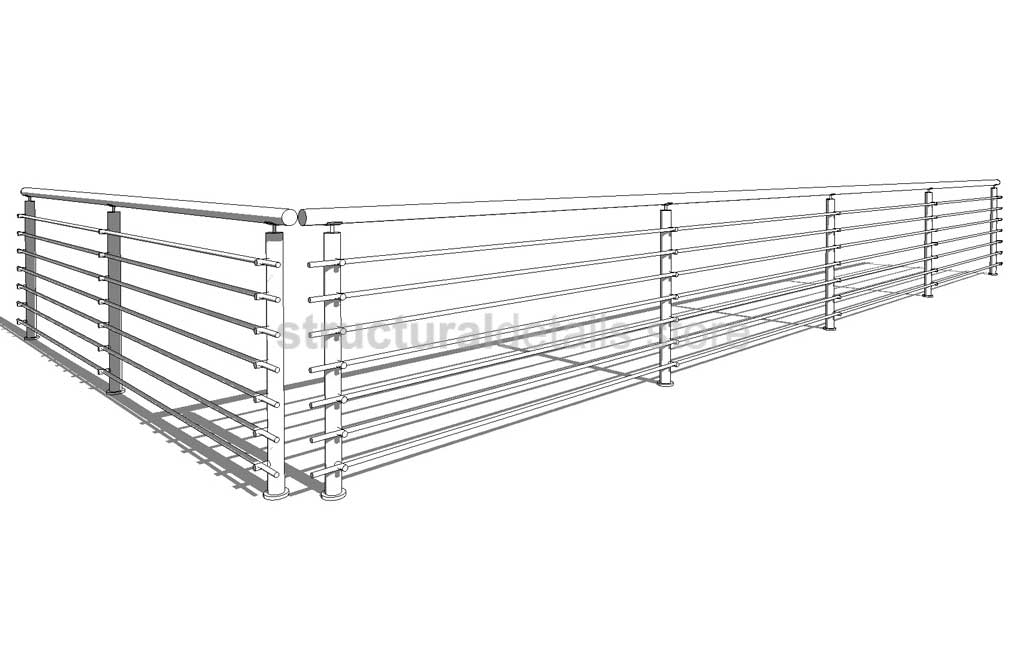

This is a fully parametric line-based Revit generic model for a Horizontal Bars Railing. The model consists of a top handrail, a side lower elevation handrail and horizontal guard rails. All features of this railing are parametric and can be controlled by the user.

Top hand rail diameter is adjustable using one of the parameters together with the lower level handrail and the support posts diameter. The horizontal bars diameter is also parametric as well as the gap between them. The number of horizontal guard rails is automatically adjusted based on the given overall height in order to leave the specified gap between them.

The materials of this model can be changed to make it an aluminium railing, INOX railing or even a stainless steel balustrade.

Railing is entered into the project by just drawing a line or selecting existing lines thus the line-based family type. Number of support posts are also automatically calculated so that there is a support post at intervals about 1,5m which is the most used spacing for maximum safety.

Secondary lower level handrail can be turned on and off according to the design needs.

All materials are parametric.

ATTRIBUTES: Revit Version: 2022, Family Type: Line Based Generic Model, File Extension: .rfa

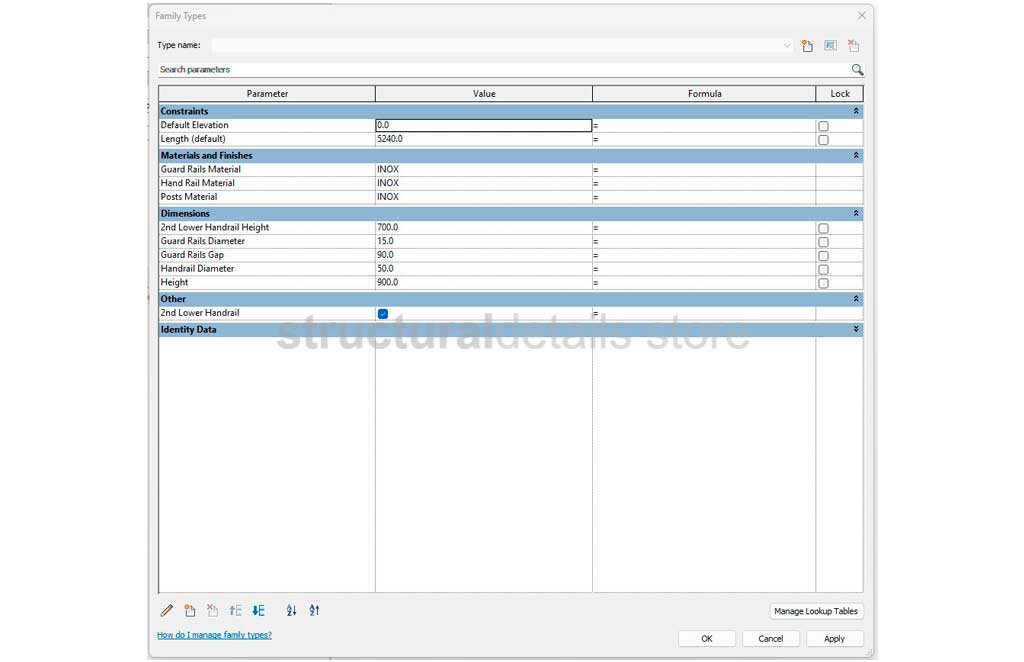

PARAMETERS:

Railing overall height
2nd Lower level handrail height
Handrails diameter
Guard rails diameter
Guard rails gap
Option to turn on and off the lower level handrail
All materials
