L Shaped Office Desk

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

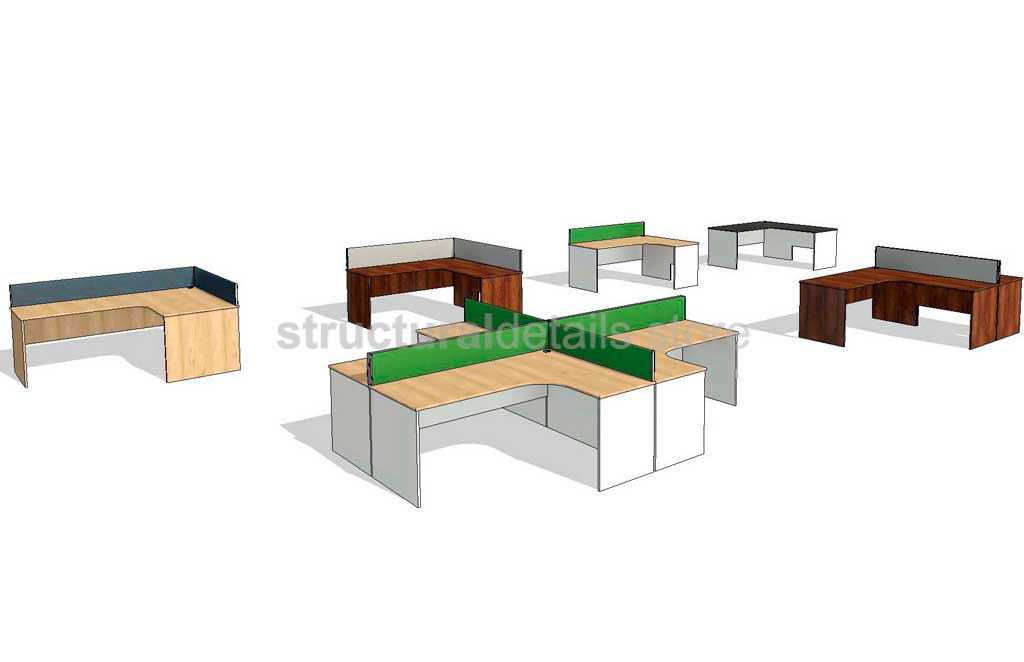

This is a fully parametric Revit Family Model for an L Shaped Office Desk. All parameters of the desk are fully controlled by the user, width, depth, height, side length and depth as well as the screen partitions height with options to turn them off and on as desired.

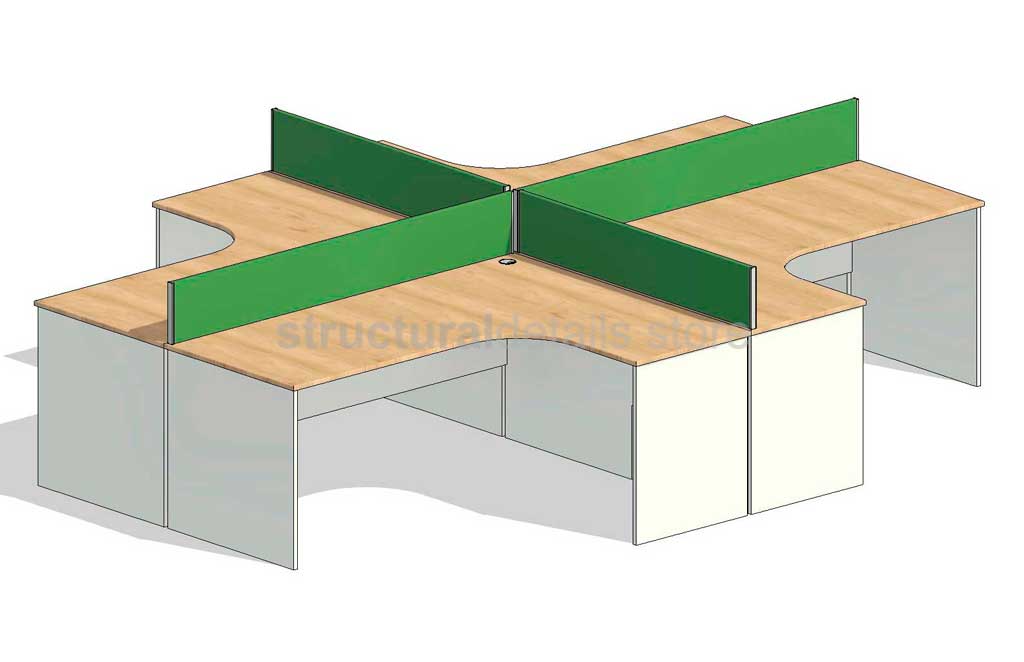

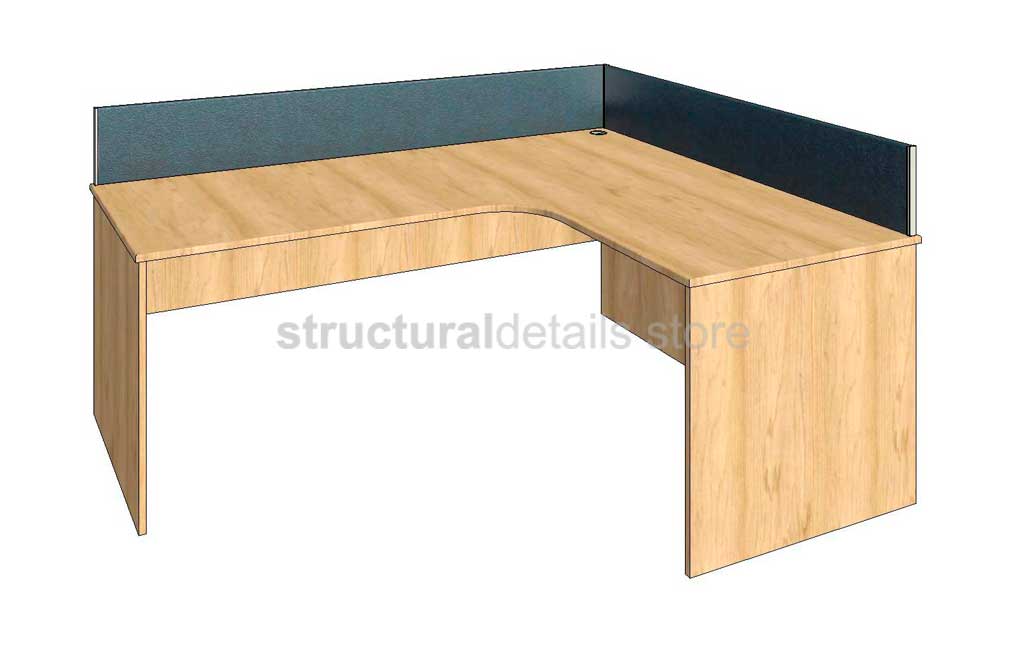

All dimensions of the desk are fully controlled alongside with all the materials used. Screen partitions can be turned on and off either for the front screen and/or for the side screen.

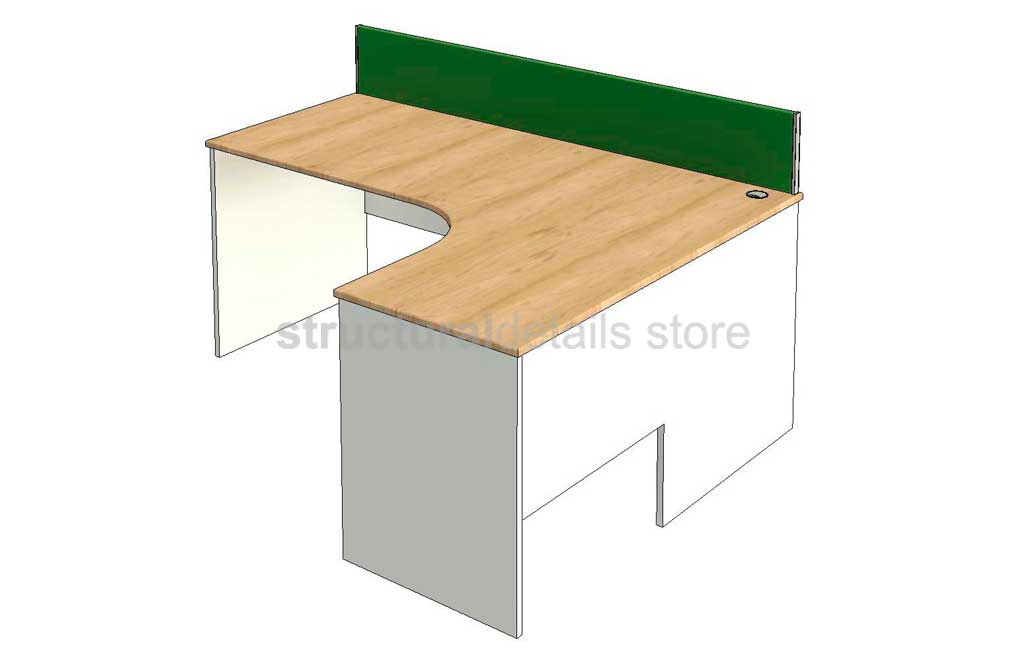

The also features a wire hole with a cap which is fixed at the corner of the desk. The whole is not parametric.

Family can be flipped on both axes in order for correct desk placement inside every office space in Revit Model.

ATTRIBUTES: Revit Version : 2022, Family Type : Generic Model, File Extension : .rfa

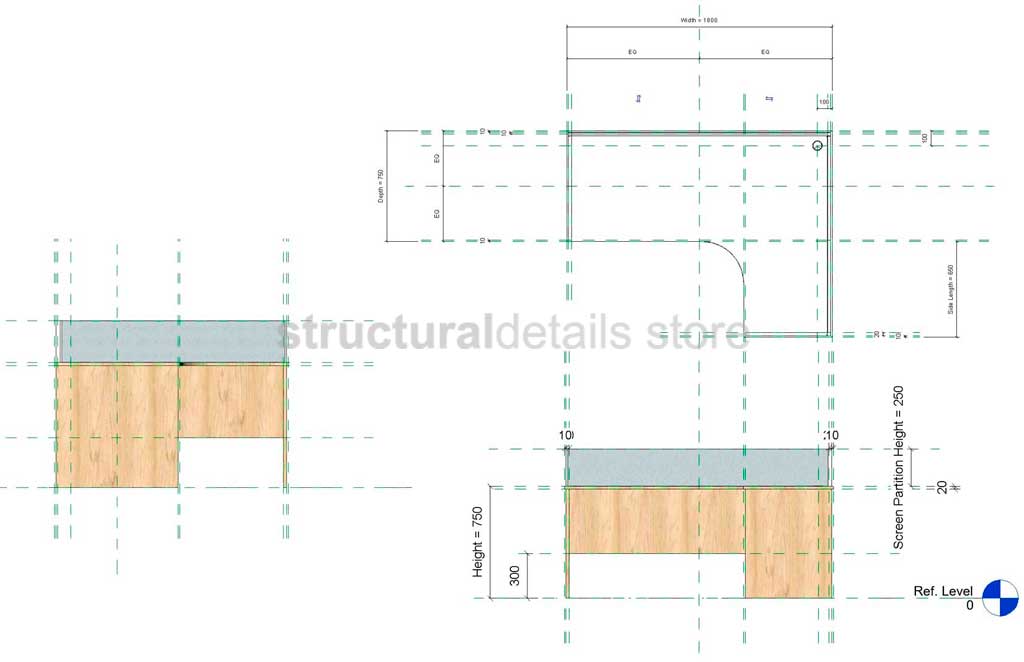

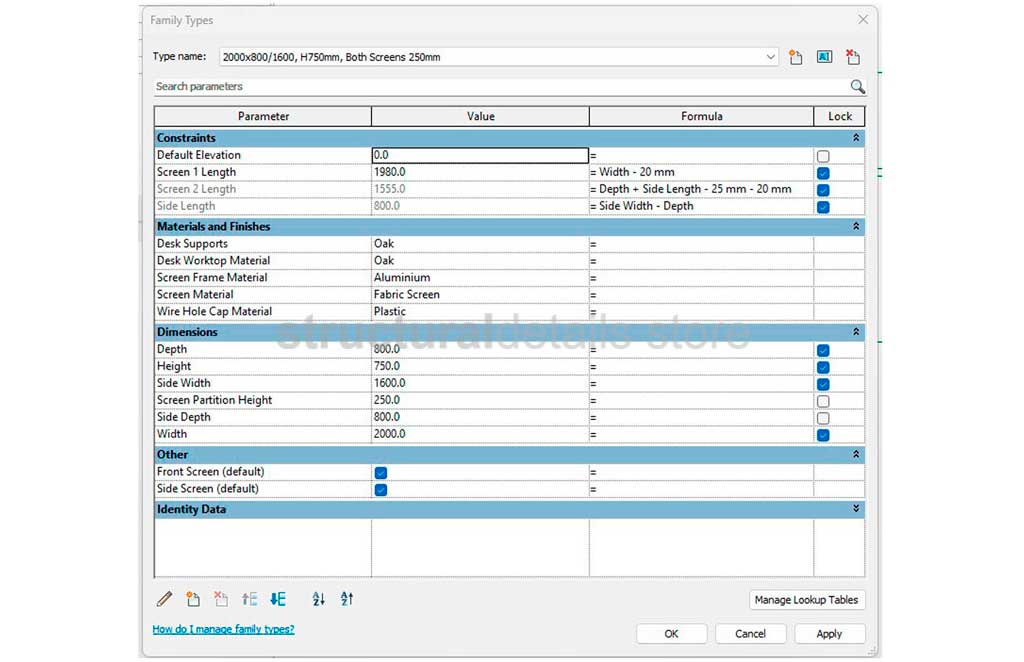

PARAMETERS :

• Desk Width, Depth, Height
• Side Width
• Side Depth
• Screen Partitions ON/OFF option separately for front and side screens
• All Materials ( desk worktop, desk supports, screen material and screen frame, wire hotel cap material.
