L Shaped Column

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

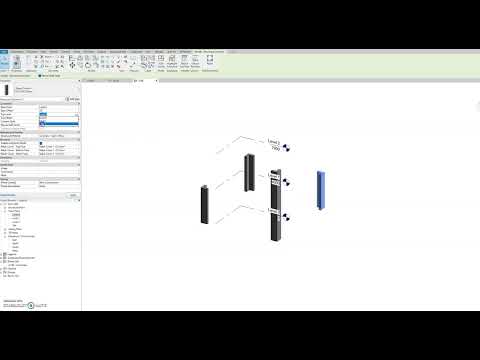

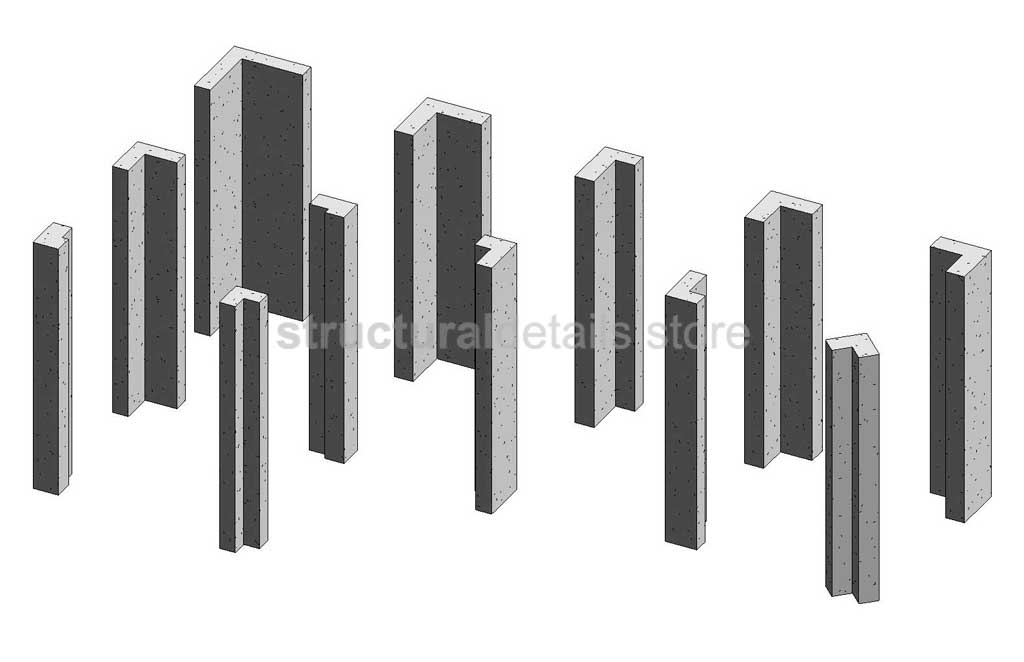

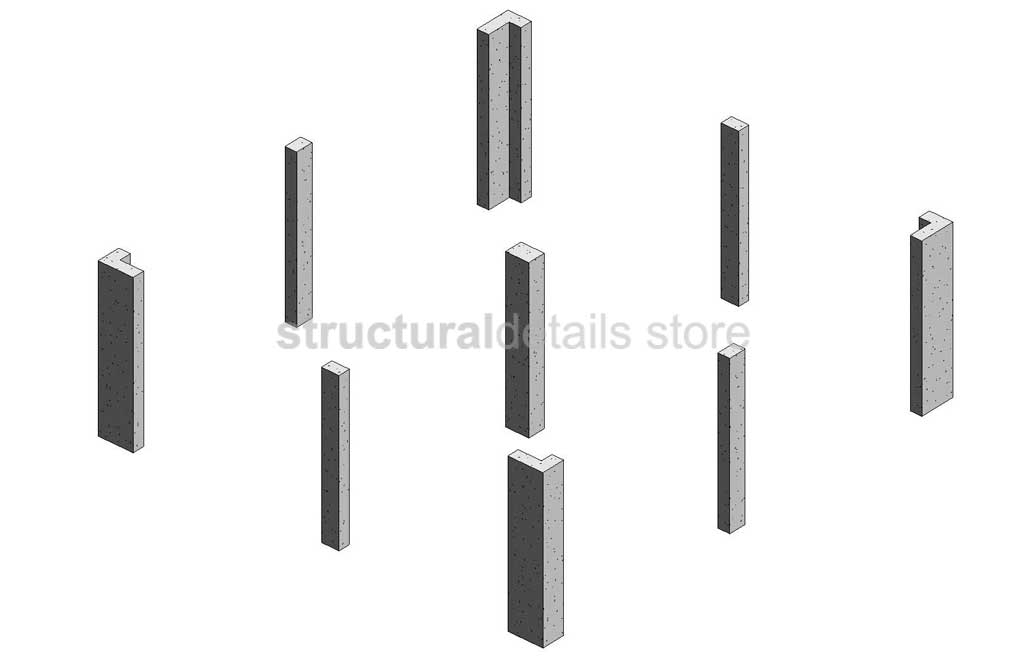

This is a fully parametric revit family for a concrete L-Shaped Column. All dimensions of the concrete column can be changed by the user. It can be rotated and flipped on both axes to match the design of any project.

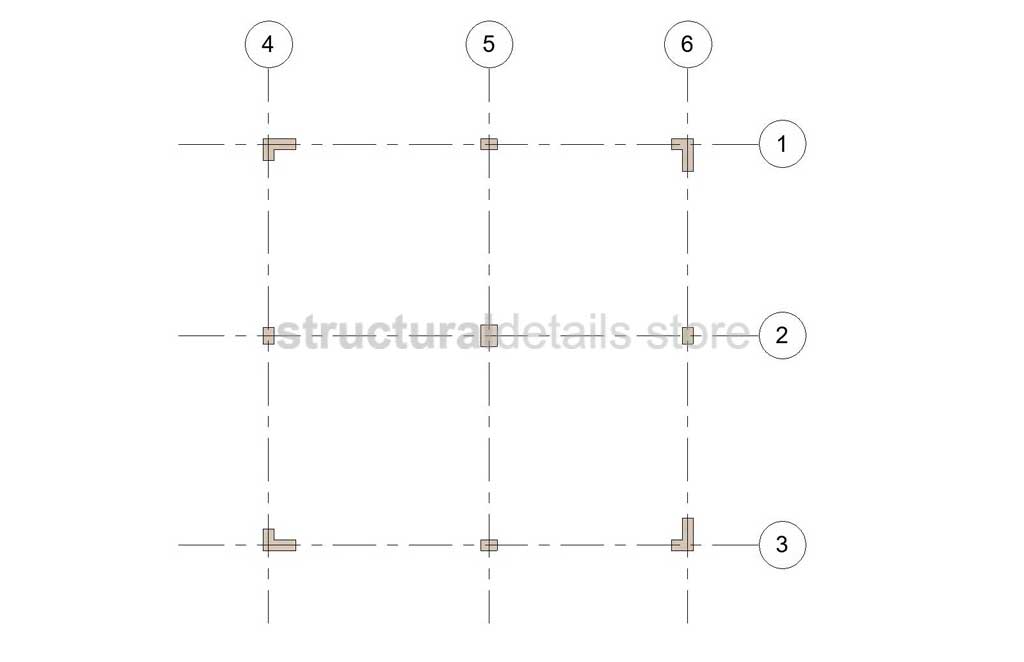

Both sides, length and width, can be changed. Column can either have similar widths on both sides or different ones. By rotating and flipping on an axis, and changing the column dimensions, it can be adjusted to match any design.

This revit family file belongs in the structural column revit category and can be inserted into any project.

ATTRIBUTES: Revit Version : 2022, Family Type : Structural Column, File Extension : .rfa

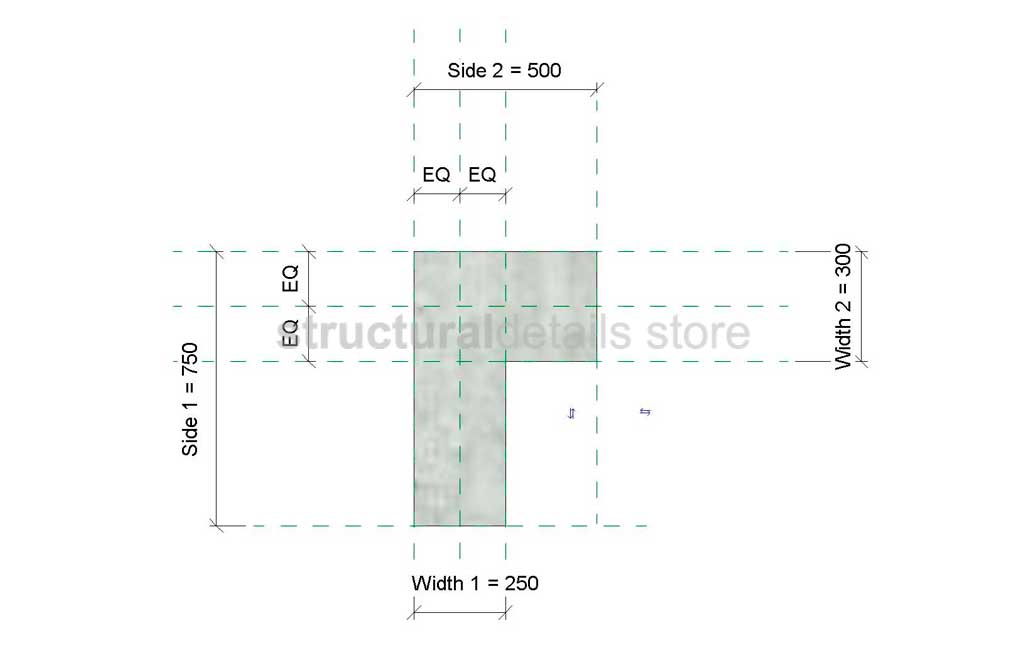

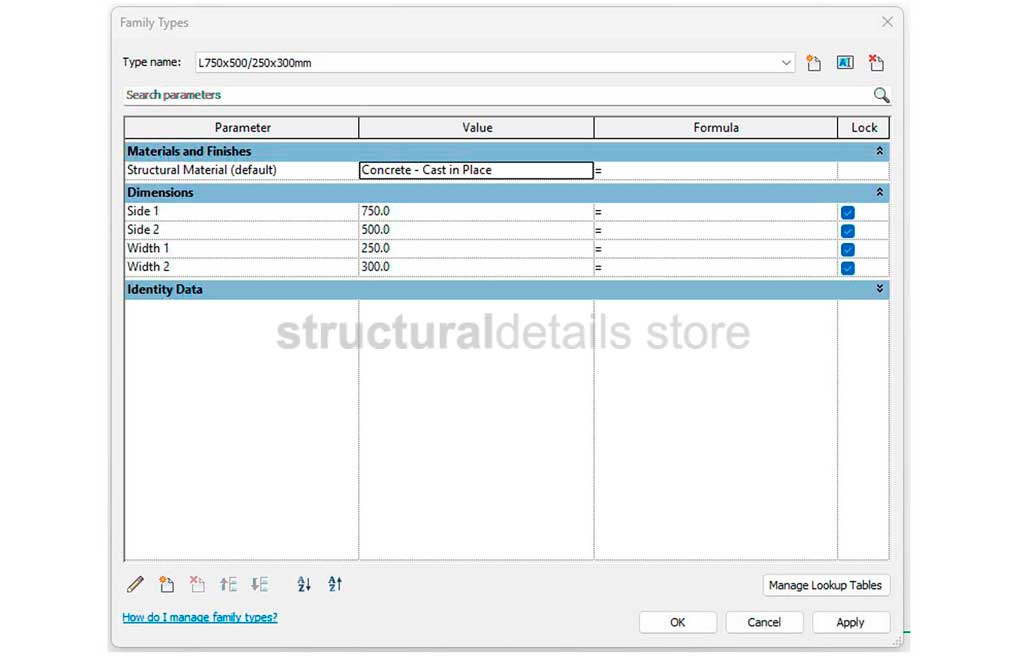

PARAMETERS:

• Side 1 Length
• Side 1 Width
• Side 2 Length
• Side 2 Width
• Parametric Column Material

READY MADE FAMILY TYPES:

• L900x600/300mm
• L600x600/300mm
• L750x750/250mm
• L1000x1000/300mm
• L500x500/250mm
• L800x800/300mm
• L900x600/300x250mm
• L1200x1200/250mm
• L750x500/250mm
• L600x400/300mm
• L750x500/250x300mm
