Glass Balustrade

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

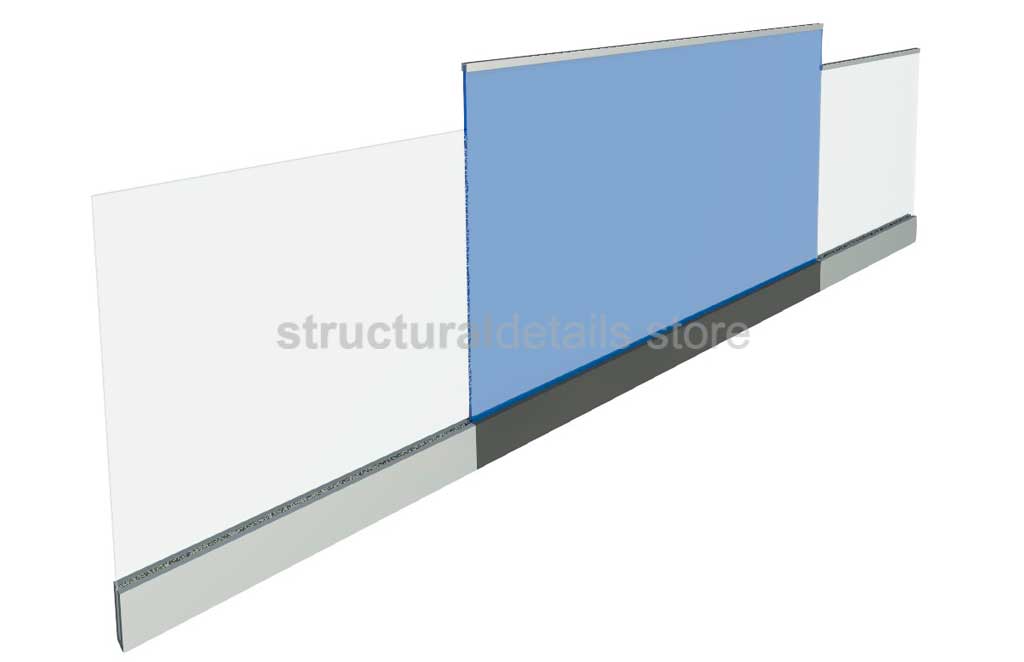

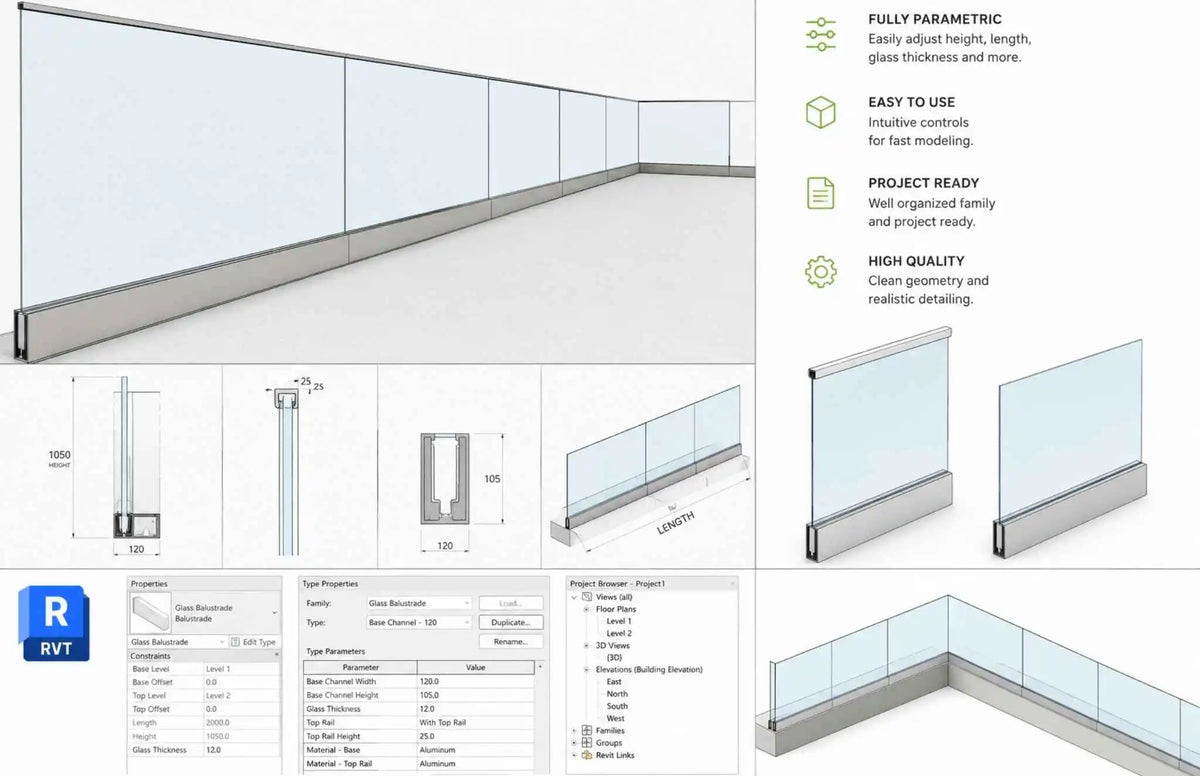

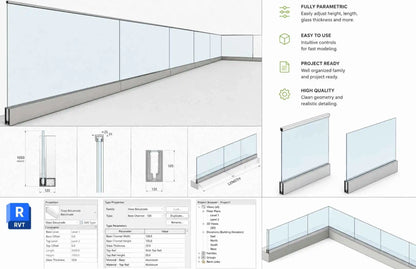

Full parametric revit glass balustrade family. Generic Model that can be placed on any workplane surface. Offset from workplane is also available in case family component needs to be raised or lowered with respect to the reference plane it was inserted onto.

Attributes: Revit Version : 2022, Family Type : Generic Model, File Extension : .rfa

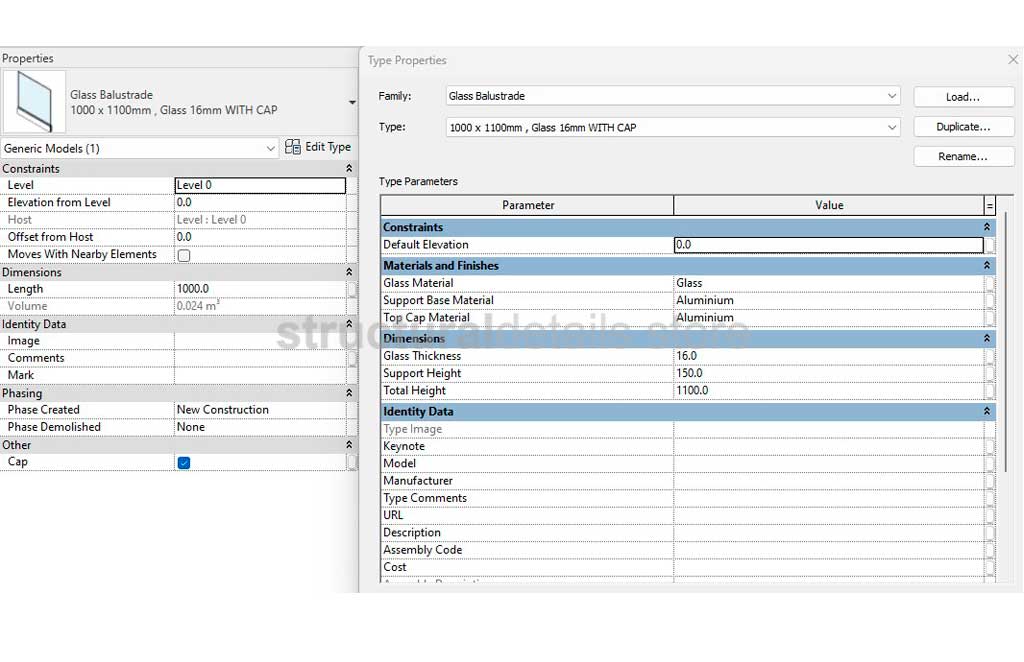

Parameters:

• Length ( Instance Parameter )
• Total Height
• Support base height
• Glass Thickness
• Top Cap Graphical ON/OFF ( Instance Parameter )
• Material parameters for support base, glass and top cap


Family can be placed on any work plane. User can change and create unlimited variation family types with the above parameters to fit any project. Can only be place as straight lines. Family can be cut through sections.

Length and top cap are instance parameters meaning that can be changed instantly for any component without creating a new family type. Just place onto any reference plane, adjust to the desired length. Through the family edit one can manipulate all other parameters if needed to suit every project’s needs. Height can be changed to turn this balustrade into veranda glass screens using the same support base profile again with the option for top cap.
