Fully Parametric Fluted Ribbed Wall Based Panel Family

Fully Parametric Fluted Ribbed Wall Based Panel Family

€4,00 EUR
€4,00 EUR
Sale Sold out

PARAMETRIC REVIT FAMILY - DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

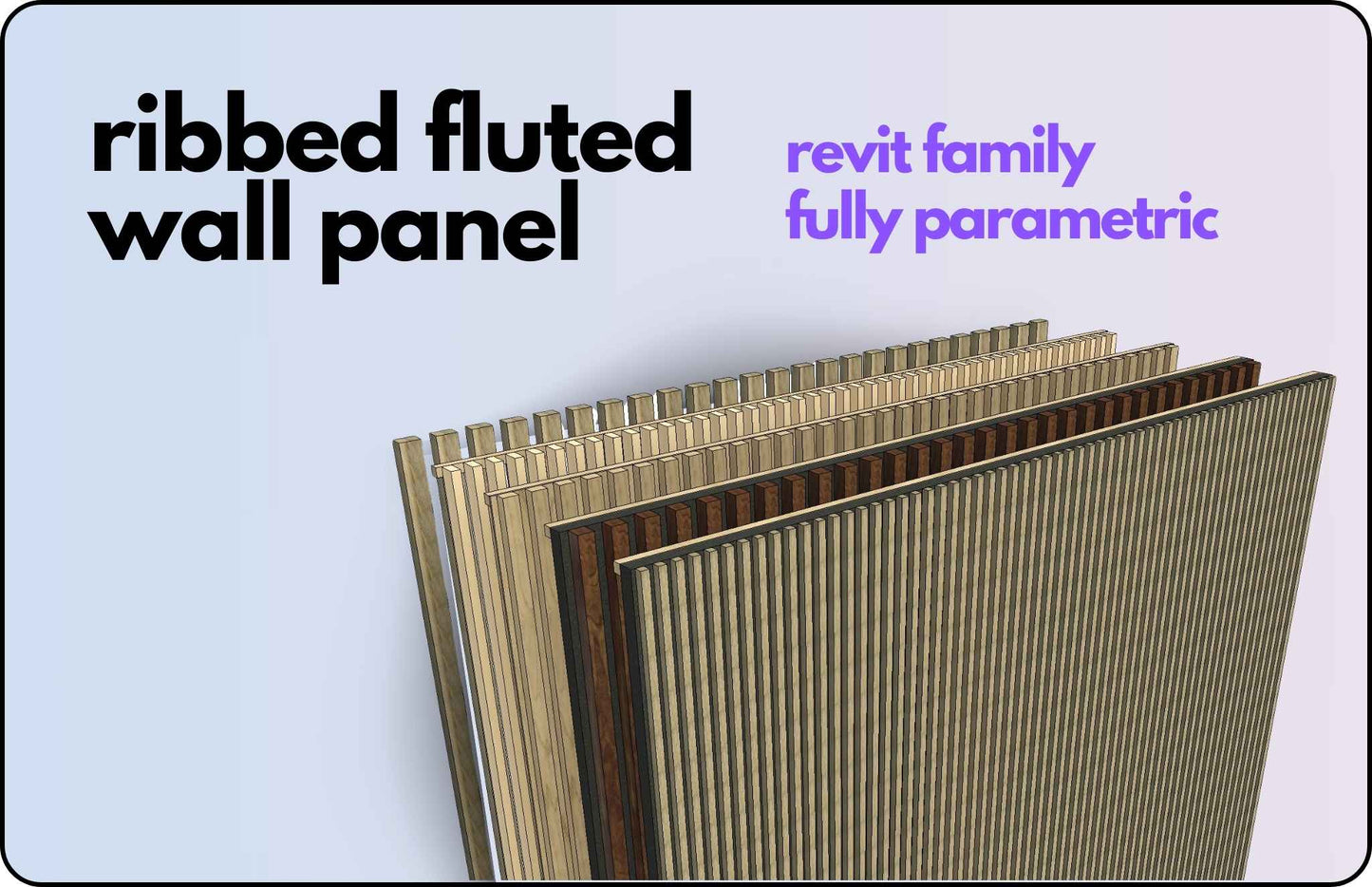

Using this parametric Revit Fully Parametric Fluted Ribbed Panel Family will transform your architectural designs. Ready made digital product will empower you to create extraordinary wall compositions with unprecedented control, precision, and flexibility.

With effortless customization, this fluted ribbed panel family will put you in the driver’s seat of your revit models, allowing you to effortlessly fine-tune every element of your wall designs. From panel length and height to the size and spacing of the ribs, you have full control over the parameters, ensuring a seamless integration with your unique design vision.

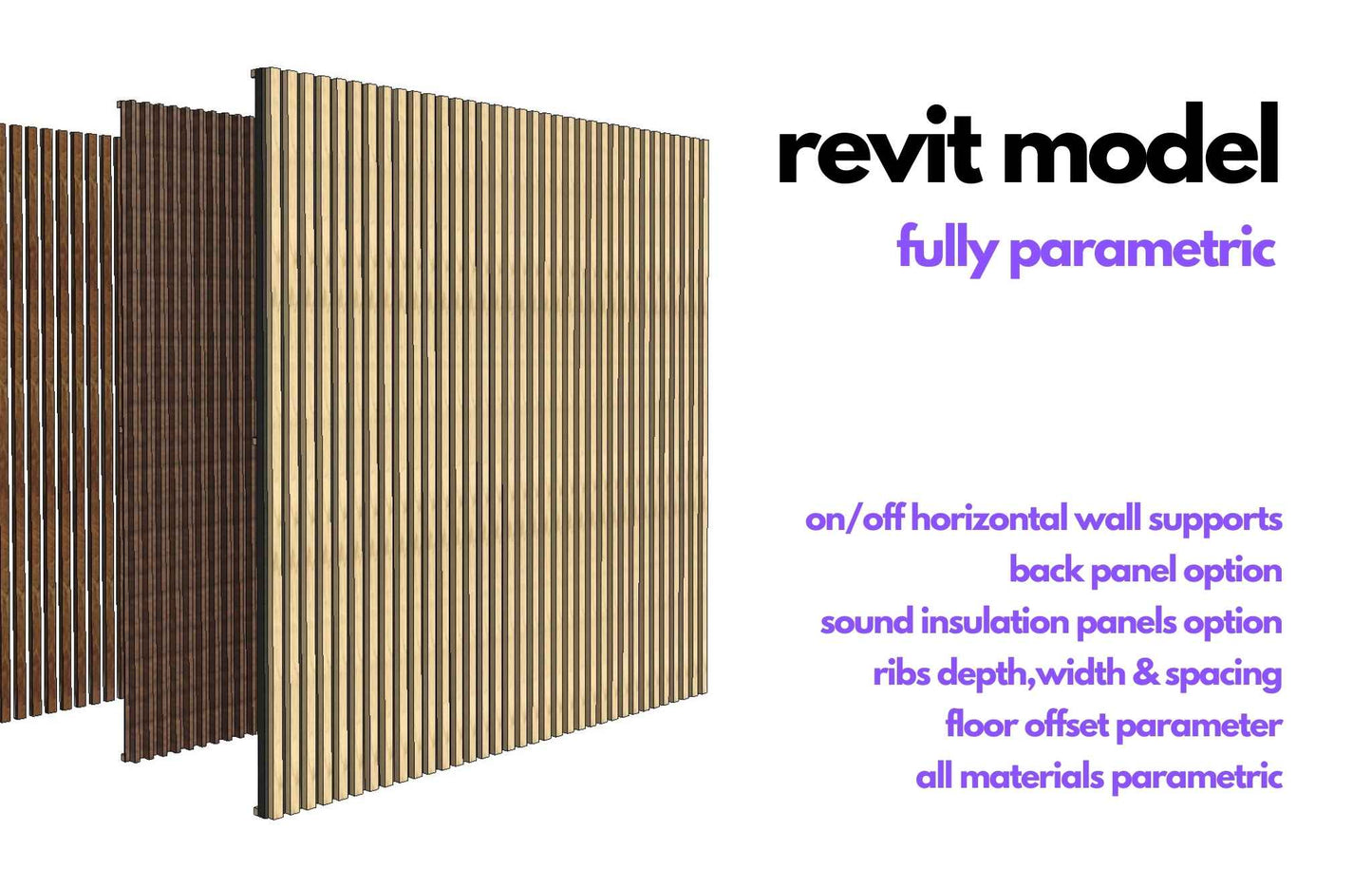

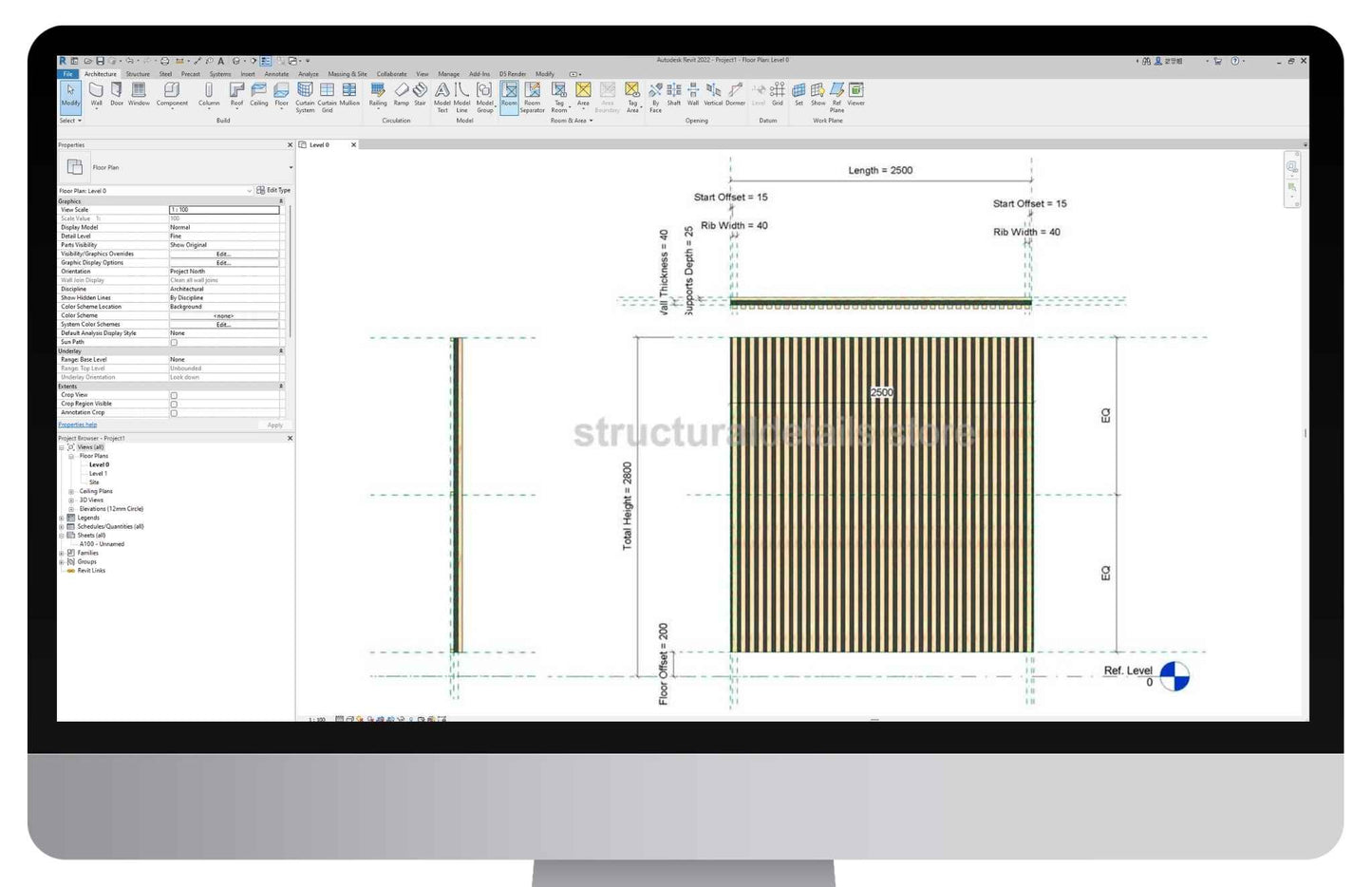

Fully Parametric: Almost all aspects of the model can be altered via the parameters available including materials. All family parameters are shown below.

Model can also be flipped on both vertical and horizontal axis for correct placement according to any project needs.

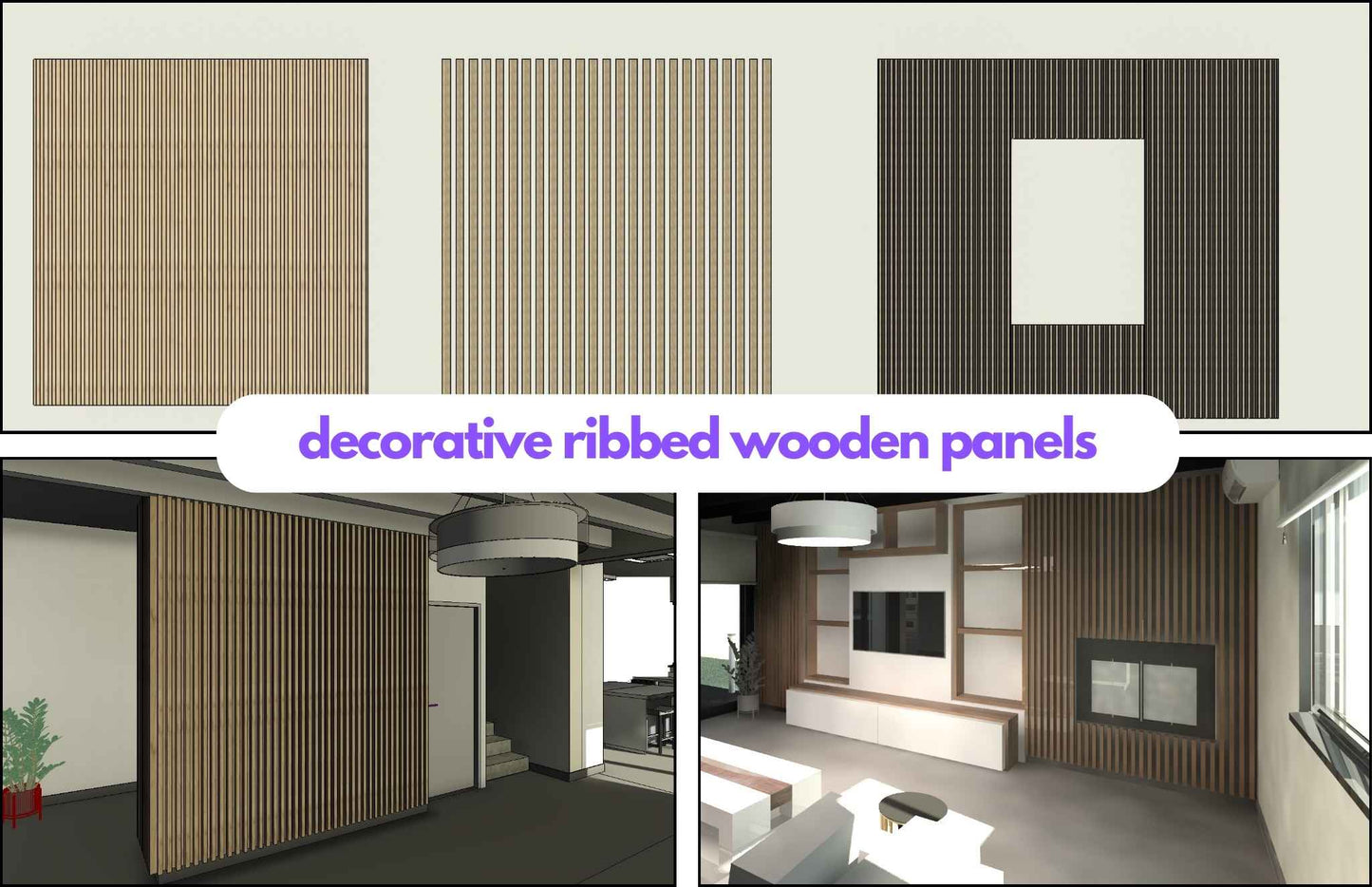

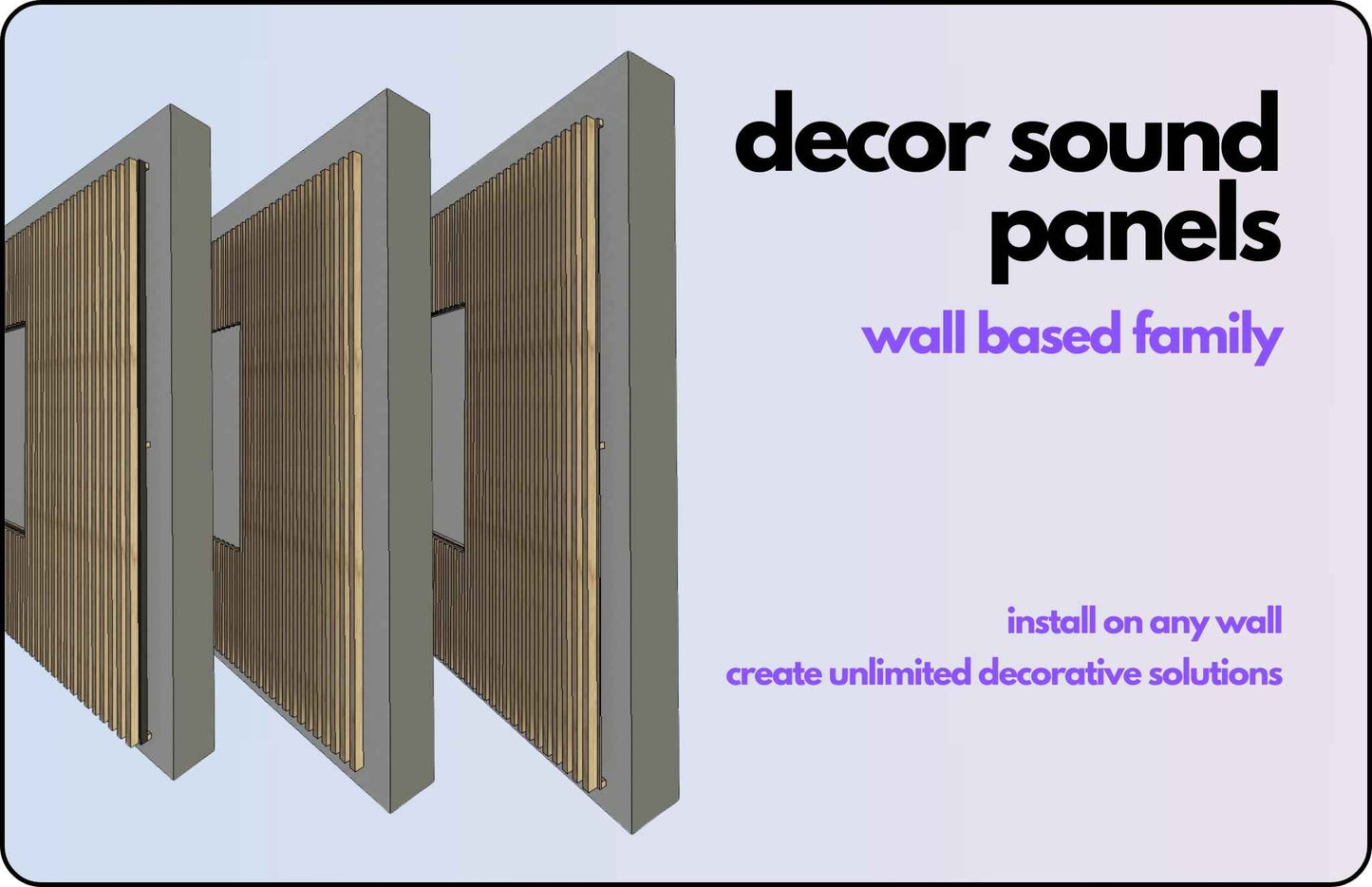

With the option to include a back panel behind the ribs, you can enhance not only the visual appeal but also the functionality of your spaces. Choose to incorporate sound insulation materials to create acoustically optimized environments, perfect for offices, conference rooms, or any setting where noise control is paramount.

We understand that every project has its unique requirements, which is why we’ve made sure you have complete control over the thickness of the back panel. Tailor it to your exact specifications, striking the perfect balance between elegance, durability, and performance.

And for those seeking structural stability, we offer the option to include wall supports at the back. Achieve perfect horizontal leveling, ensuring your design not only looks flawless but is also structurally sound.

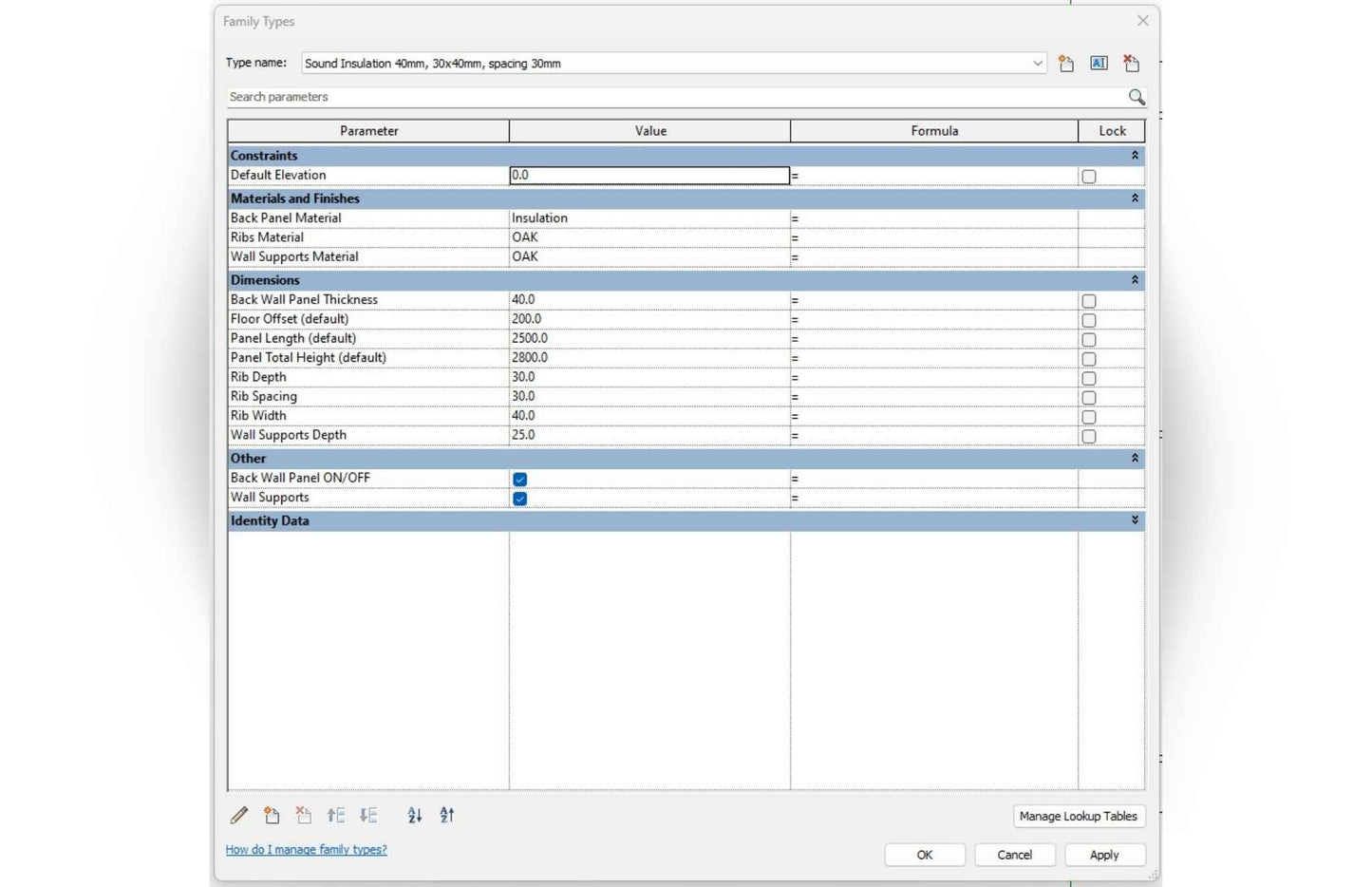

 PARAMETERS

  • Panel Total Height
  • Panel Length
  • Panel Floor Offset
  • Ribs depth and width
  • Ribs spacing
  • ON/OFF option for back panel
  • Back Panel Thickness
  • ON/OFF option for horizontal wall supports
  • Wall support thickness
  • All materials ( fluted ribs, back panel, wall supports )

ATTRIBUTES: Revit version : 2022, Family Type : Wall Based, File Extension : .rfa
