Fully Parametric Double Opening Bi-Fold Doors

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

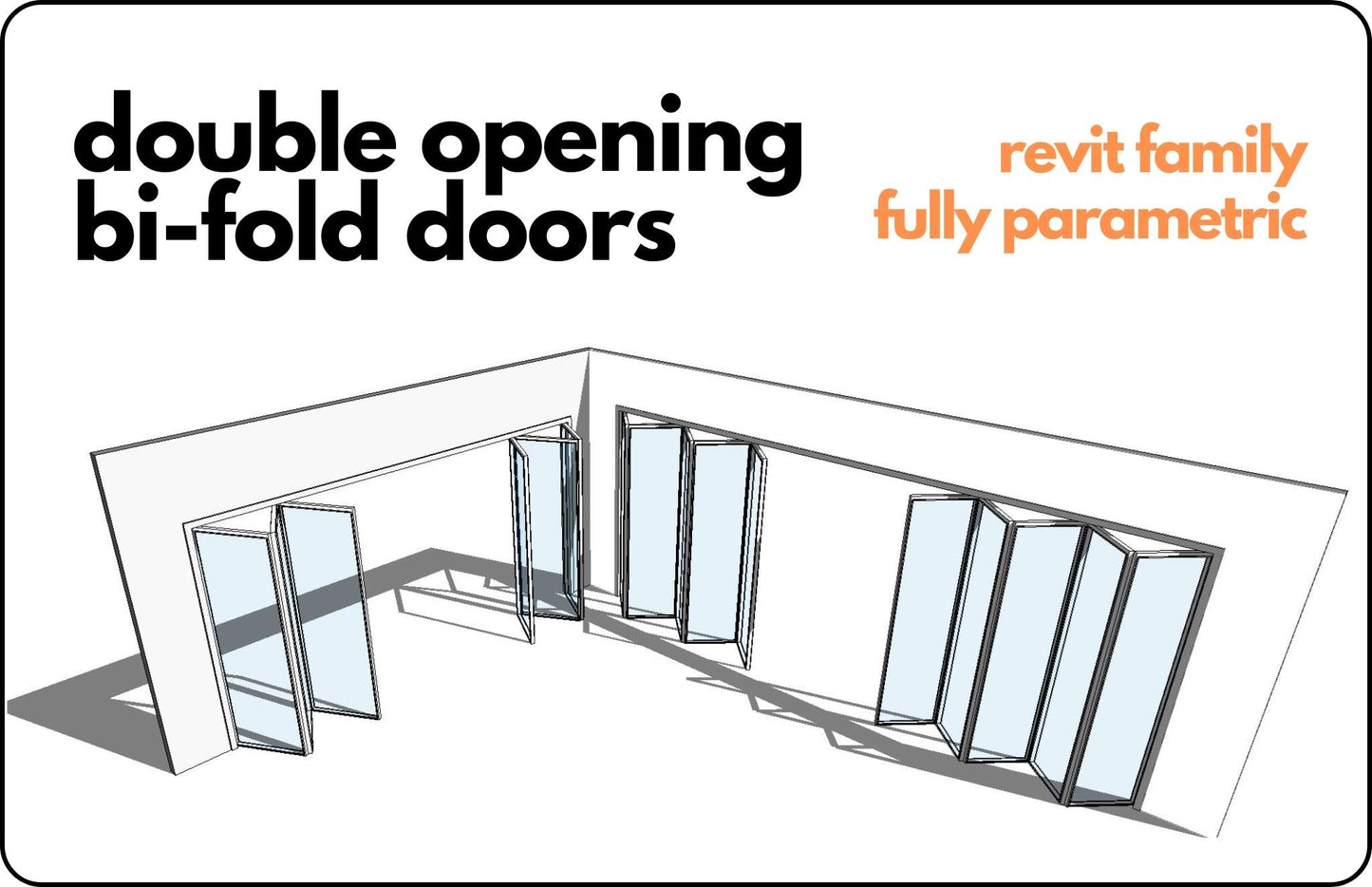

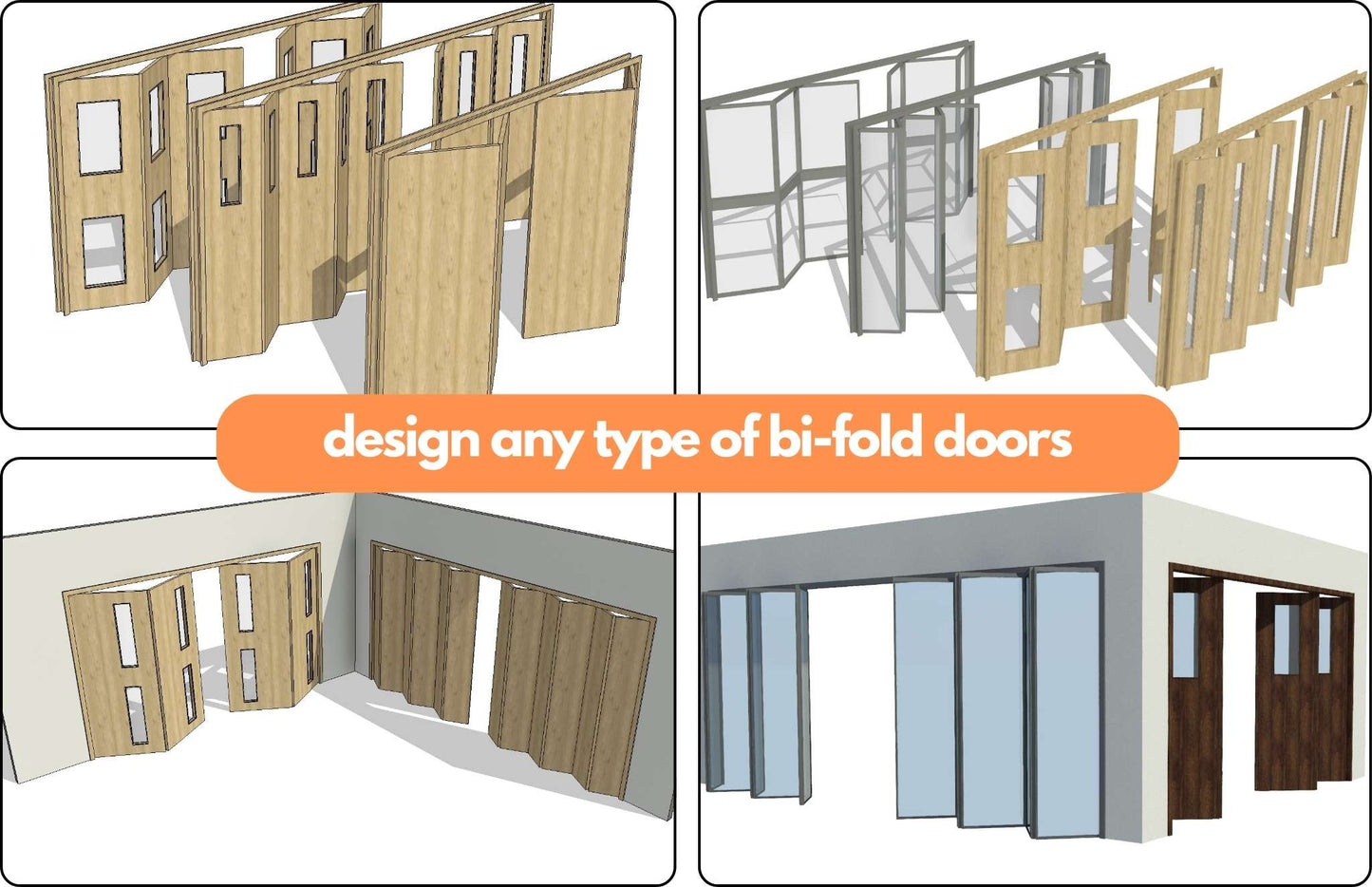

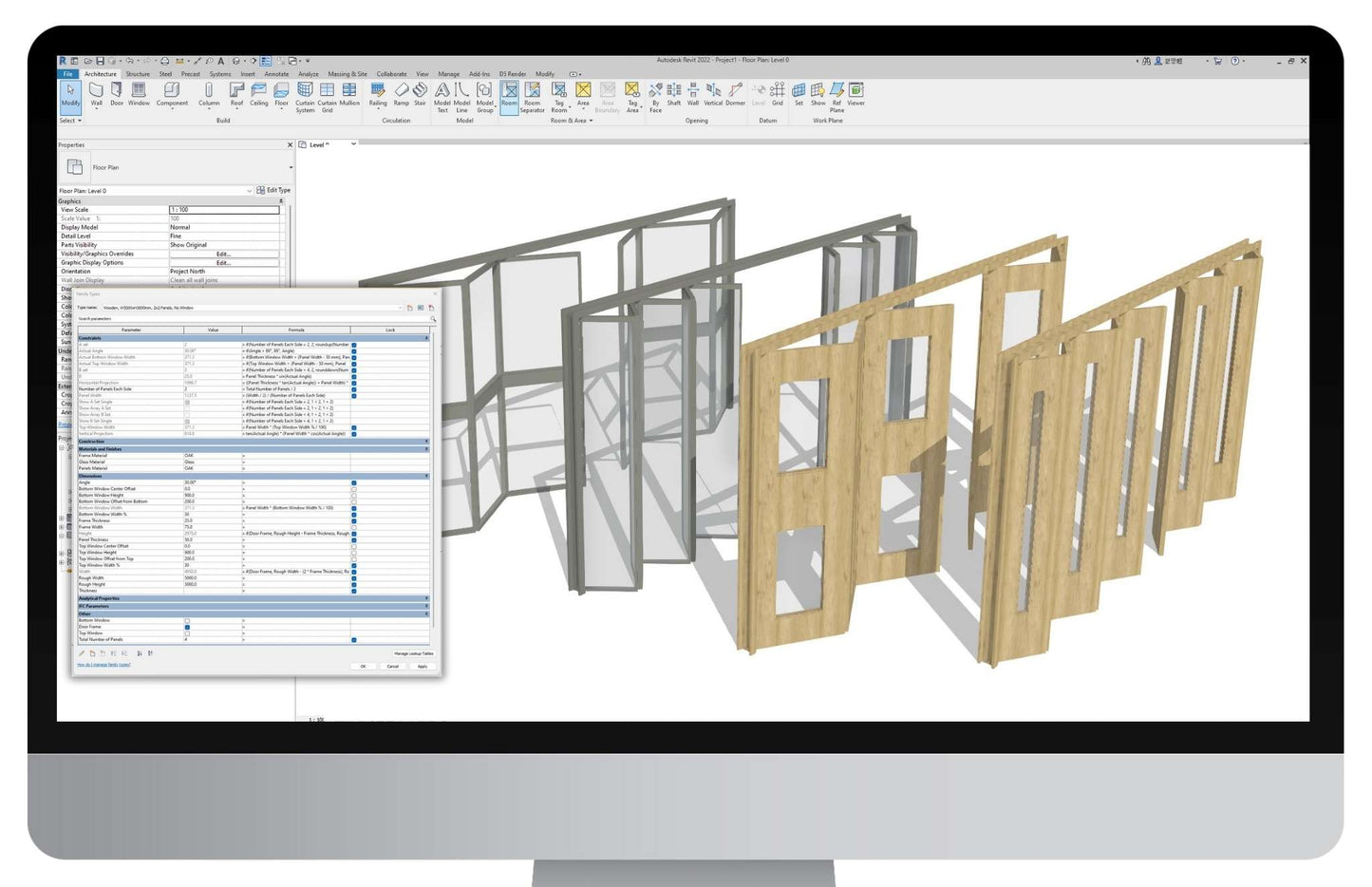

This is an all-inclusive fully parametric Revit family model for a double opening bifold door to be used both as an interior or an exterior door. All aspects of the folding door are parametric including the number of panels, sizing, glass window openings, door frame.

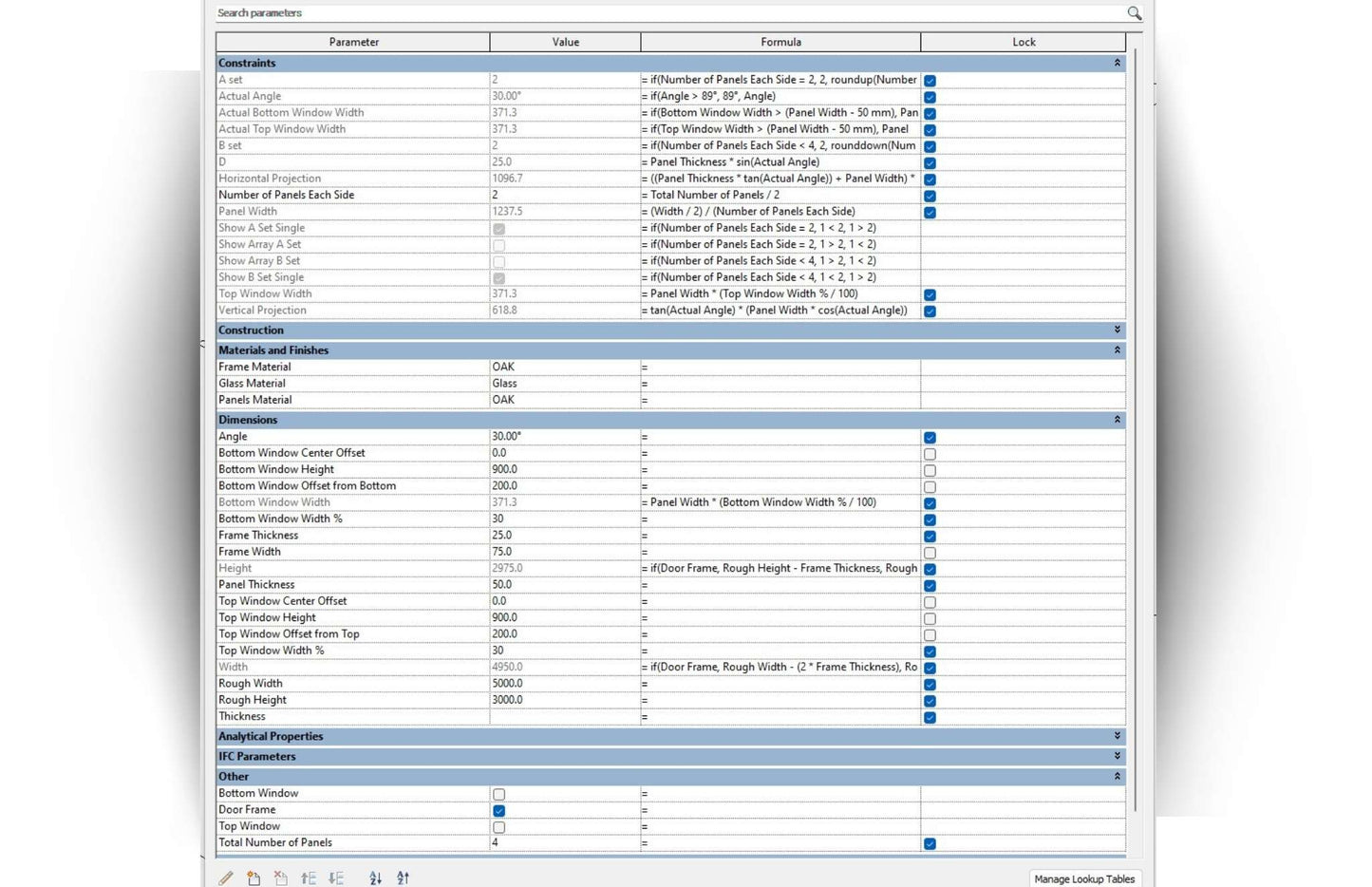

PANELS: User enters the overall rough width and height of the opening together with the desired number of total door panels (both sides – any number from 4 and up) and the model automatically calculates all necessary sizing. Half the number of panels entered are used on each side.

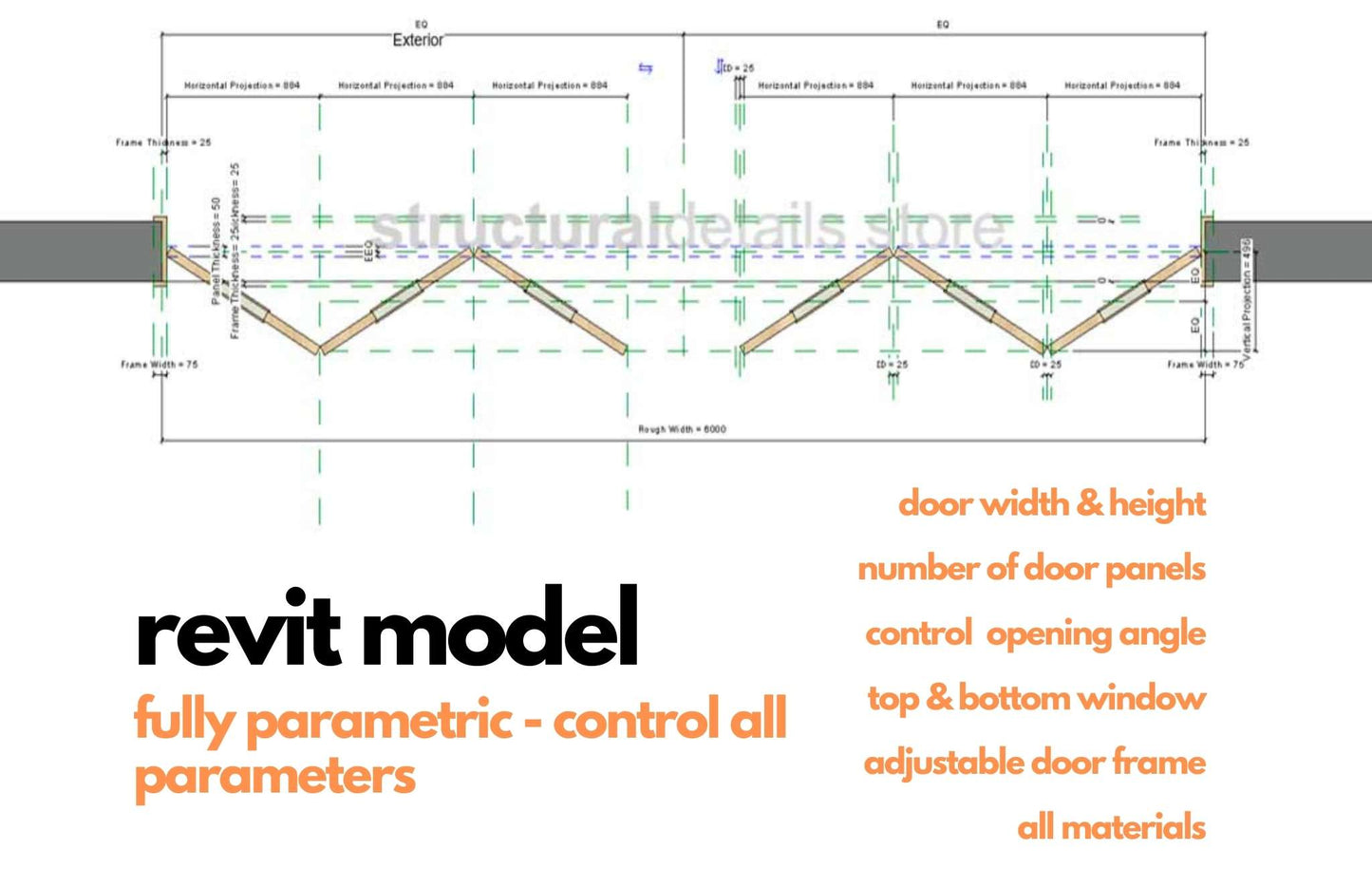

OPENING ANGLE: The panels opening are controlled through an angle parameter. 0 degrees angle completely closes the door and 90 degrees angle folds the panel to the fully open position.

The thickness of the door panels is also one of the parameters controlled by the user.

DOOR FRAME: User selects from an ON/OFF option whether to have a door frame around the opening or not. Parameters are available to control the frame thickness and the architrave width. Depending on whether the door frame is on or off, the clear door opening is calculated automatically.
