Frameless Glass Door

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

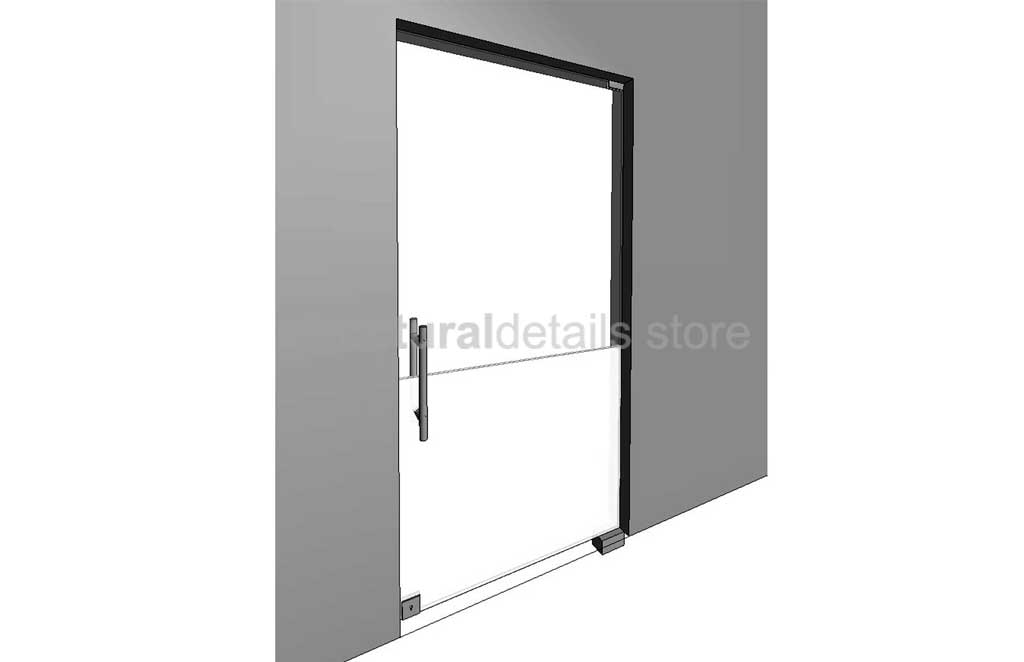

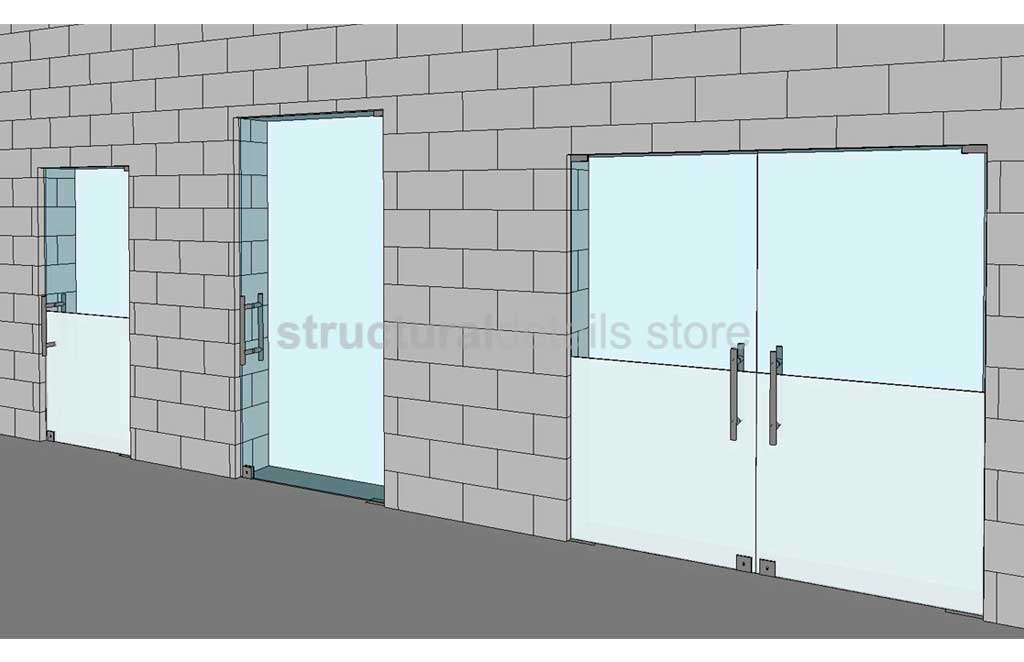

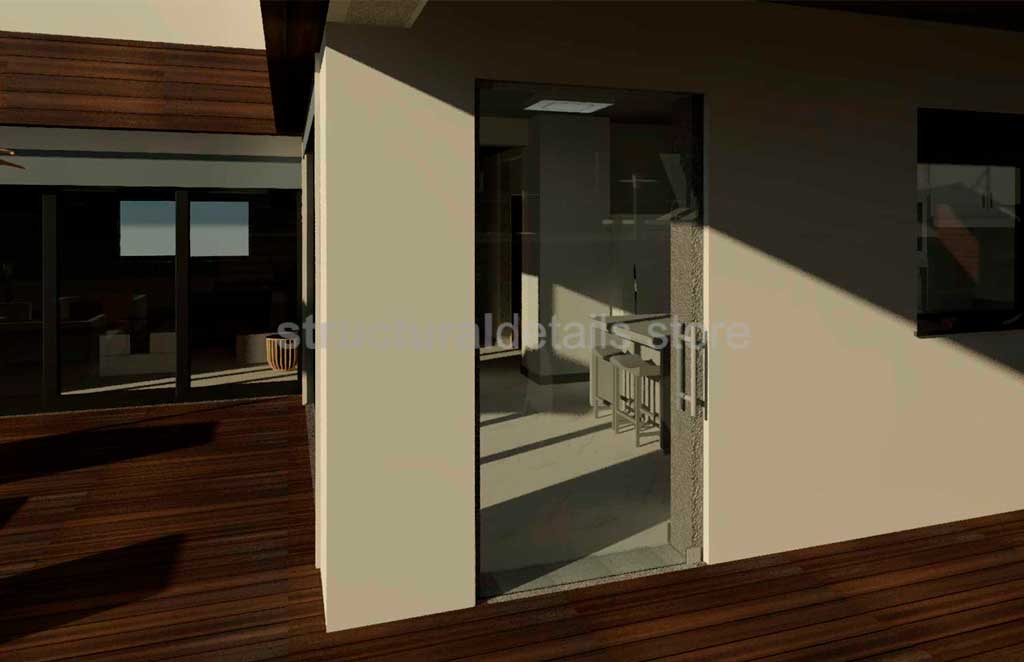

This is a fully parametric wall based frameless glass door revit family. Door can be placed on any wall and use it either as an internal or an external frameless glass door. Can be used both for single door and double leaf door simply by adding two doors next to each other. By using the flip buttons, user can change the door orientation ( left/right ) or interior/ exterior wall side. Width and height are adjustable, together with options to have frosted glass, key lock. Other parameters for this family are written below.

ATTRIBUTES: Revit Version 2022, Family Type : Wall Based, File Extension : .rfa

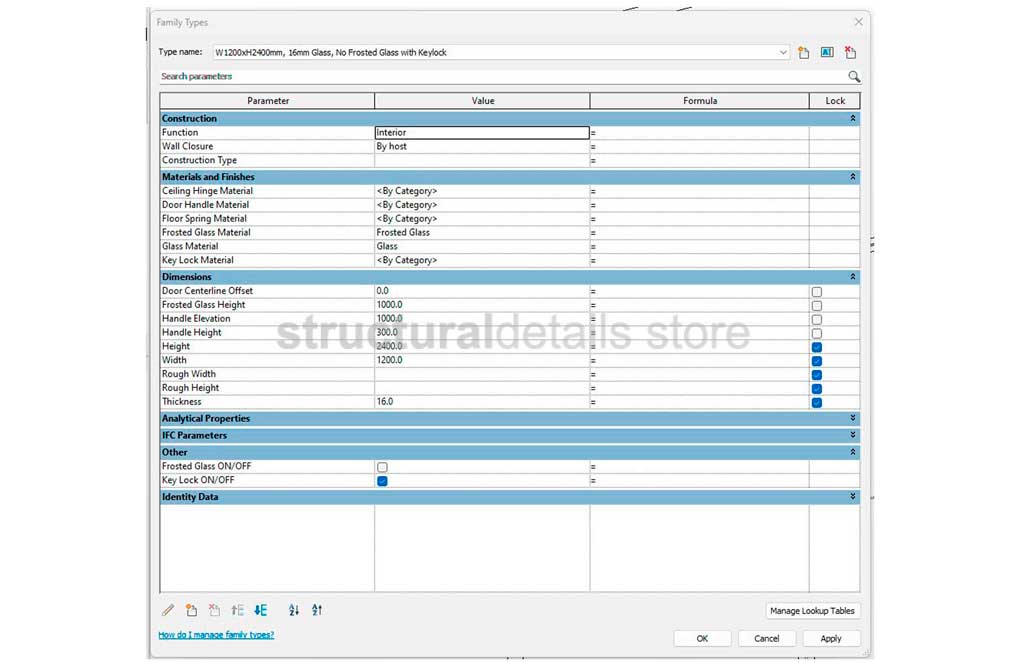

PARAMETERS:

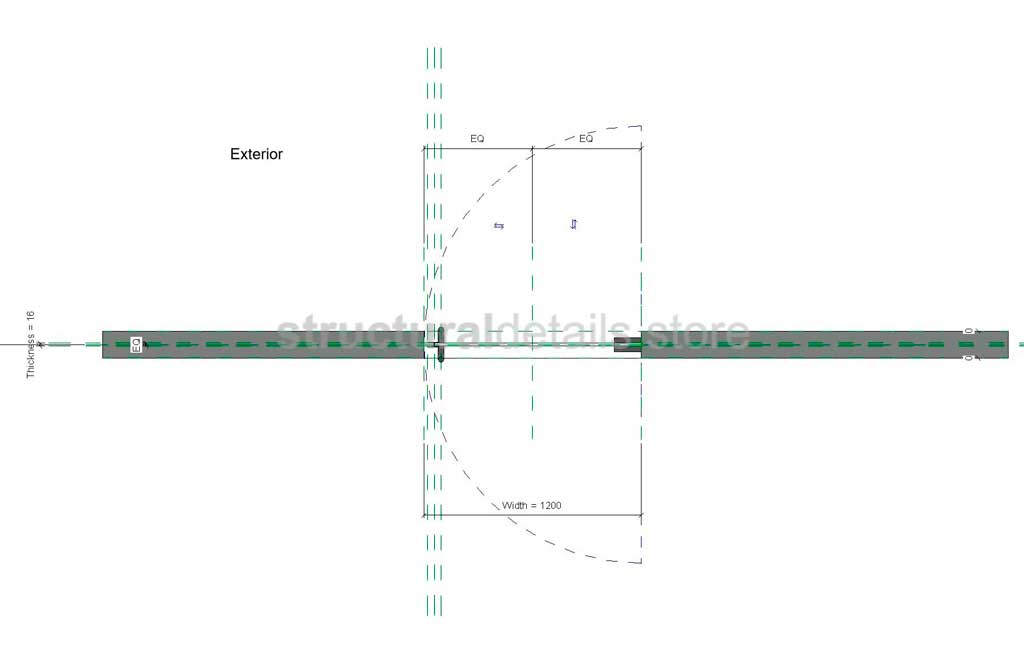

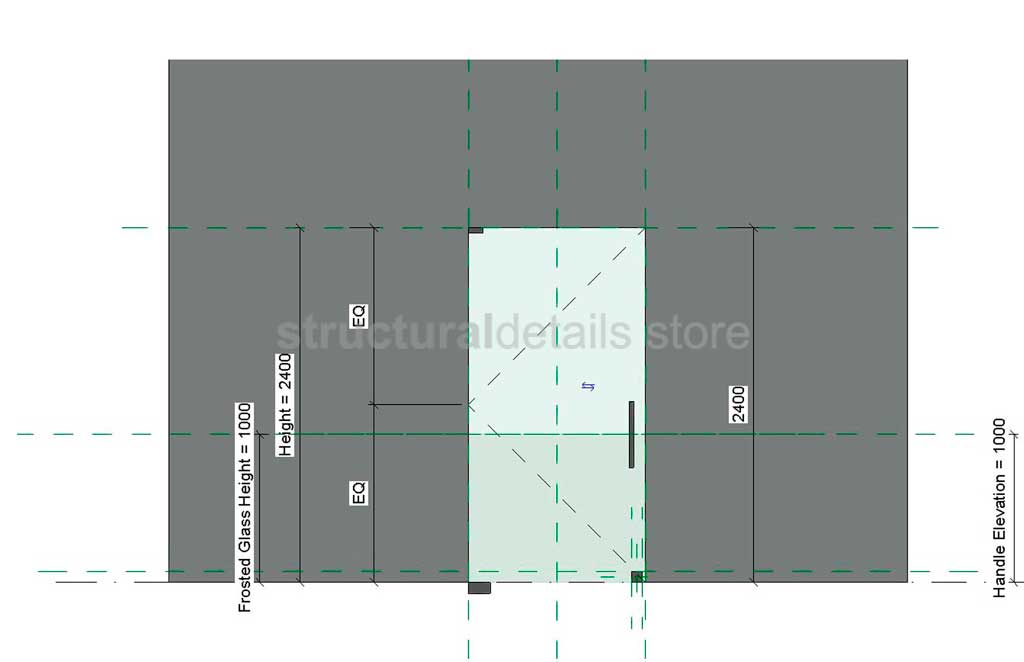

• Door Width and Height
• Handle Elevation from floor
• Handle height
• Glass Thickness
• Frosted Glass ON/OFF
• Frosted Glass Height
• Key Lock ON/OFF
• Materials ( glass, frosted glass, door handle, floor spring, key lock, ceiling hinge )
