Fitted Bookcase Wall Niche

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

This is a fully parametric fitted bookcase and wall niche revit family model. It is a wall based family that can be onto any thickness wall on any project to create a fitter bookcase or a single wall niche on the wall.

The family is fully parametric controlling elevation from floor, number of columns and rows as well as the height and the width of each. Option to turn on and off an architrave around the casework wall opening. Depth of the bookcase is also controlled by the available parameters.

Depending whether the bookcase is raised from the floor or not, the architrave is applied either on all 4 sides or just the 3 sides with the floor architrave. This is controlled by the elevation from floor parameter.

Number of columns and rows can be adjusted from 1 to any number. The total width and height of the casework is controlled by the number of cells and their respective width or height which is also controlled.

By changing the number of columns and rows to 1, and elevating from the floor to the desired level of insert, bookcase can be turned into a nice wall niche usually in shower walls for the shampoos and other showering necessities.

All materials are also parametric.

ATTRIBUTES: Revit Version 2022, Family Type : Wall Based, File Extension : .rfa

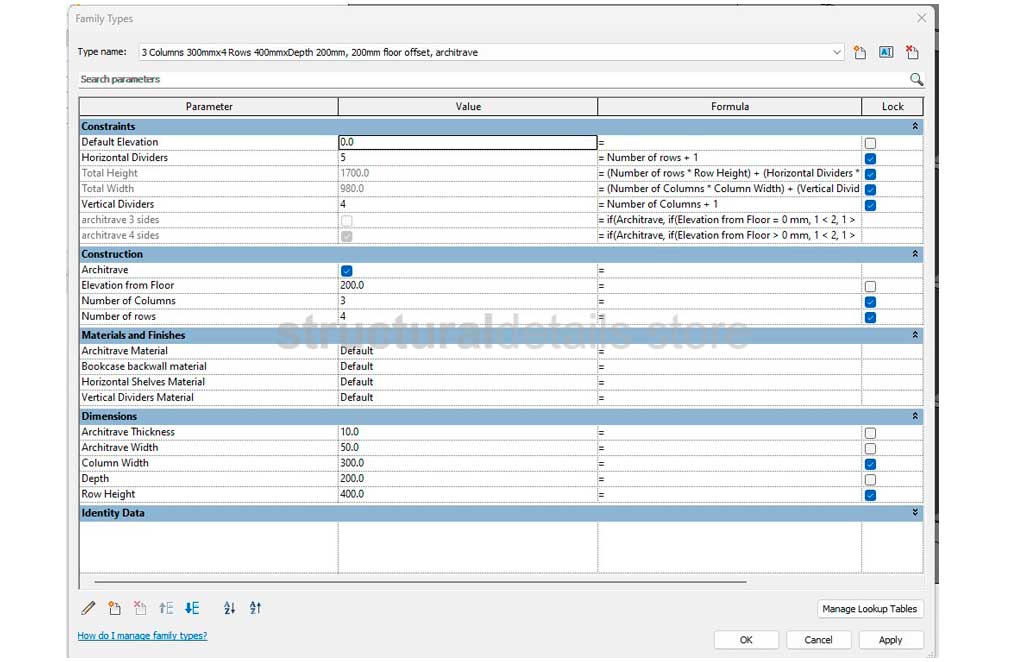

PARAMETERS

Elevation from floor
Number of columns and rows ( from 1 to any number )
Columns width
Rows height
Architrave option ON/OFF
Architrave width and thicnkness
All materials are parametric
