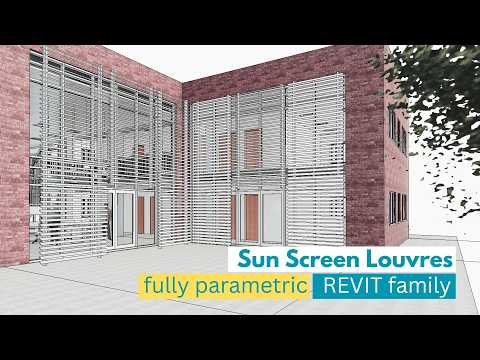

Exterior Aluminium Sun Screen Fixed Louvres

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

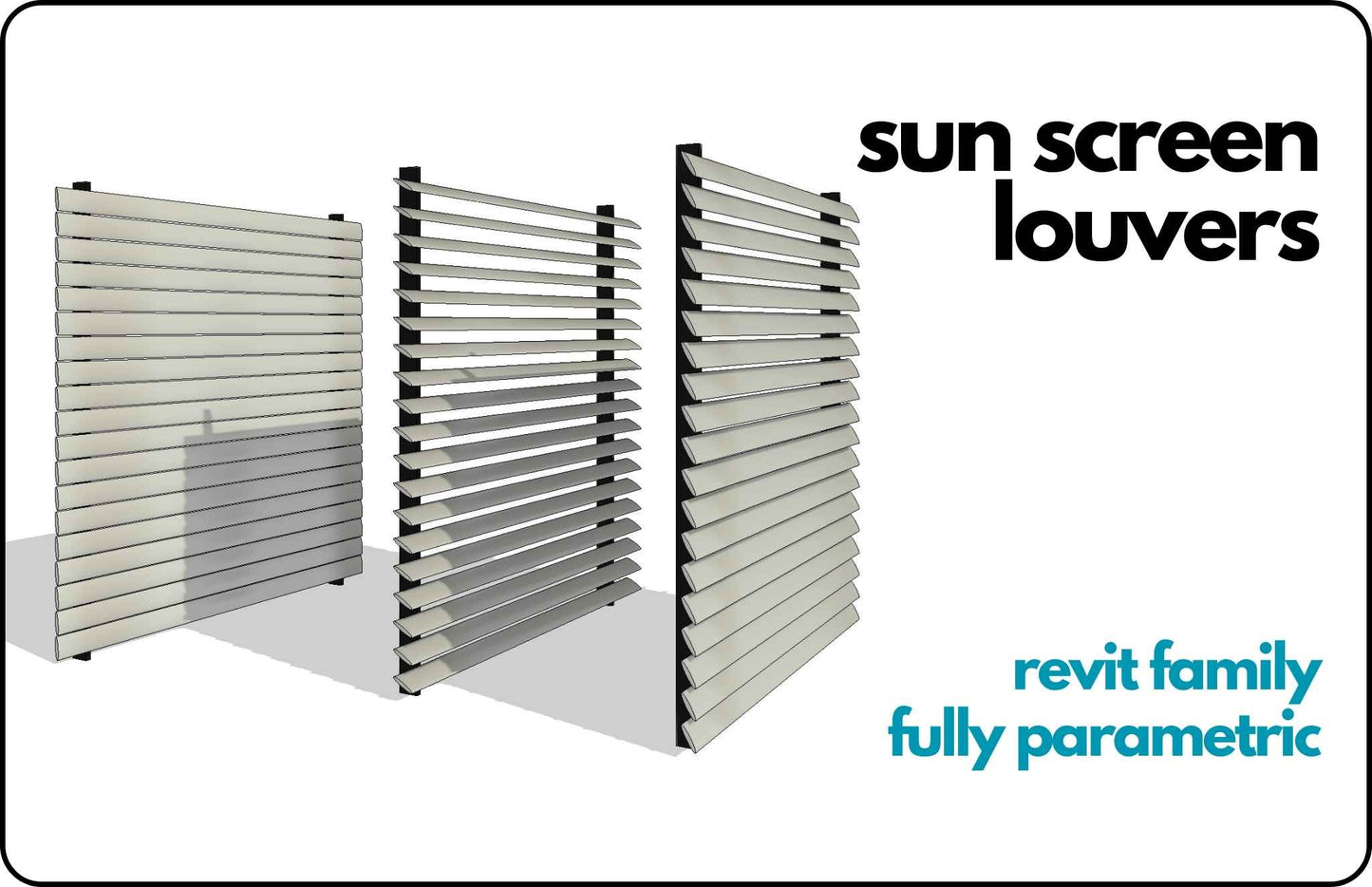

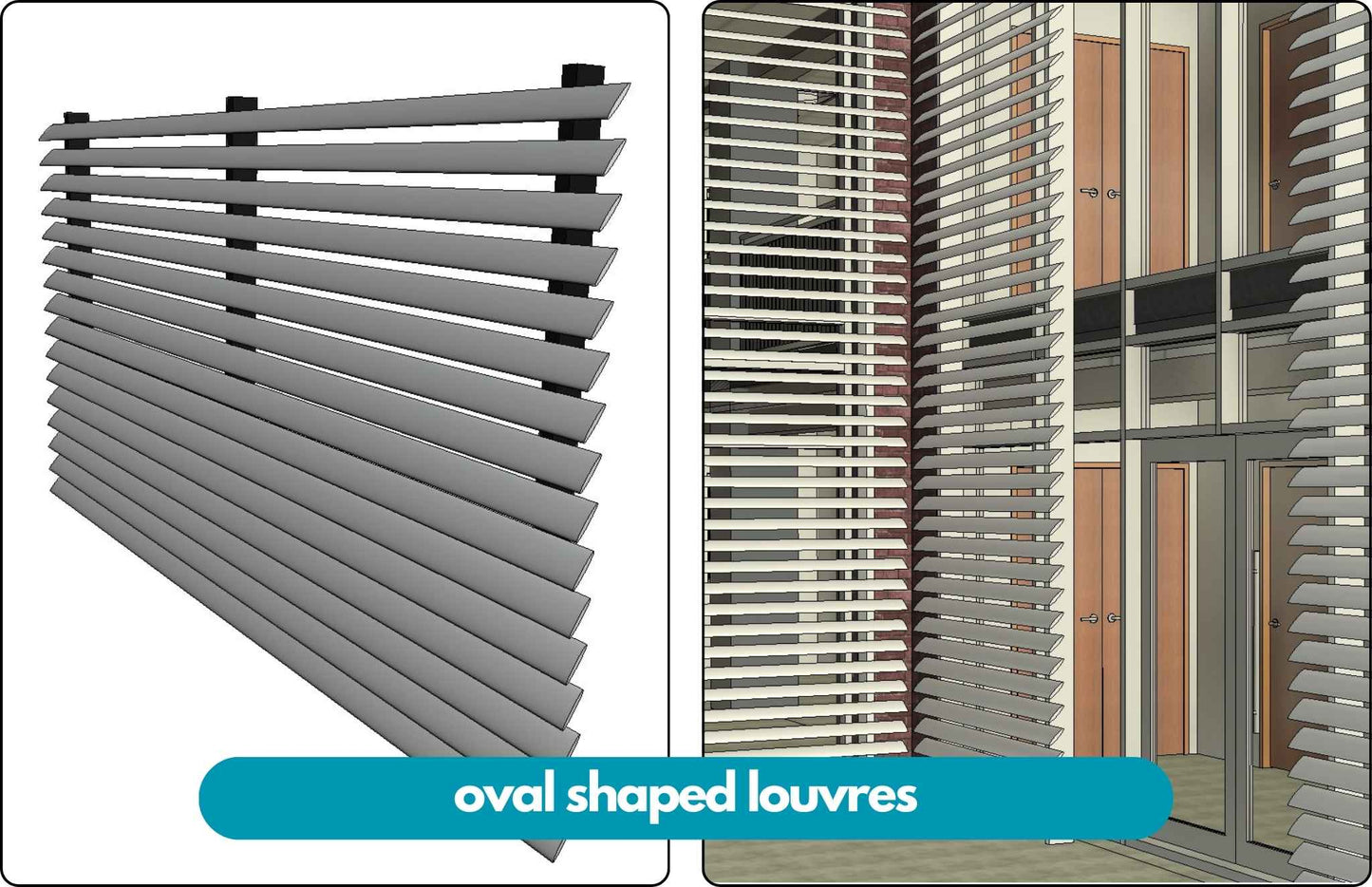

Fully Parametric Revit generic model for exterior aluminium sun screen fixed louvres. The model consists of oval shaped louvres with adjustable angle, to maximize sun shade, supported on back supporting rectangular posts. All parameters are parametric and adjustable to help designers create any type of sun screen needed for any design requirement.

The model can be placed onto any project floor face ( i.e. ground floor, veranda etc ) and has all of its parameters parametric. Users can control the width of the screen, the height, the angle the louvres are positioned, the louvres thickness and depth, the supports width and depth as well as all materials used.

The model was created for aluminium type sun screens but materials can easily be changed.

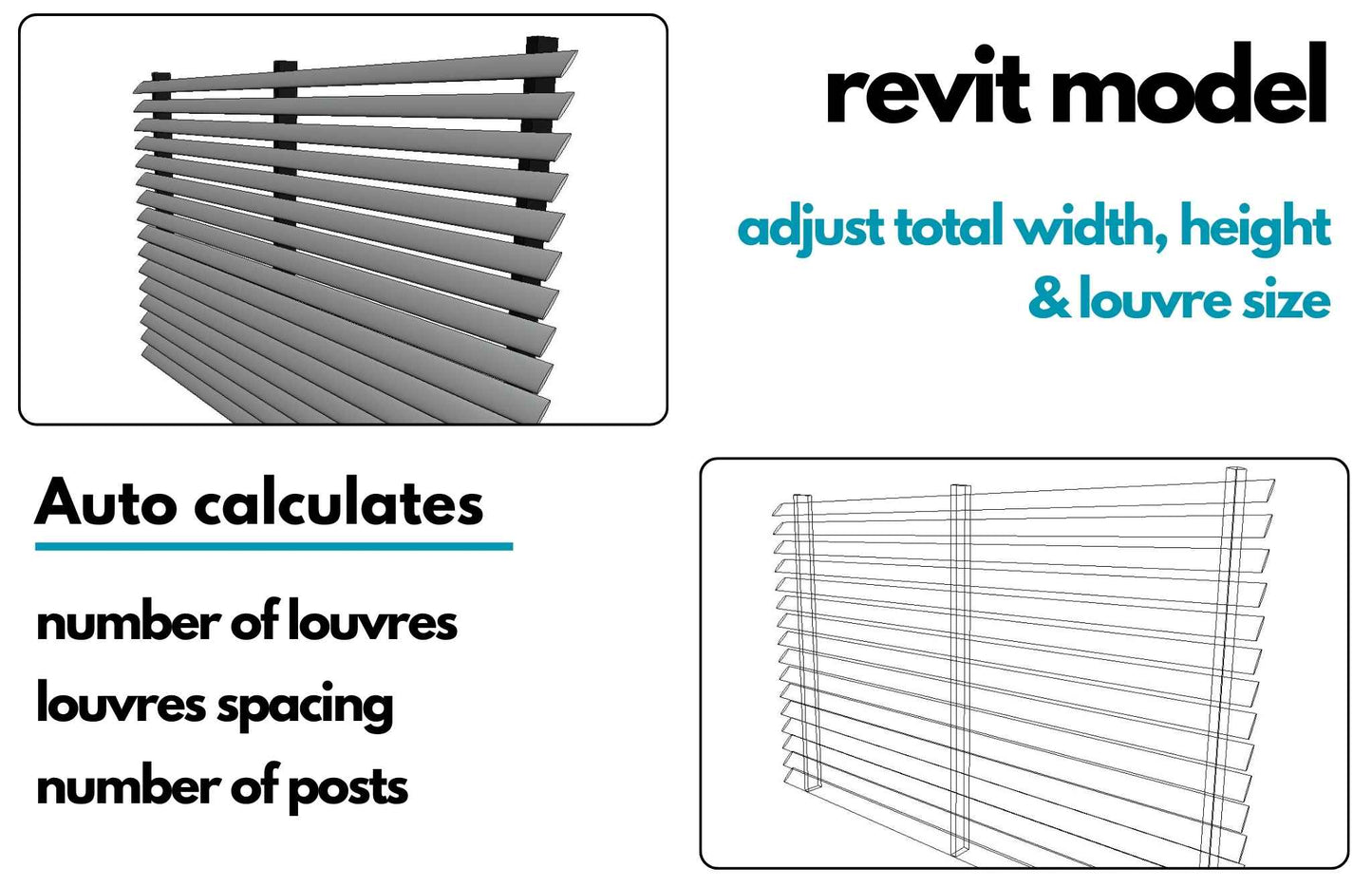

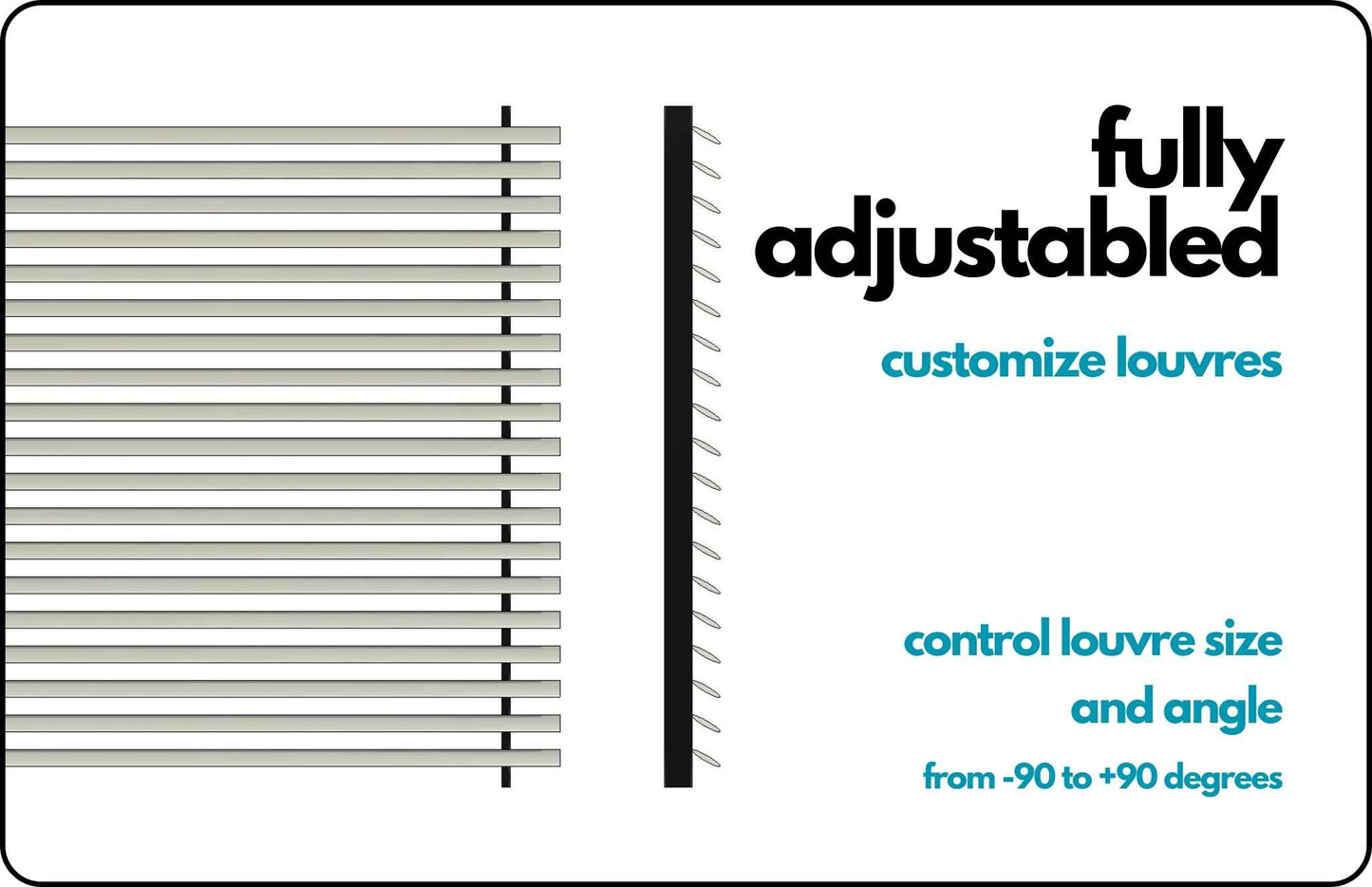

The louvres are fully adjustable with angles ranging from -90 to 90 degrees rotatable. Selecting 90 degrees angle will close off the screen completely leaving no gap. The spacing of the louvres is automatically calculated by the family model, in order to space them correctly without leaving a gap when completely closed. Louvres profile is an oval shape profile.

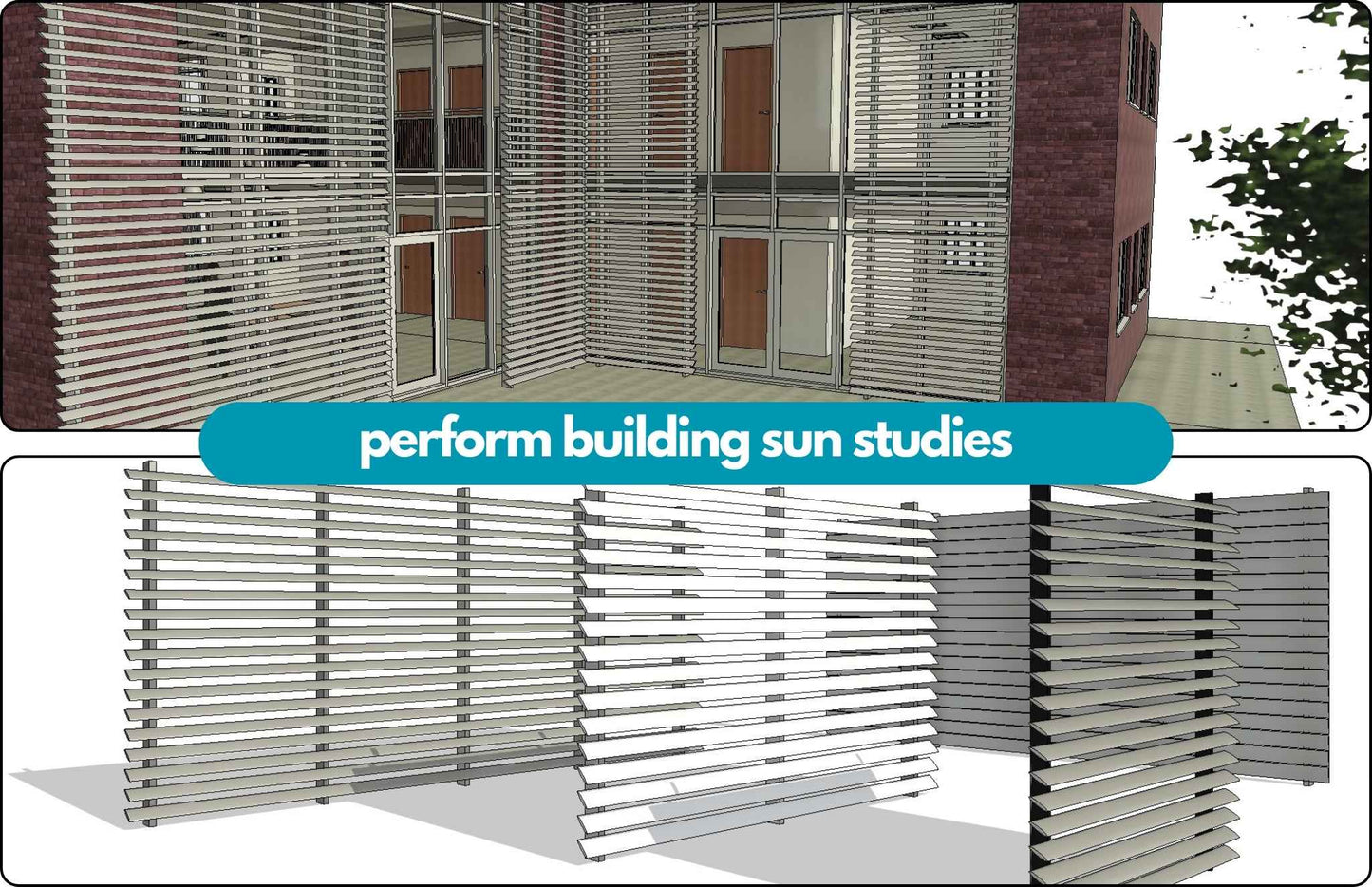

Users can adjust the angle of the louvres and perform simple sun studies to their project in order to decide on the most efficient angle to place the louvres.

ATTRIBUTES: Revit Version : 2022, Family Type : Generic Model, File Extension : .rfa

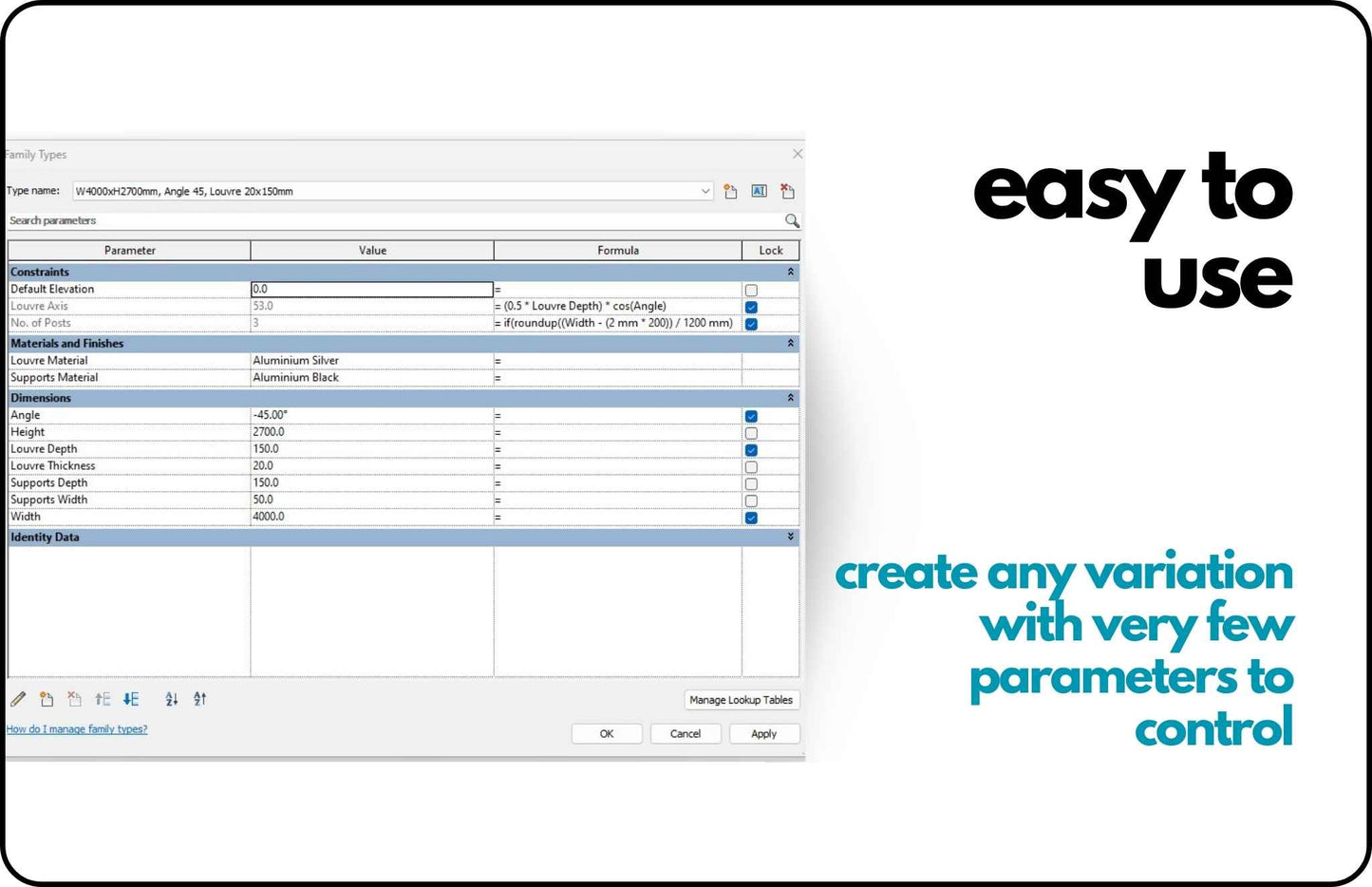

PARAMETERS:

• Screen width and overall height
• Louvres angle
• Louvres thickness and depth
• Supports width and depth
• All materials
