Emergency Curtain Wall Panel Door

Fully Parametric

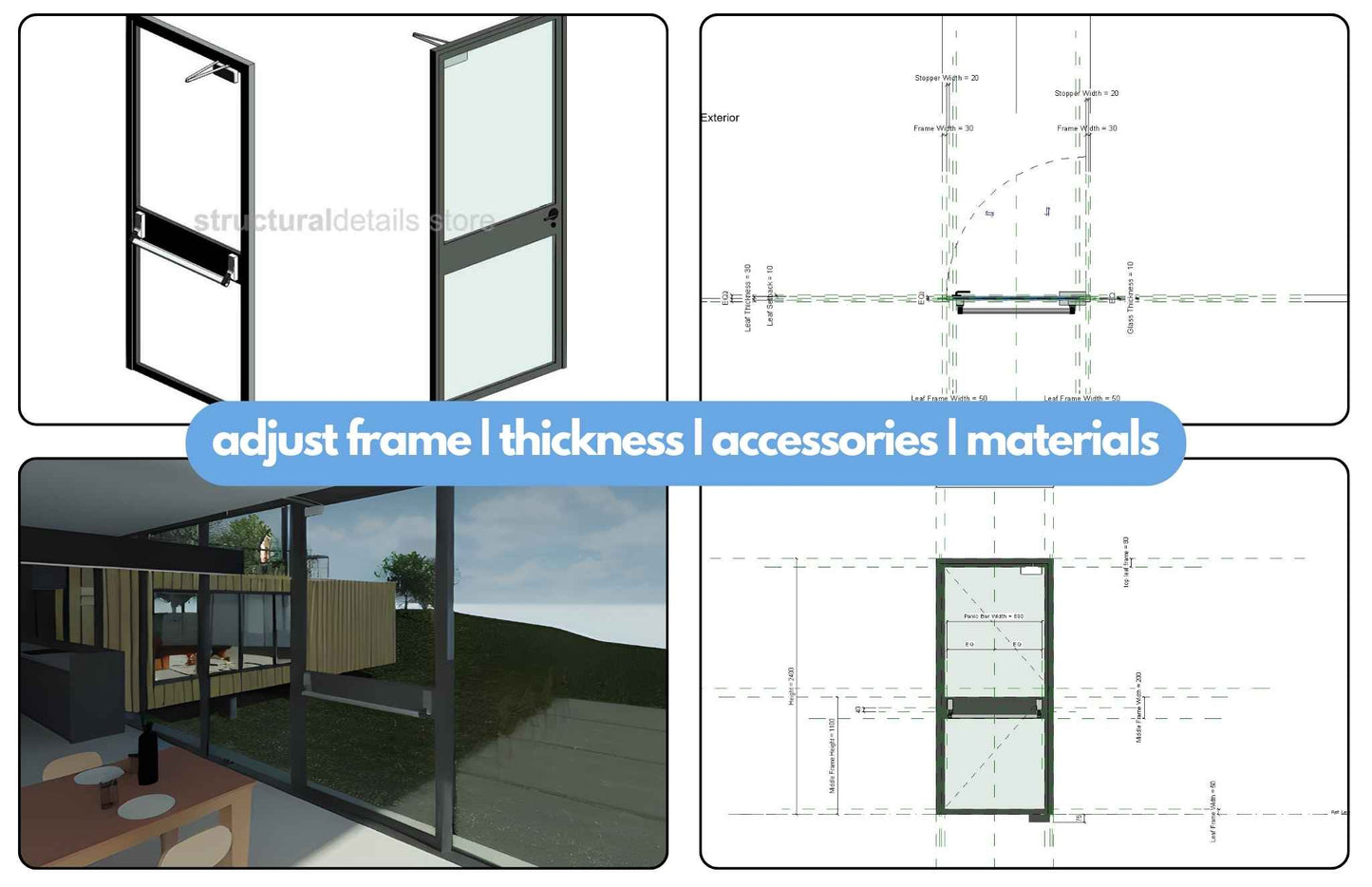

Almost all aspects of the model can be altered via the parameters available including materials. All family parameters are shown below.

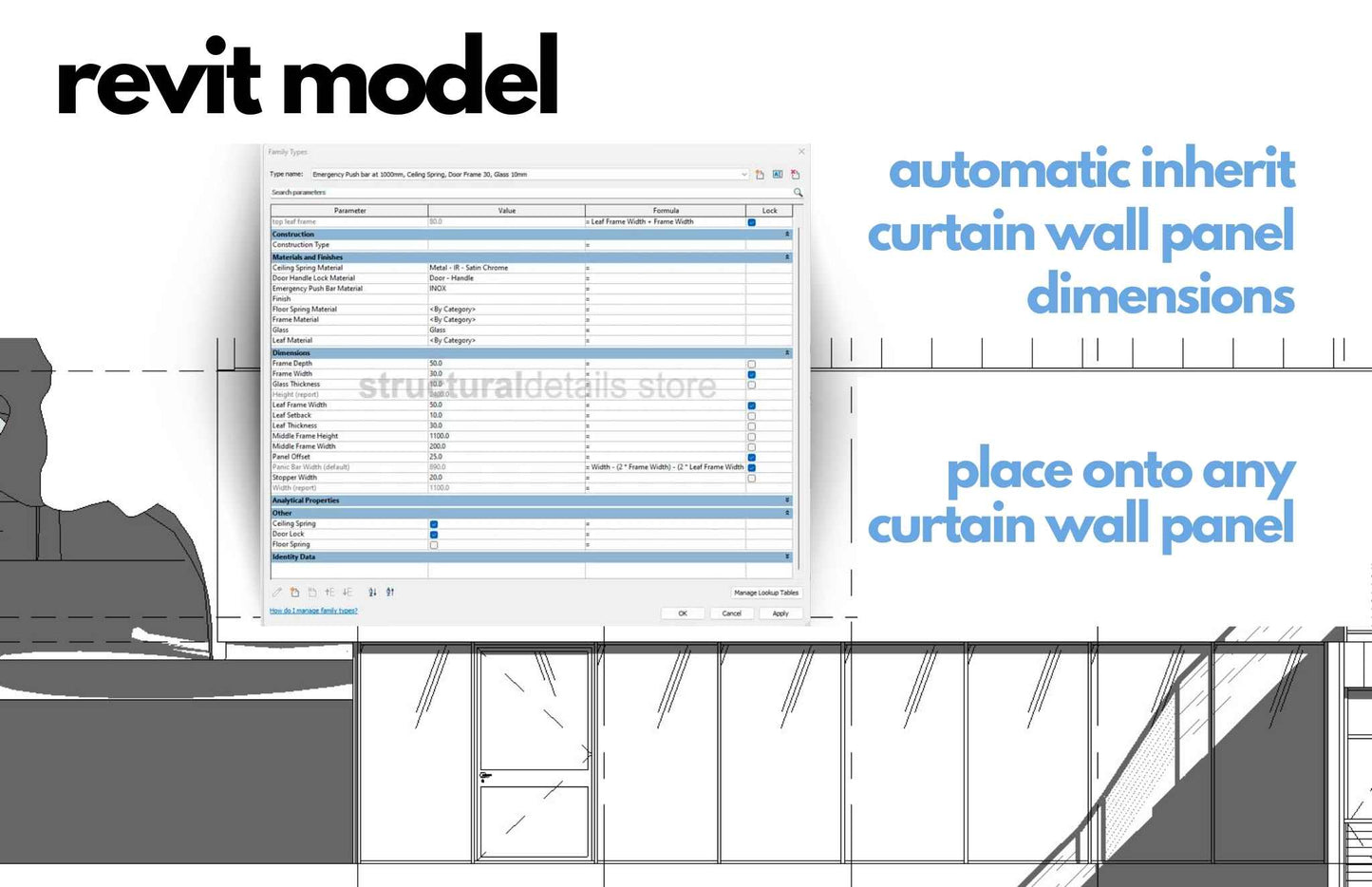

The door can be inserted onto any curtain wall and automatically inherit the panel’s dimensions. Direction of the door can be flipped through the ready made flip option in plan view. Door’s offset from curtain wall panel can also be adjusted together with the door’s frame width, depth and glass thickness.

Available option to have a floor or ceiling spring as well as adjusting the push bar’s height.

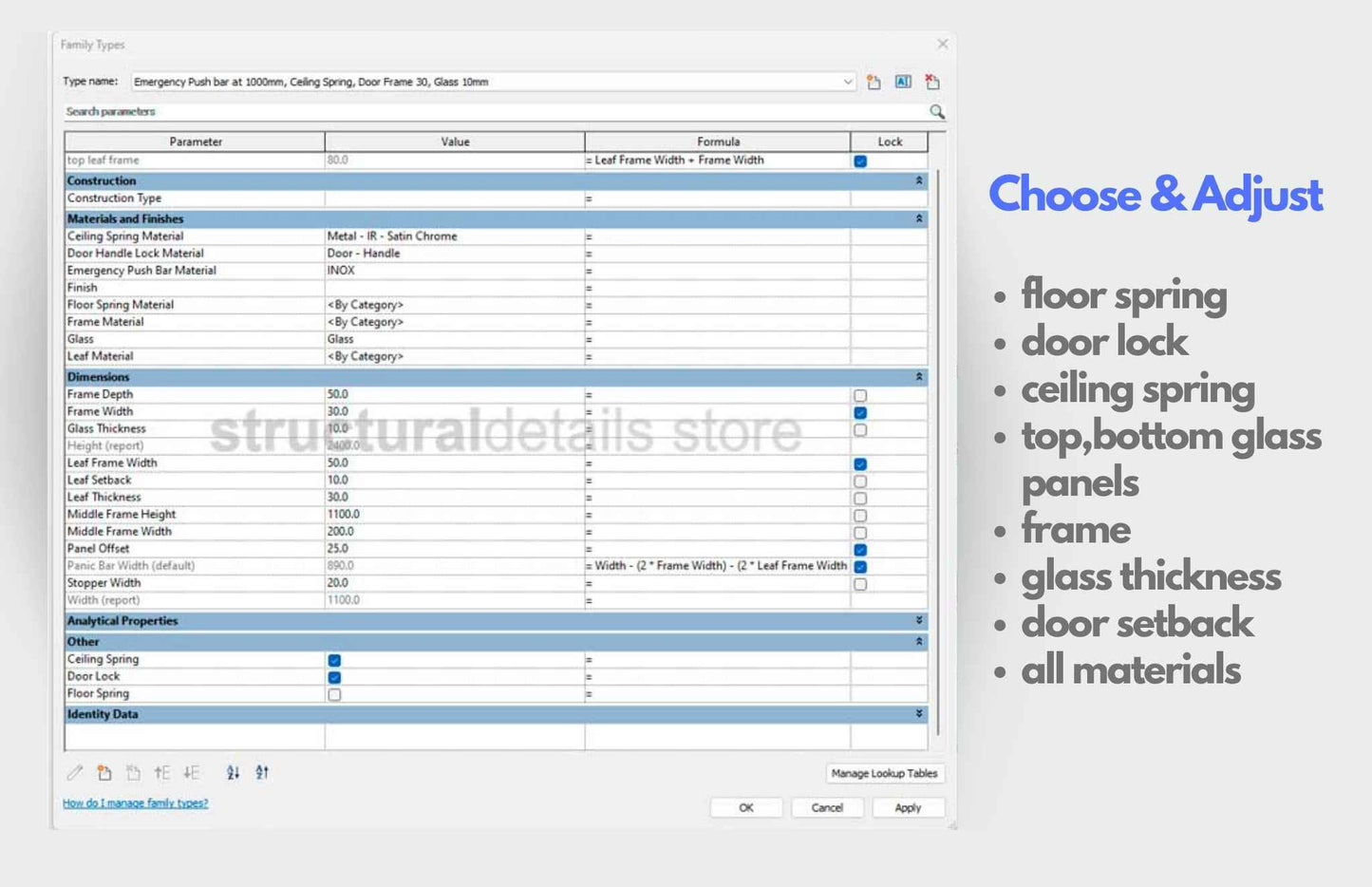

PARAMETERS

Watch this complete tutorial to find out how to us this powerful curtain wall family to instantly add an emergncy exit door on any curtain wall panel.

• Width and height are automatically adapted from the curtain wall panel dimensions
• Frame and Door Leaf frame width
• Glass Thickness
• Panel Offset from curtain wall centerline
• Emergency Panic Push Bar Elevation
• Materials ( leaf, frame, glass, ceiling spring, floor spring, emergency push bar, door handle and lock

EXTRA OPTIONS AVAILABLE : Floor Spring, Ceiling Spring, Door Lock. All can be turned on and off from the available parameter options.

ATTRIBUTES : Revit Version 2022, Family Type : Curtain Wall Panel, File Extension : .rfa
