Double Sliding Window

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

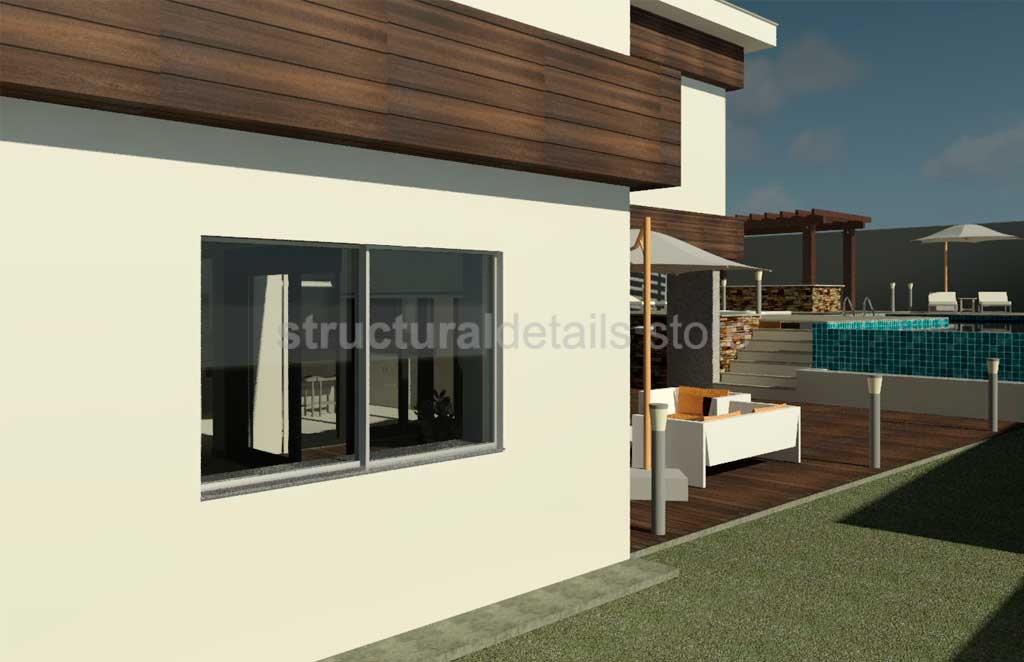

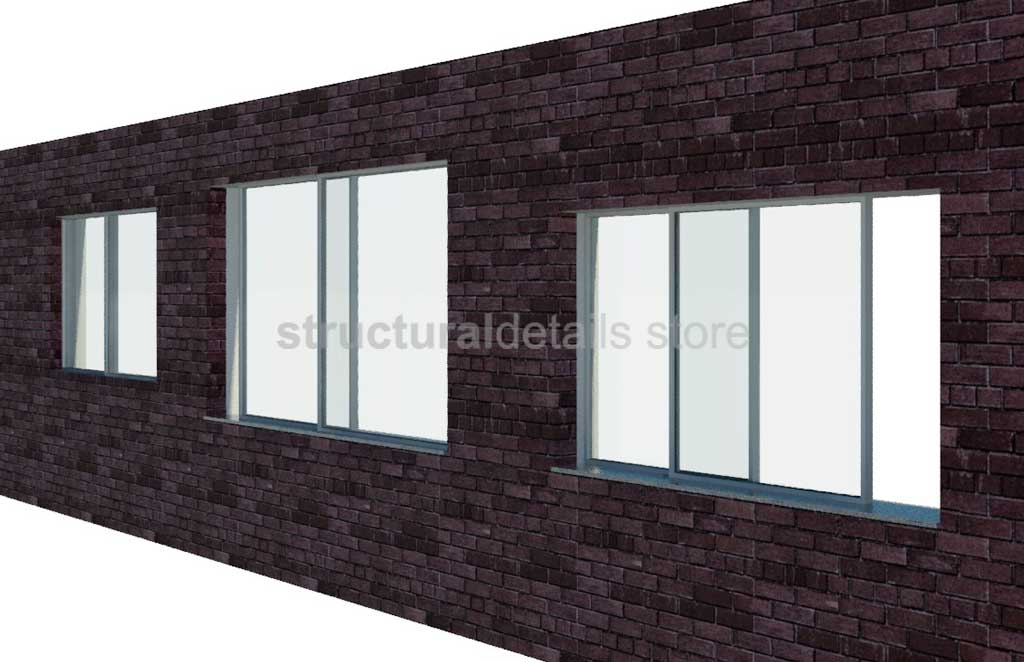

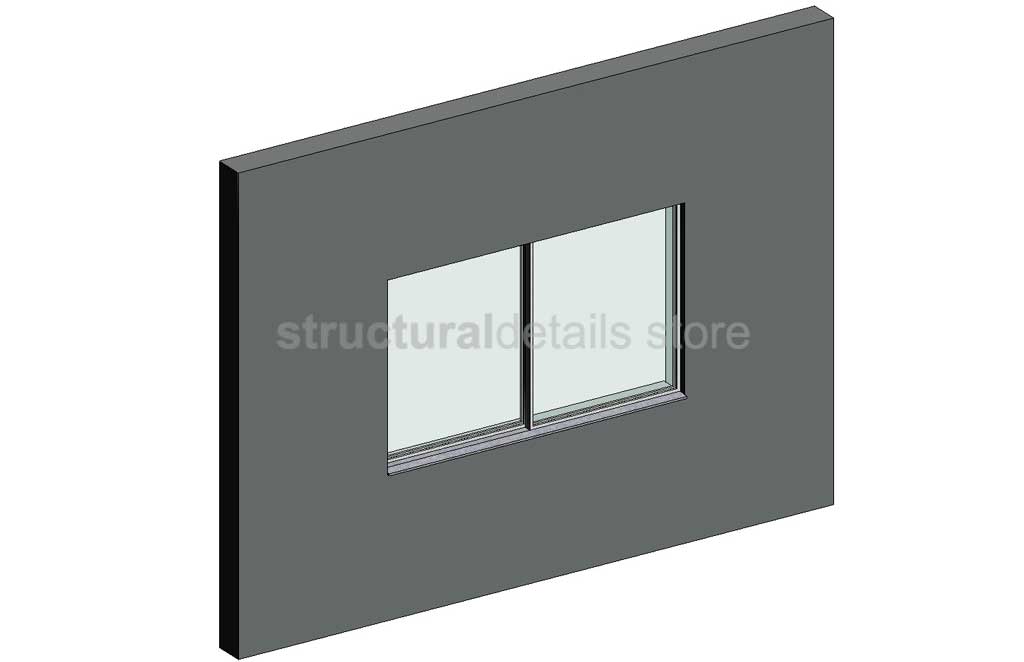

This is a double panel sliding window wall based revit family. Fully Parametric.

Can be placed on any wall and it will adapt to the wall thickness. User can adjust window dimensions, height from the floor, whether or not there is a sill, glass thickness, aluminium frame thickness and depth as well as offset from the wall face. Graphical representation of both panels opened by a percentage.

ATTRIBUTES: Revit Version : 2022, Family Type : Window Wall Based, File Extension : .rfa

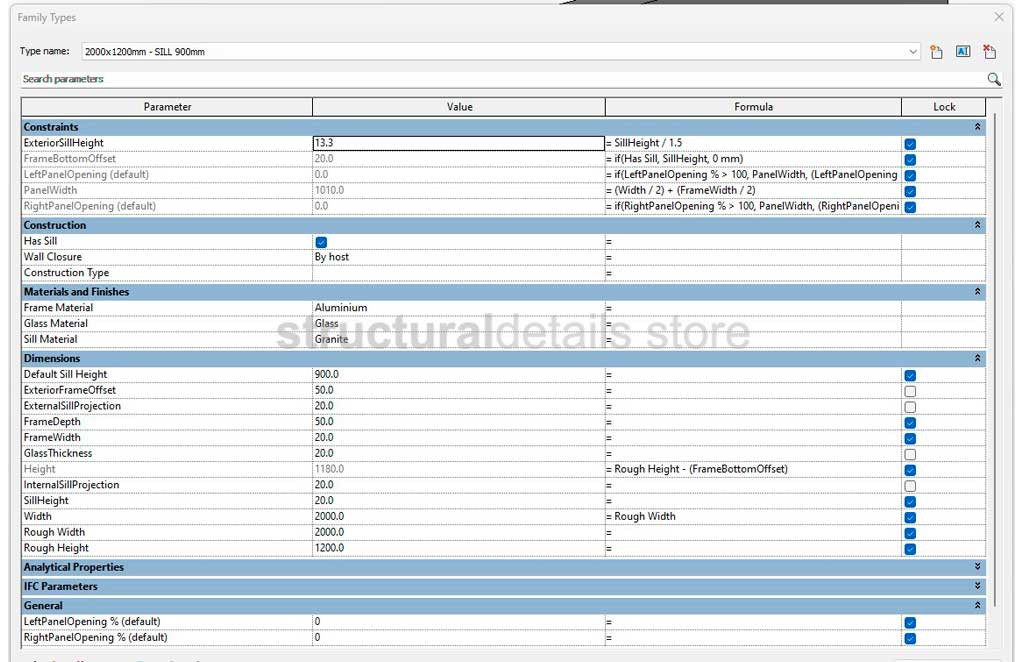

PARAMETERS:

Sill height from floor
Sill interior & Exterior Projection out of wall
Sill thickness and exterior sill thickness ( for sloped sill – water drainage )
Frame wall offset
Frame width and depth
Glass Thickness
Rough Width ( wall opening )
Rough Height ( wall opening )

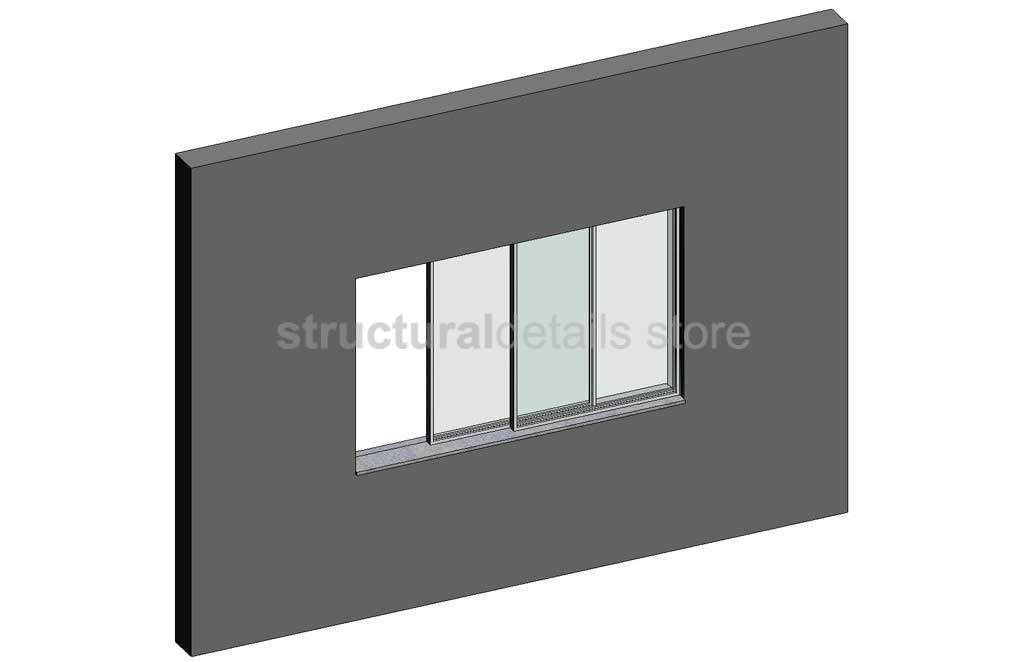

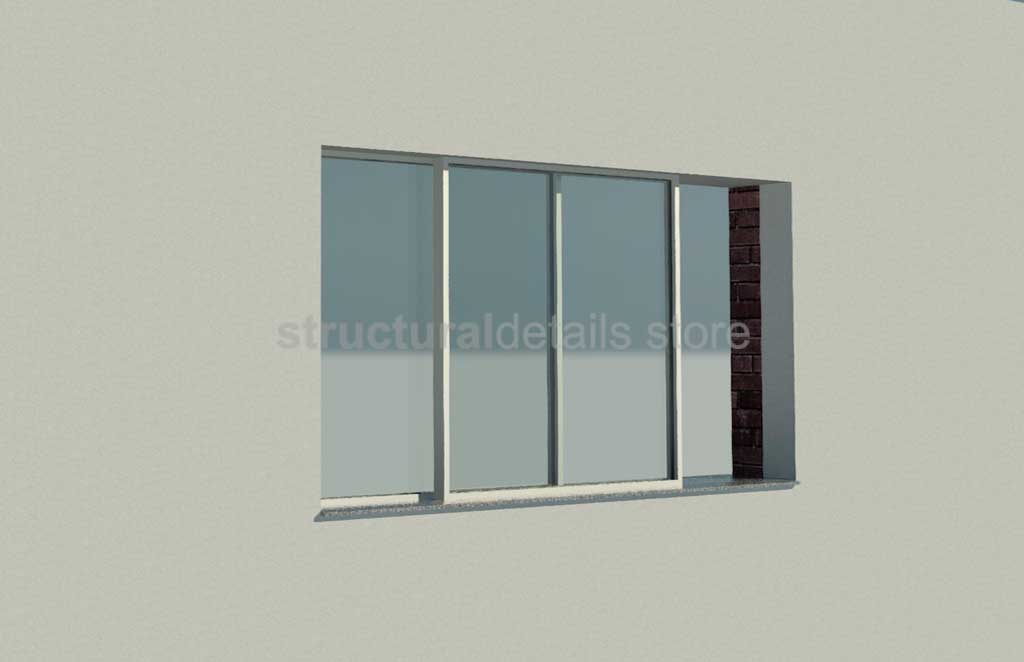

Right & Left Panel slide open graphical representation
Sill Option ON/OFF
Materials ( frame, glass, sill )
