Double Hung Vertical Slide Window

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

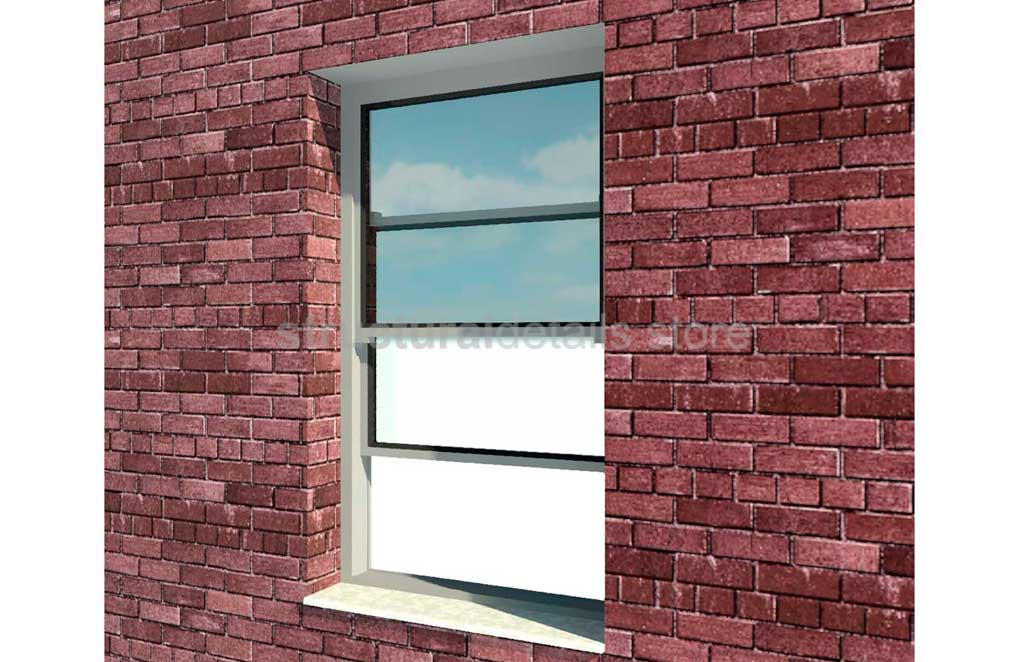

This is a fully parametric Revit wall-based window model, for a double hung vertical slide window. Lower and top window panels slide open by sliding up and down on the vertical axis.

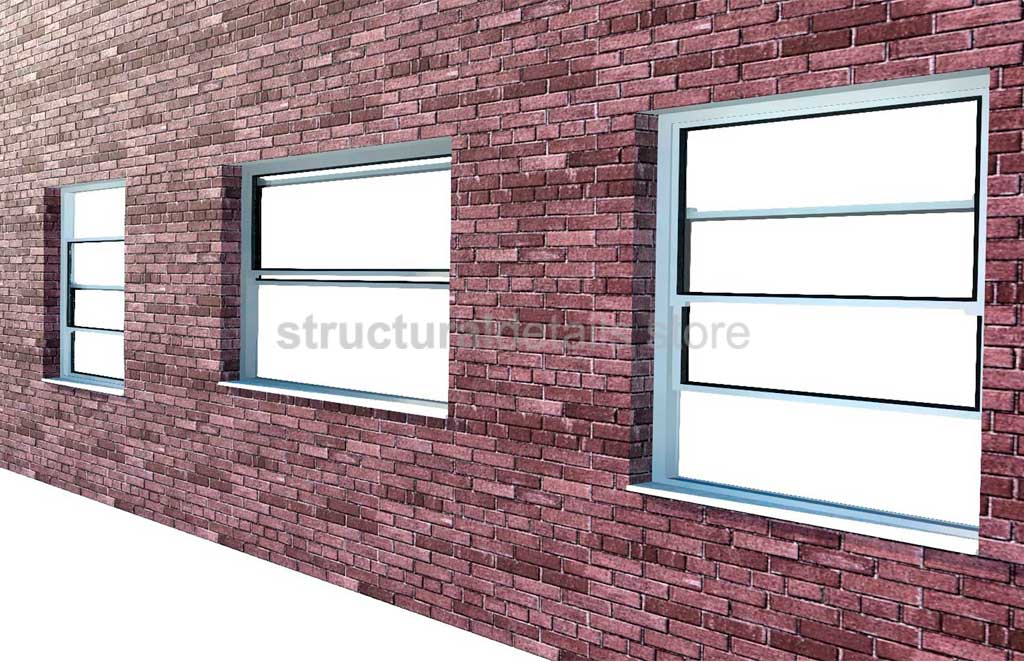

The window family model is wall based and can be inserted into any type of wall in any project with the user choosing the interior and exterior side of the window. All family parameters can be changed and create any number of possible window variations to match any design requirements.

The model consists of the actual vertical slide open window, a windowsill on the exterior side which can be turned on and off as one of the parameters as well as an interior side architrave which also can be switched on and off. The window panels can be displayed either fully closed or select to slide open either the bottom or top panel halfway or fully opened.

Rough width and rough height of the window are entered by the users when creating any family type. The clear window opening is displayed as part of the parameters and is adjusted as any of the other parameters are changed.

Apart from all the materials being parametric so that the user can select any material for any of the parts of the window, users can also change the glass thickness which automatically calculates and changes the window panel and frame thicknesses, the frame width, and the panel frame width. The windowsill thickness and the interior side architrave thickness and width are also parametric and can be changed.

ATTRIBUTES: Revit Version: 2022, Family Type: Window Wall-Based, File Extension: .rfa

PARAMETERS:

Window Rough Width and Height
Glass Thickness
Window Panels Frame Width
Frame Width
Windowsill Thickness
Windowsill ON/OFF Option
Architrave Thickness and Width
Architrave On/OFF Option
Open Bottom Panel Option
Open Top Panel Option
Option to display as half-open or fully opened.
All materials (glass, frame material, architrave, windowsill, rubber windowsill)
