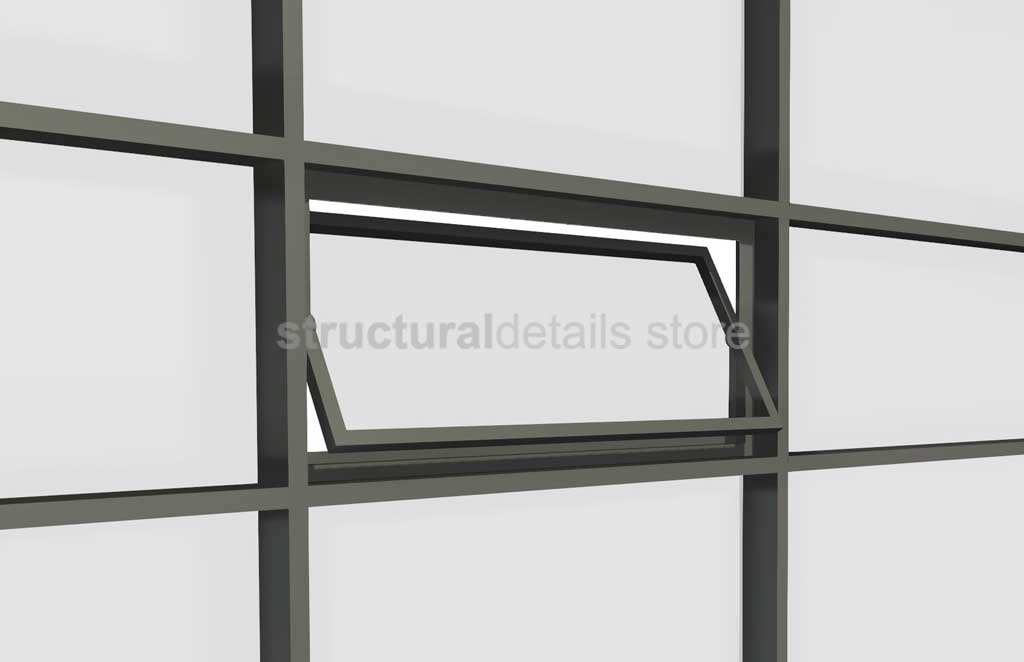

Curtain Wall Panel Pivot Window

Curtain Wall Panel Pivot Window

€5,00 EUR
€5,00 EUR
Sale Sold out

PARAMETRIC REVIT FAMILY - DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

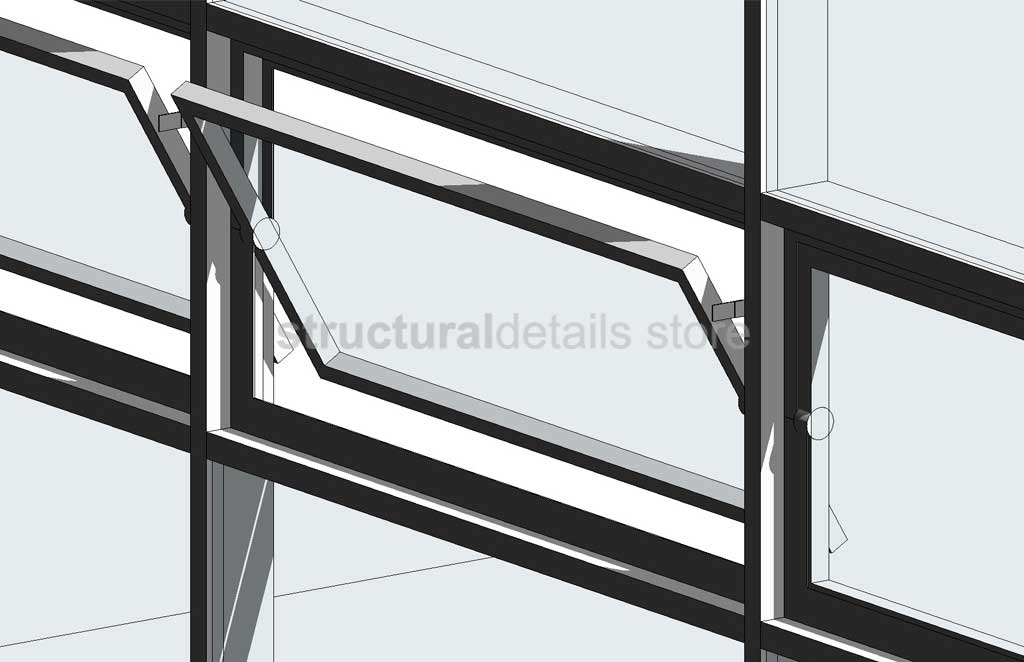

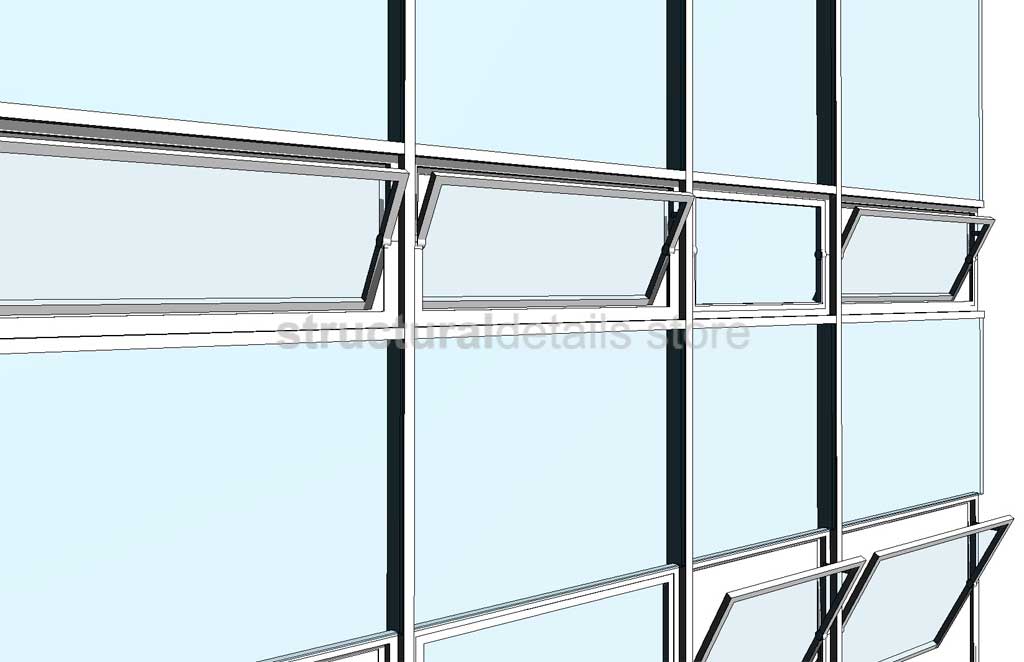

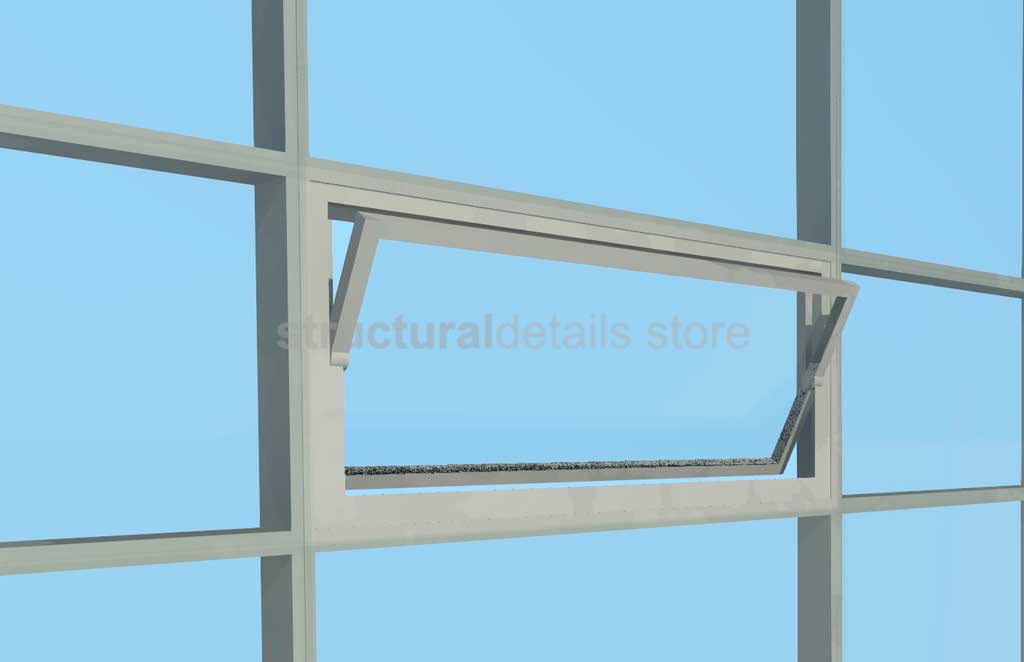

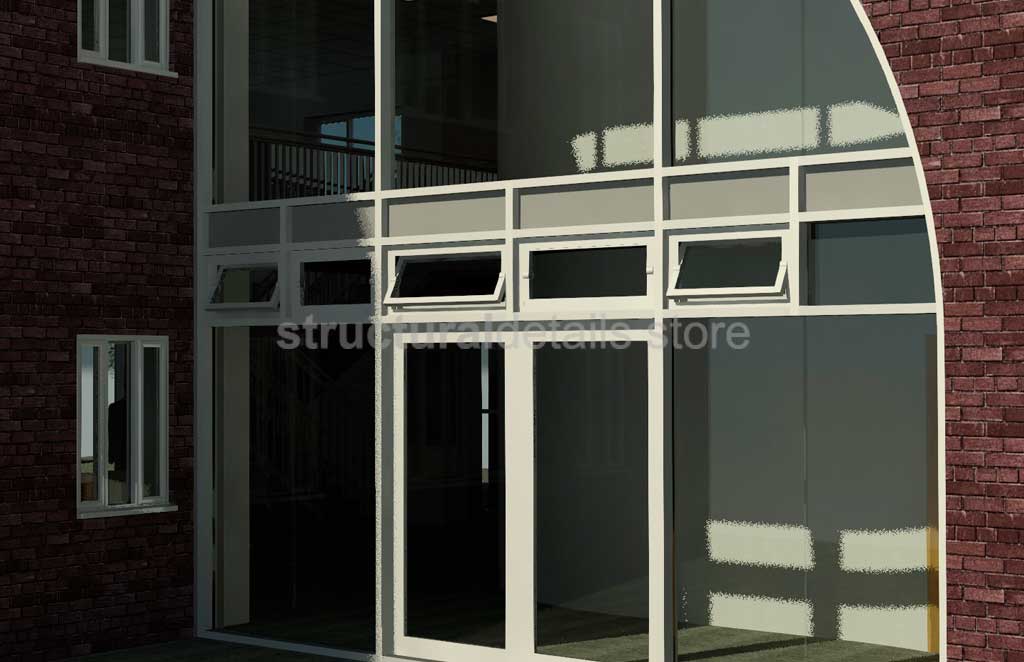

Fully Parametric Revit Family for a horizontal axis Pivot Window suitable for any curtain wall panel for building exterior glazing facades. Partially pivot opening window, 30degrees maximum opening with safety hinges.

Model is fully parametric, controlling all design aspects of the model to match any design requirement and automatically adjust to any curtain wall panel dimensions.

Instance parameter for graphical representation of window being closed or open together with all materials available as separate parameters

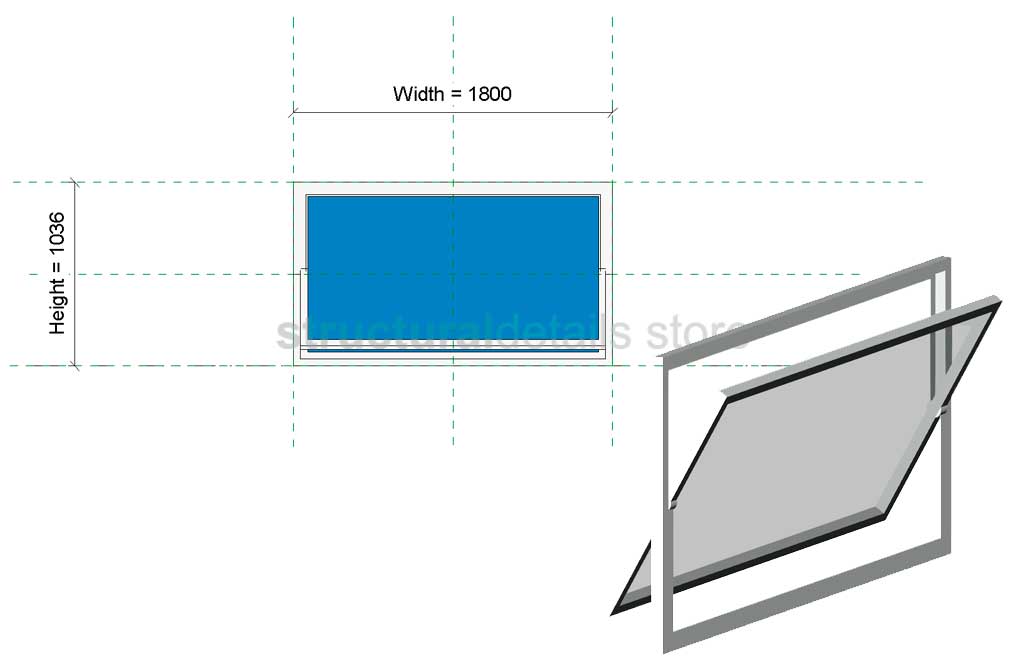

This is a curtain wall based family that can be placed on any curtain wall panel. Width and height are automatically inherited from the curtain wall panel size. Available parameters allow designers to adjust the offset from the curtain wall axis, as well as the window panel frame width and depth.

ATTRIBUTES: Revit Version : 2022, Family Type : Curtain Wall Panel Family, File Extension .rfa

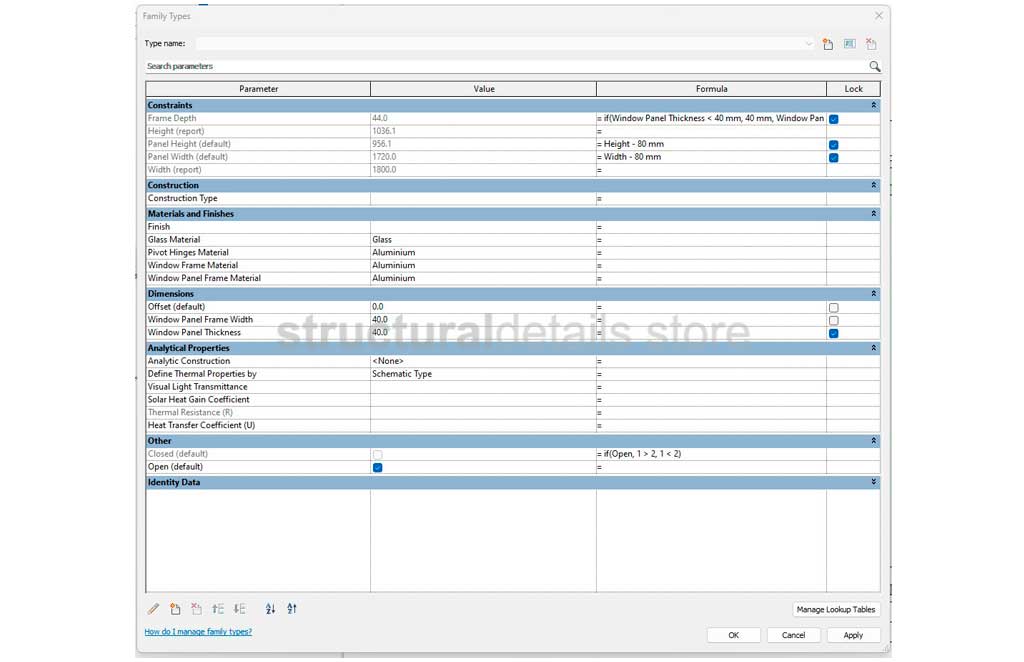

PARAMETERS:

  • Window Width and height are automatically inherited
  • Window Panel Frame Width and Depth
  • Window Setback
  • Open/Close Option ON/OFF
  • ALl materials are parametric
