Curtain Wall Automatic Single Sliding Door

Curtain Wall Automatic Single Sliding Door

€5,00 EUR
€5,00 EUR
Sale Sold out

PARAMETRIC REVIT FAMILY - DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

This is a revit family for a curtain wall panel automatic single sliding door . Family is fully parametric. Model can replace any curtain wall panel with a single automatic sliding door. Width and height of the door is automatically inherited from the curtain wall panel size. Single parameter to show the sliding door open or closed with any value between 0% and 100%.

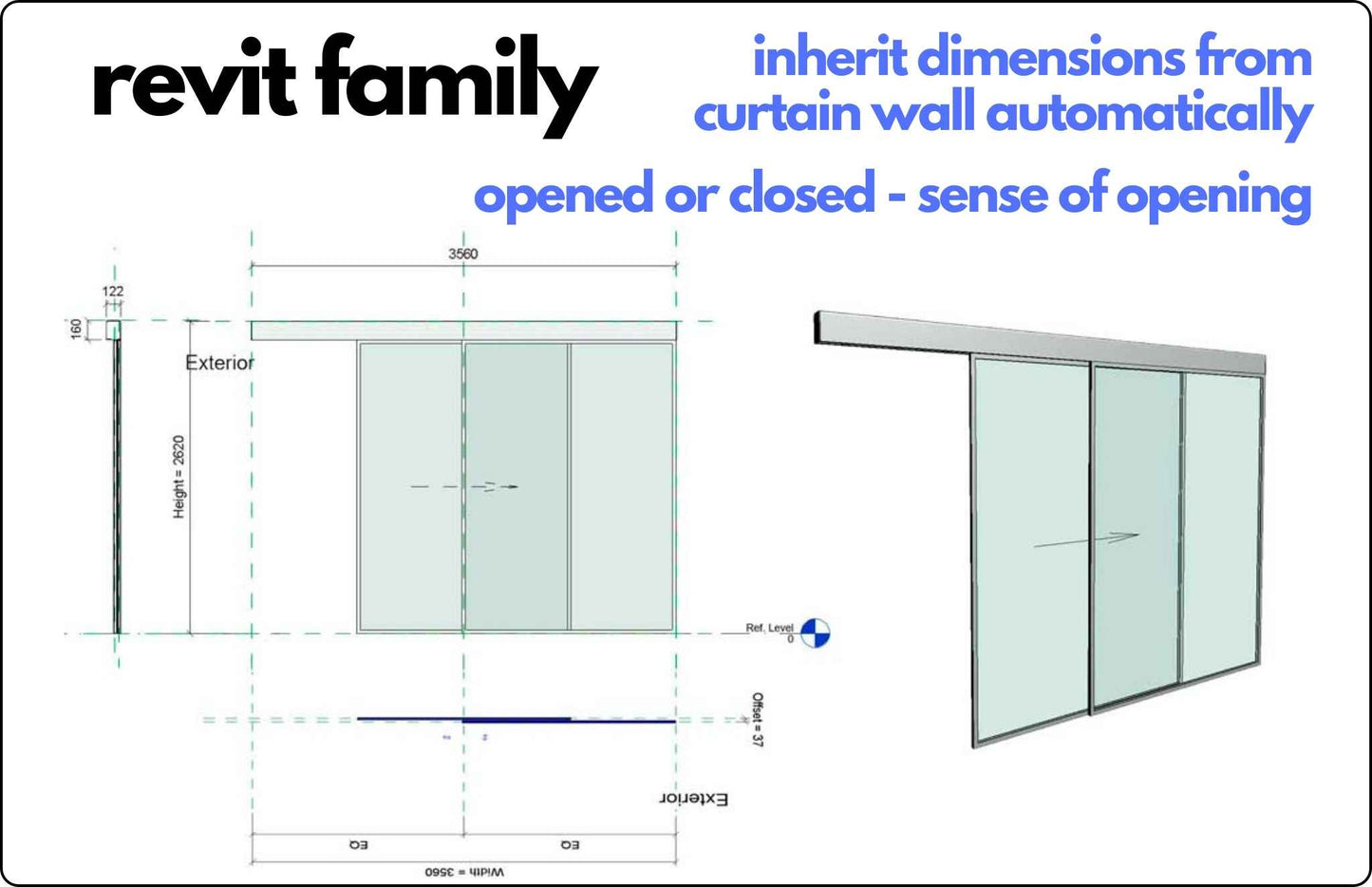

Model consists of a fixed glass glazing panel and a sliding door panel together with the top sliding mechanism.

Door automatic mechanism is placed directly under the horizontal curtain wall mullion support. If there is no mullion present, the family adjusts instantly to match the size of the curtain wall panel selected.

Fully Parametric

Almost all aspects of the model can be altered via the parameters available including materials. All parameters are automatically calculated and applied onto the family once replaced onto a curtain wall panel, making it a valuable family to have in your library, ready to be used with very little setting up. All family parameters are shown below.

Door size is inherited automatically by the curtain wall panel size. Family can be imported into any curtain wall panel ready to be used. Model can also be flipped between exterior and interior sides, as well as on the vertical axis, for correct placement according to any project needs.

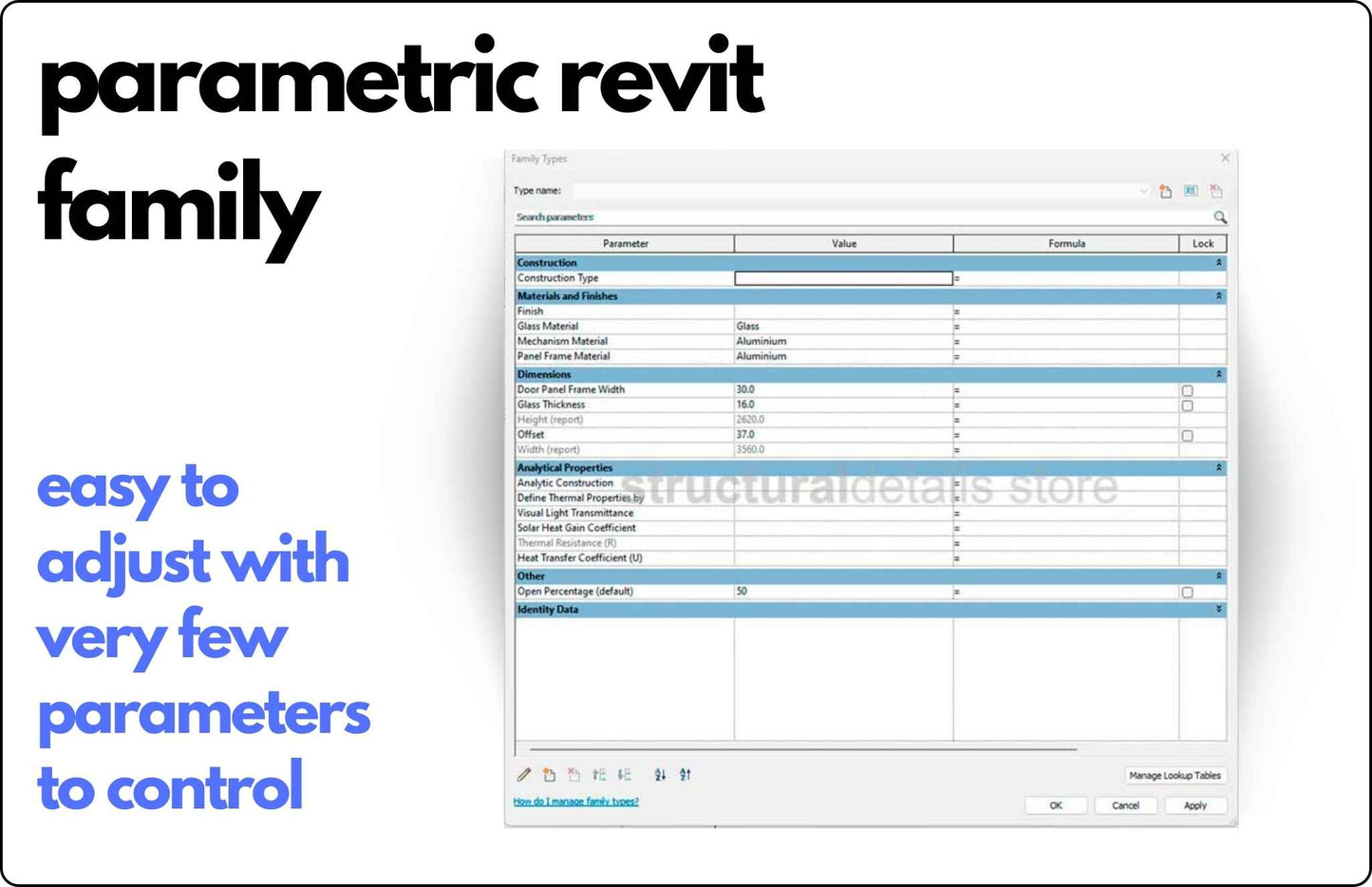

PARAMETERS

  • Width and height are automatically inherited by the curtain wall panel
  • Door Panel Frame Width
  • Glass Thickness
  • Offset from curtain wall centerline
  • Door open percentage
  • All materials ( glass, door frame, mechanism material )

ATTRIBUTES: Revit version : 2022, Family Type : Curtain Wall Panel, File Extension : .rfa
