C Shaped Shear Wall Column

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

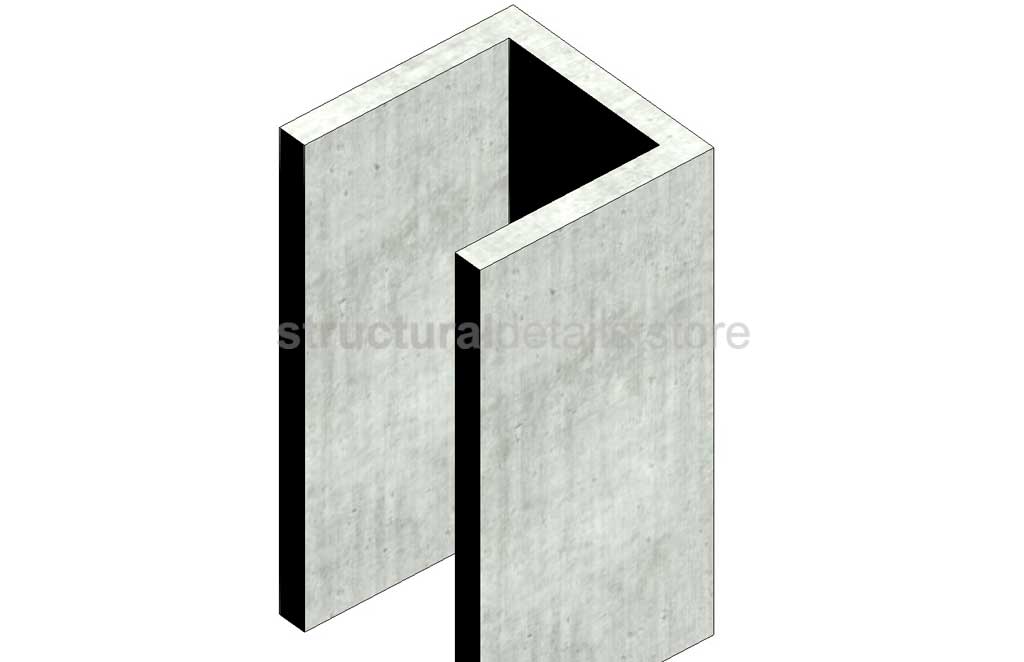

This is a fully parametric revit structural column family for a C Shaped Shear Wall Column or U Shaped. Column is fully parametric meaning user can change any dimension and adjust it to every project.

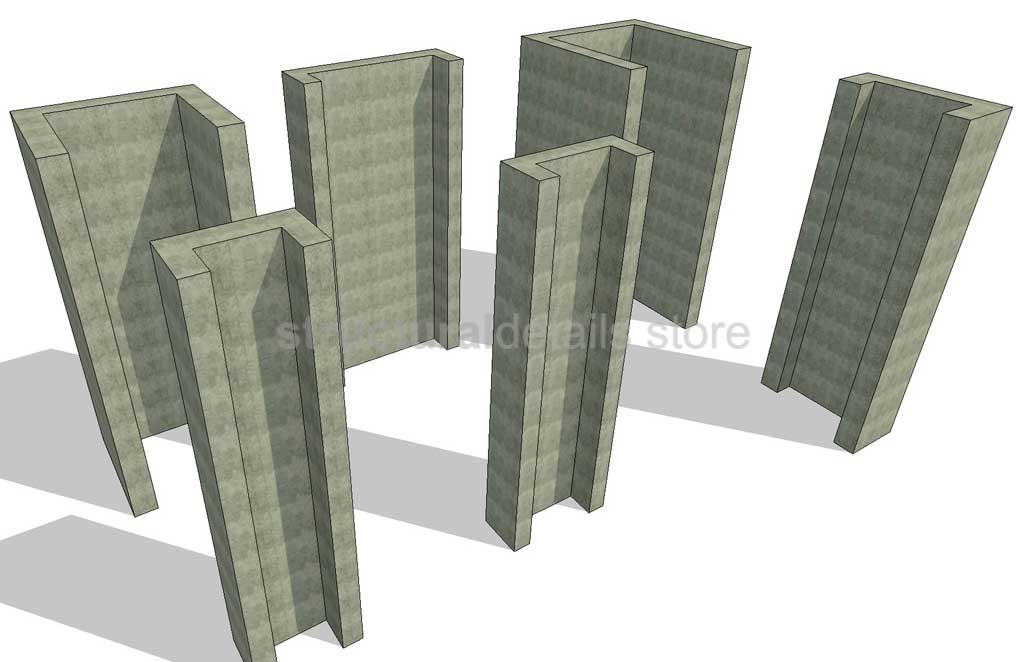

C Shaped Columns can be mainly used for elevator / lift shear wall concrete shafts, or for any other shaft slab opening. Consist of a main web shear wall and two sides flange members. Importing into any project is very easy and user can adjust the height of the column to span one or many levels as well as offset from reference levels.

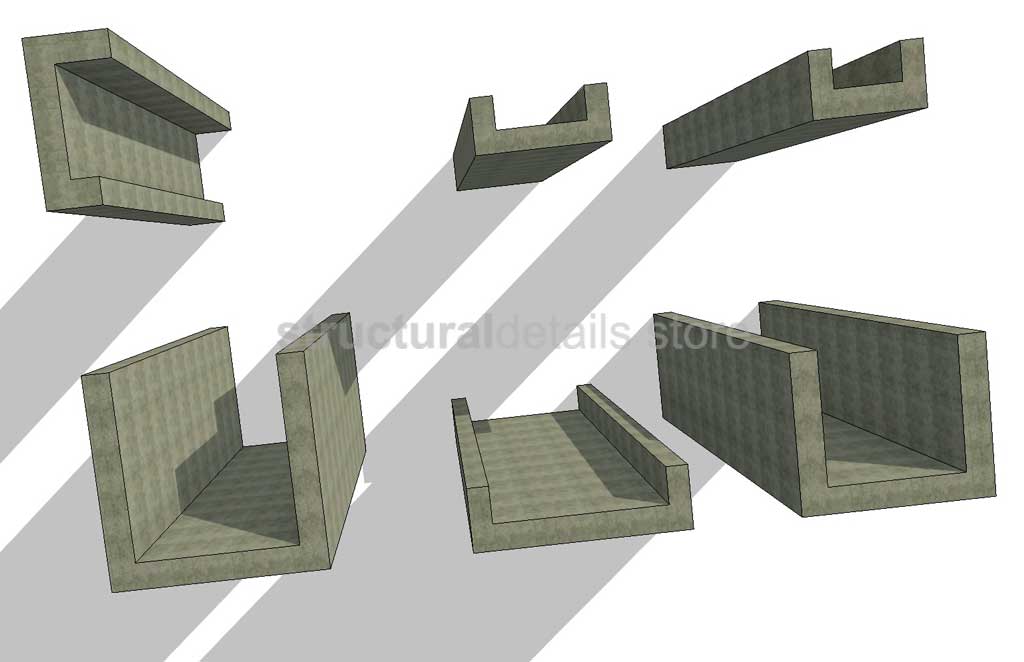

All 3 sides are parametric concerning their lengths and thickness. Family is rotatable and can also be flipped on both axis for correct placement in the project grid.

ATTRIBUTES: Revit Version 2022, Family Type : Structural Column, File Extension : .rfa

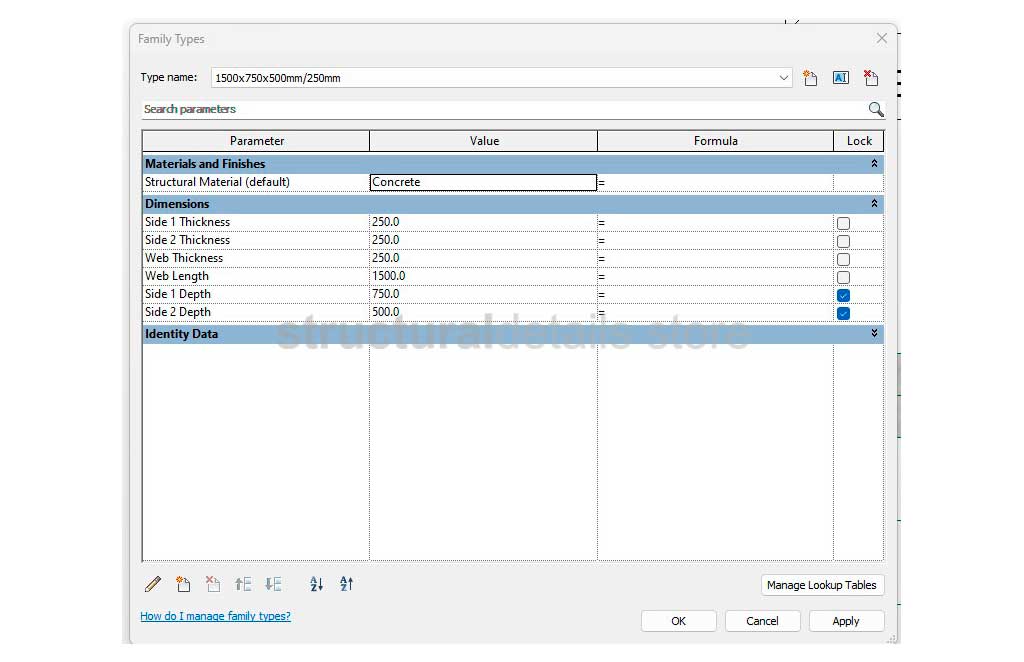

PARAMETERS:

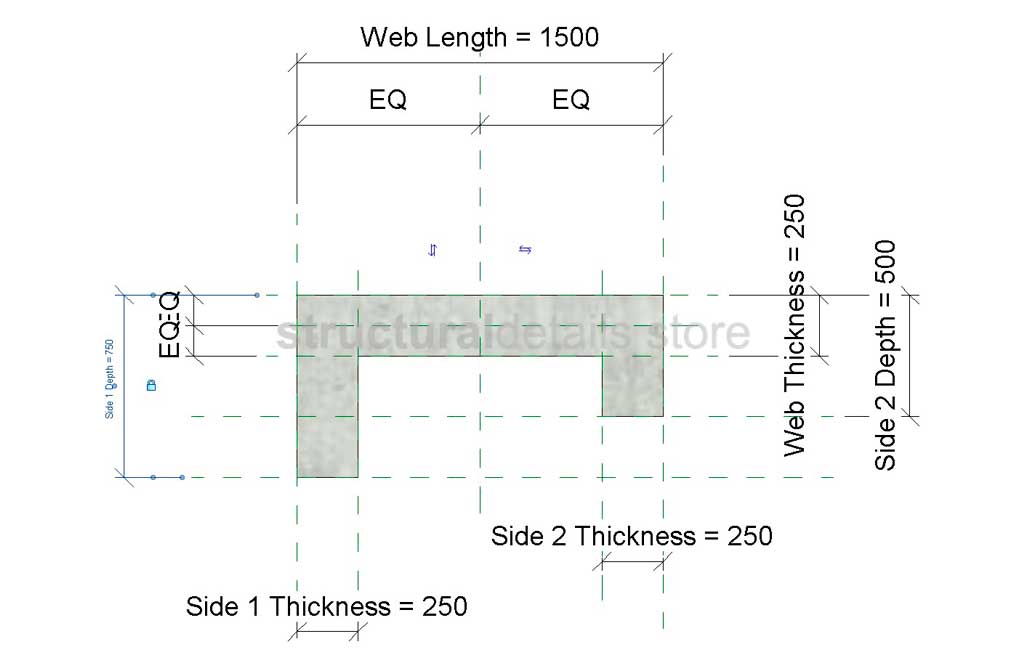

Web Length and Thickness
Side 1 Length and Thickness
Side 2 Length and Thickness
Parametric Material

FAMILY TYPES:

2000x2000x2000mm/250mm
1750x1500x1500mm/250mm
1000x600x600mm/250x200x200mm
2000x600x600mm/250x200x200mm
1200x500x500mm/200mm
1500x750x500mm/250mm

User can create unlimited number of various family types and dimensions.
