Bathroom Wall Towel Radiator Rail

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

Fully Parametric Revit Family model for a Wall based bathroom towel radiator rail heating element. Model can be placed onto any wall with full customizable parameters to match any design.

User can adjust radiator dimensions, height from floor, option to have a gap between rails, rails diameter and distance between them as well as the material of the rails. See below list of all adjustable parameters.

Model can be flipped on both axes and adjust distance from wall.

ATTRIBUTES: Revit Version : 2022, Family Type : Wall Based, File Extension : .rfa

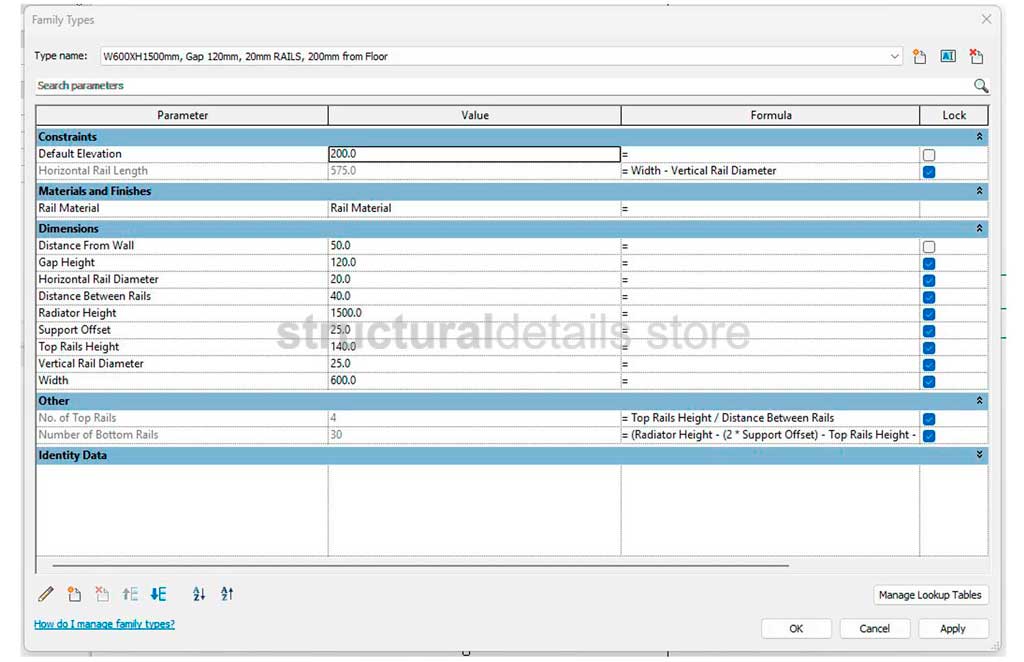

PARAMETERS:

• Radiator rail width and height
• Elevation from reference floor
• Vertical and horizontal rails diameter
• Supported distance from wall
• Wall Support top and bottom offset
• Rails Gap Height ( you can reduce the gap to 1mm for no gap option )
• Distance between rails
• Height of rails above the gap
• Rails material parameter
