Automatic Sliding Gate

Automatic Sliding Gate

€4,00 EUR
€4,00 EUR
Sale Sold out

PARAMETRIC REVIT FAMILY - DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

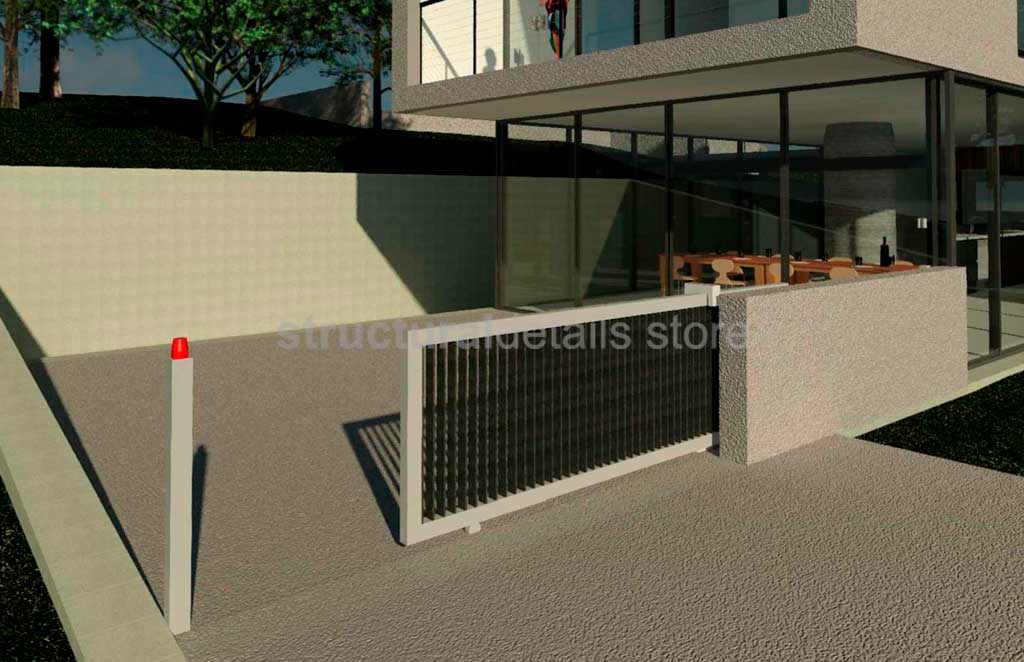

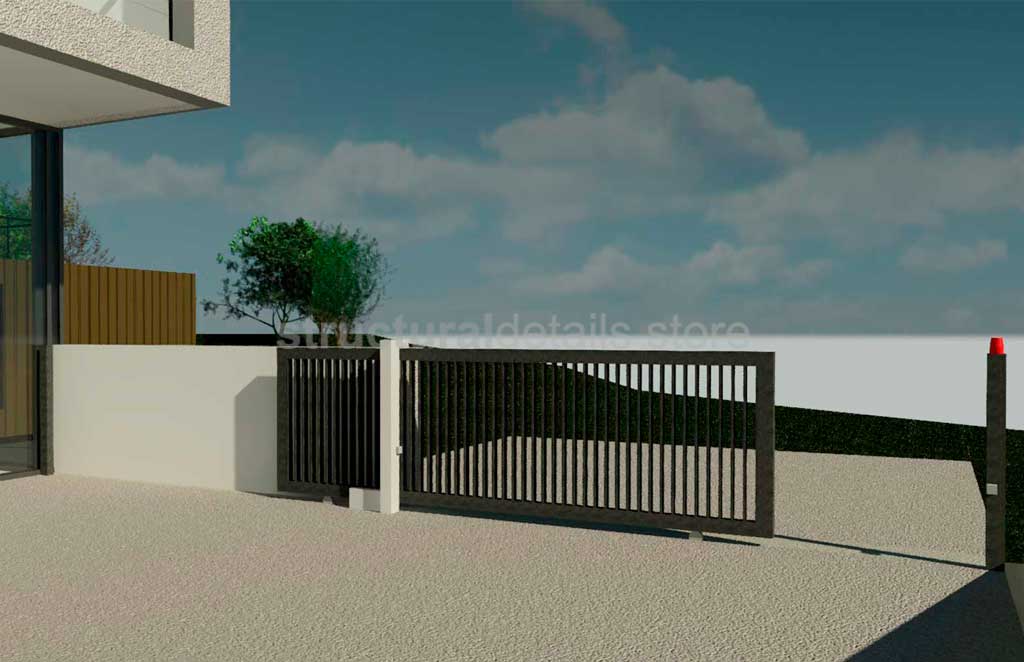

This is a Revit floor based family for an automatic sliding gate. Fully Parametric model.

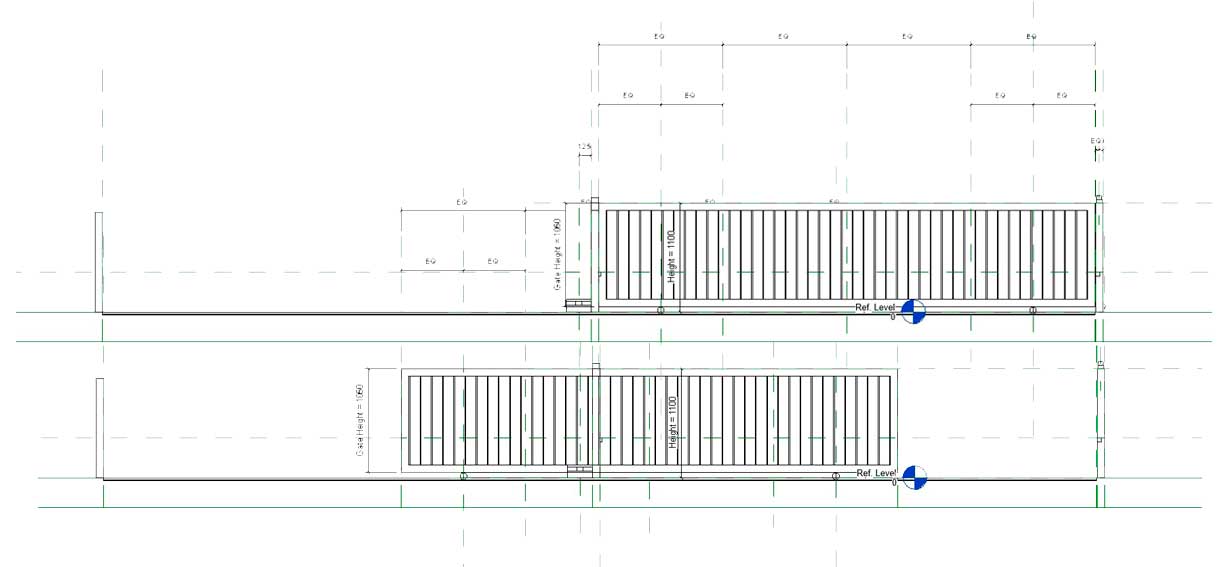

Model can be placed on any project onto an existing floor element, can be flipped both horizontally and vertically and adjust various model parameters to match the design needs for every project.

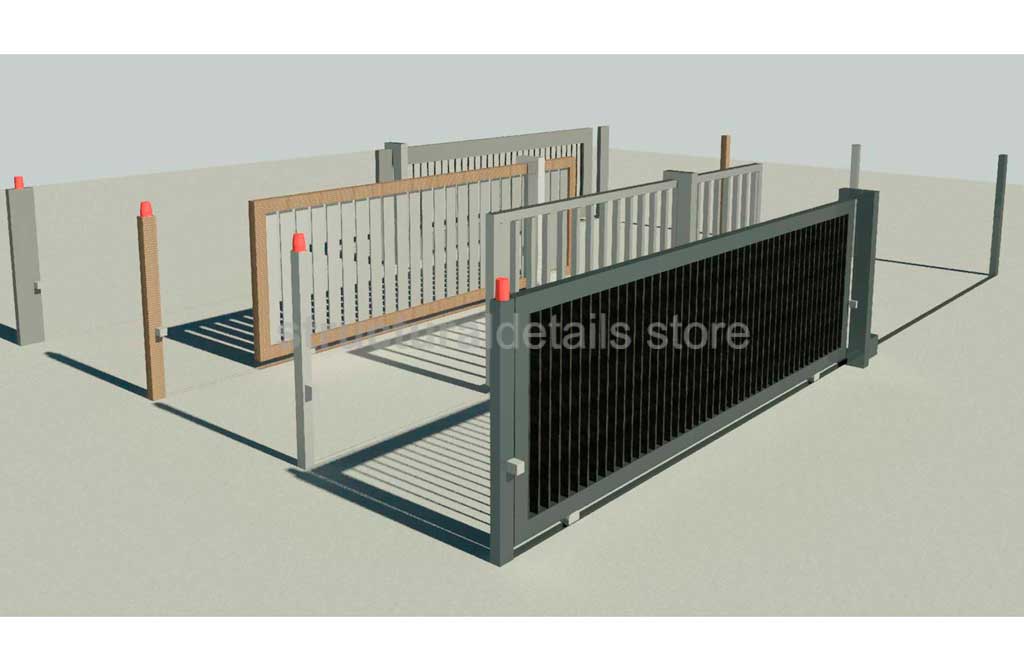

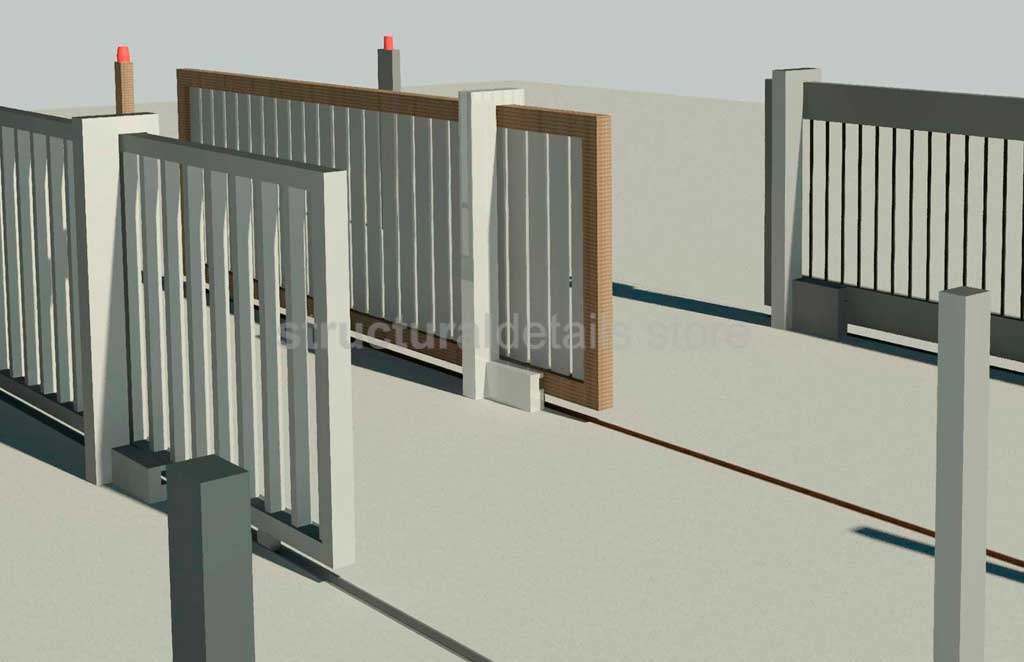

The model includes a gate main frame, vertical bars, floor rail cut into existing floor, start and end stopper posts, light beacon, support guide post and floor mechanism.

Fully Parametric

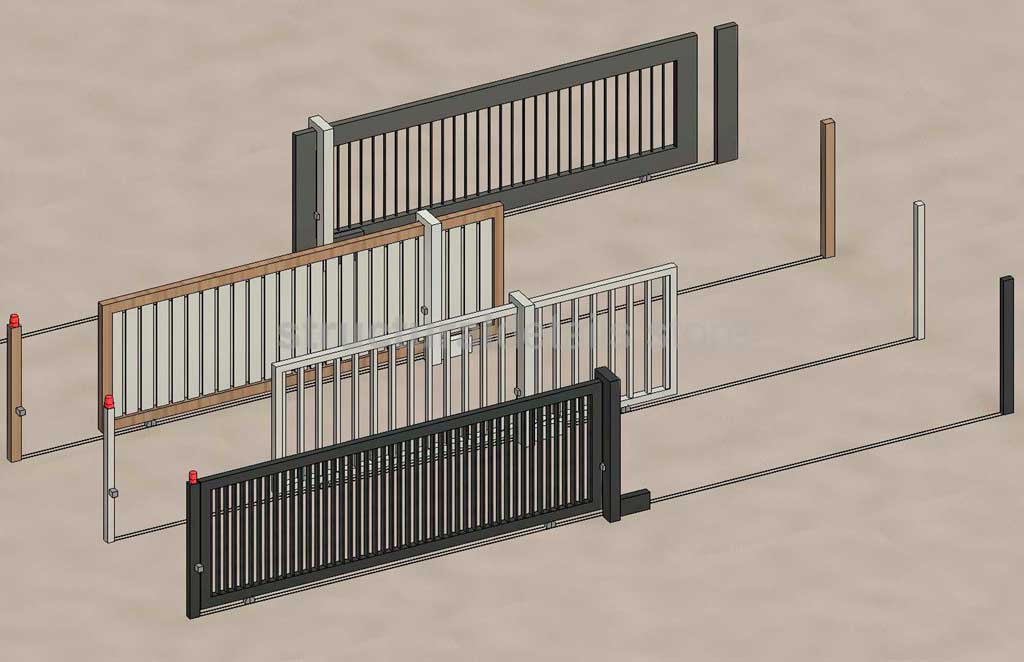

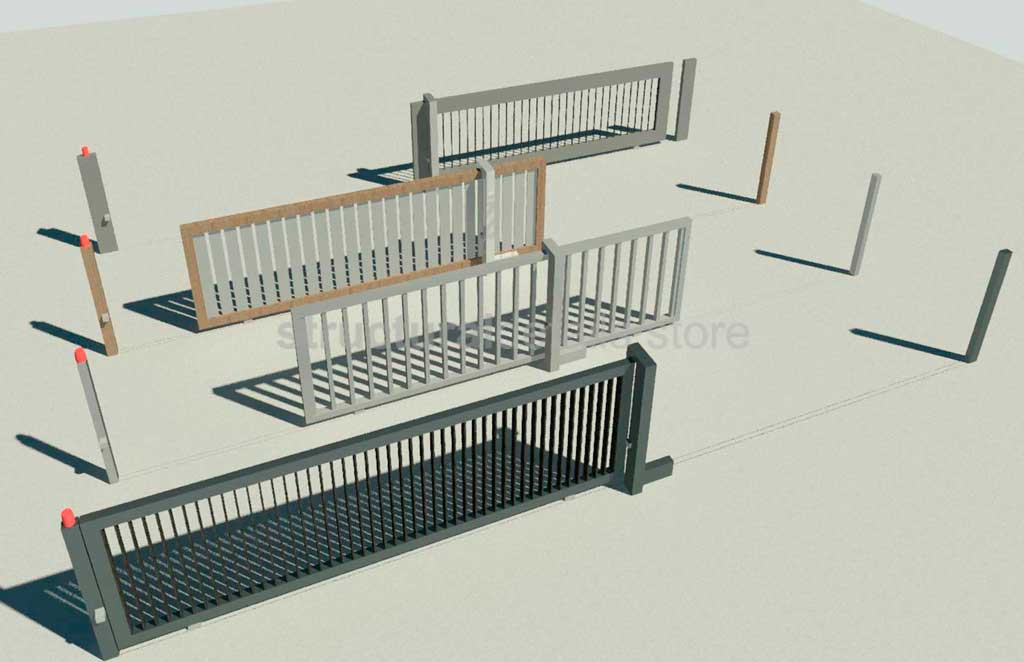

Gate profiles, dimensions and materials can be adjusted to match designs from steel, aluminium or even wooden automatic sliding gates. User can adjust the entrance opening length, gate height and bars gap and dimensions.

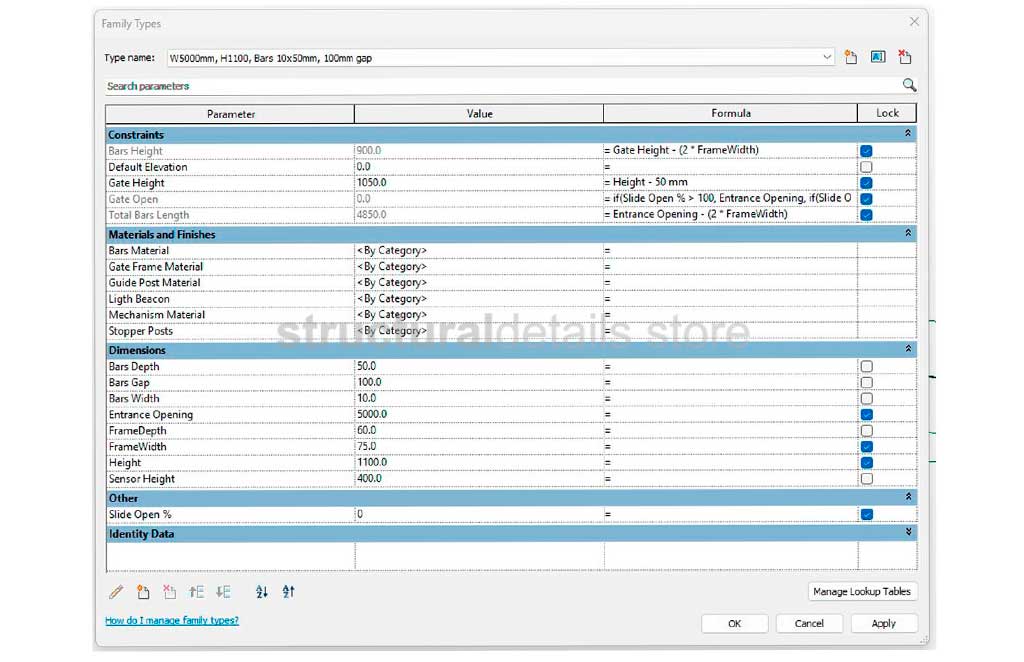

PARAMETERS

  • Entrance Opening Length
  • Gate Height
  • Gate Frame Width
  • Gate Frame Depth
  • Gate Bars width & depth
  • Gate Bars gap spacing
  • Sensor height
  • Materials ( gate frame, bars, guide post, mechanism, stopper posts, light beacon )

ATTRIBUTES: Revit Version 2022, Family Type: Floor Based, File Extension: .rfa
