3 Panel Balcony Sliding Door

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

REVIT version 2022 and up. Not compatible with older revit versions.

REVIT Family .rfa file

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

This is a wall based 3 Panel Sliding Balcony Aluminium External Door revit family, with panels sliding and the third side panel fixed. Fully Parametric.

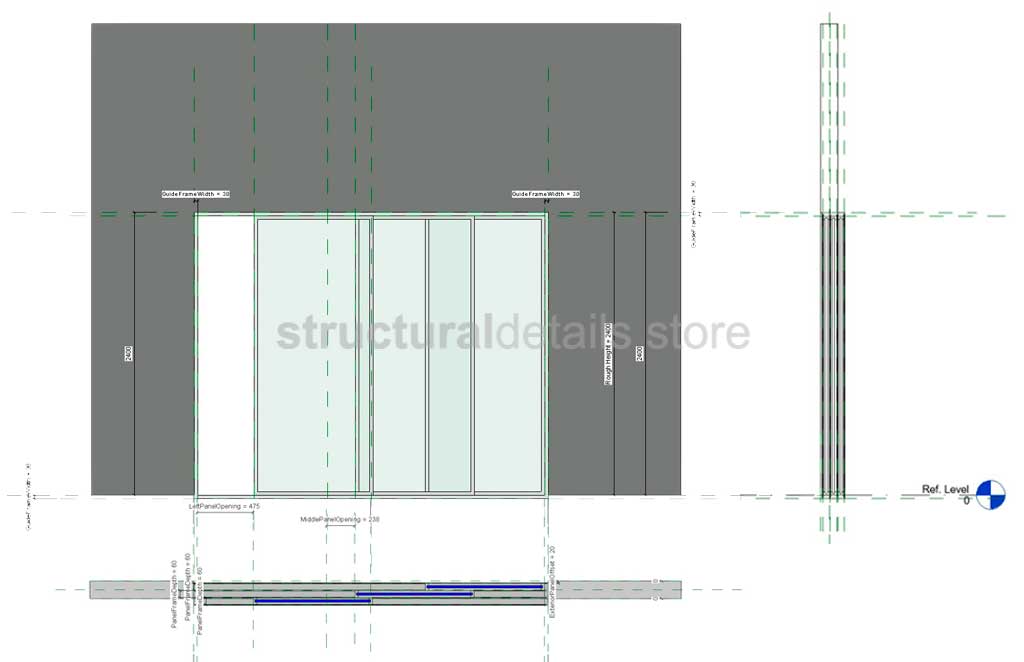

First and middle panels slide open ( one direction – but model can be flipped ) with parameter to control the graphical represantation. User can create family types controling the rough width and height, glass thickness, panel offset from wall, guide frame and panel frame width as well as the materials. Panels net width and height are calculated automatically from rough width and height and the frame width parameters. Panels frame depth also is calculated automatically from the glass thickness parameter. Bottom guide frame is embedded into the floor.

Attributes: Revit Version : 2022, Family Type : Door Wall Based, File Extension : .rfa

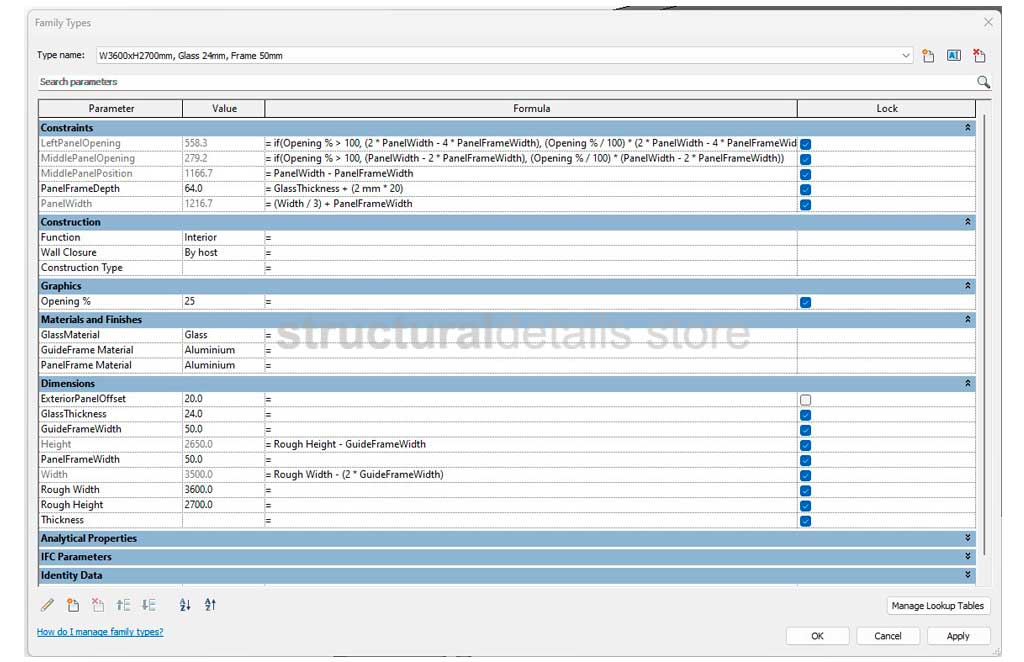

Parameters:

• Rough Width ( wall opening )
• Rough Height ( wall opening )
• Glass Thickness
• Panel offset from wall
• Guide Frame Width
• Panel frame width
• Two Panels Opening %
• Materials ( panel frame, guide frame, glass )
• Panel frame depth, panel width and height are calculated automatically
